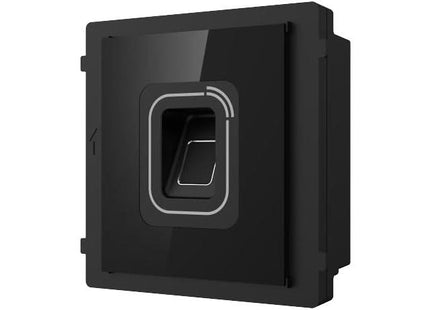

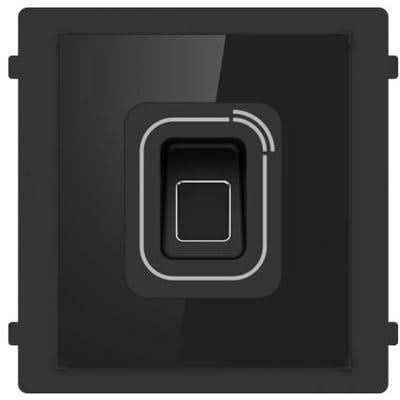

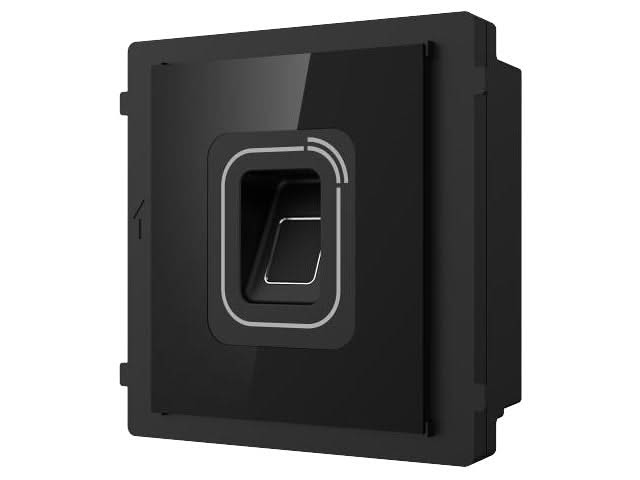

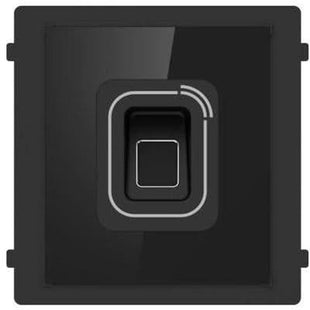

DS-KD-MFB, fingerprint and card reader module

Description

HikVision Video Intercom module, Sub-module fingerprint and card reader M1, Desfire card, powered via the main module, mounting accessories not included.

Can be installed with accessories (not included) in or surface-mounted, power supply via main module, RS485 communication, IP65

Specifications:

  • Capacity
  • Fingerprint capacity - 1000
  • Card capacity - 6000

    Authentication
  • Card reading frequency - 13.56 MHz
  • Card reading distance - 2 cm
  • Card type M1, Desfire card

    Device interfaces
  • DIP switch - 8 bits
  • RS-485 - 1

    General
  • Installation - Flush mounting, surface mounting
  • Protective level - IP65
  • Working temperature - -30 °C to 60 °C
  • Working humidity - 10% to 90% (no-condensing)

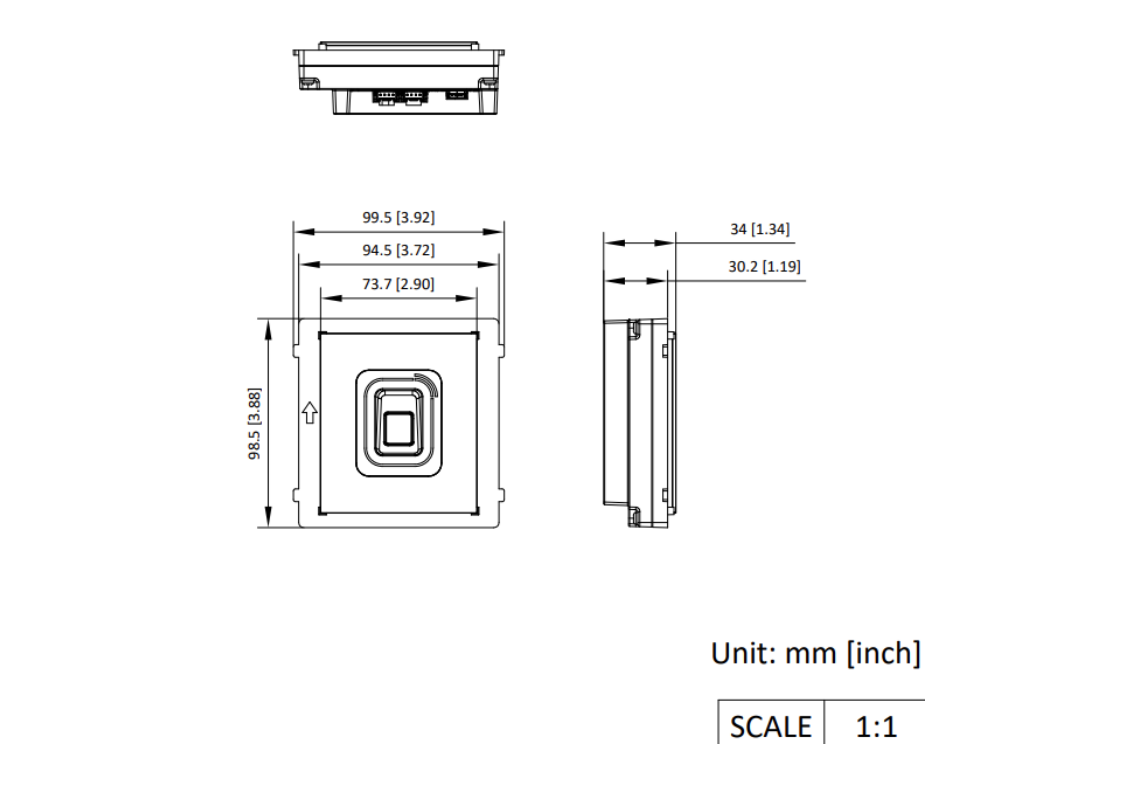

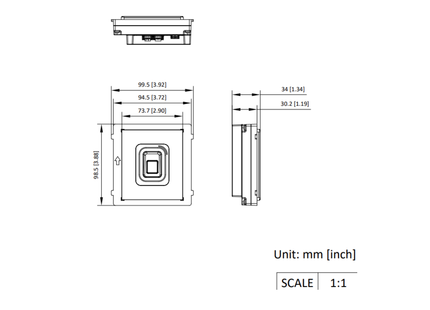

  • Dimension  - (W × H × D) 100 mm × 100 mm × 35 mm (3.94" × 3.94" × 1.38")
  • Power supply - 12 VDC, supplied by the main module
  • Power consumption - ≤ 4 W

DS-KD-MFB, fingerprint and card reader module

Product form

In stock, delivery time 1 to 3 working days

€198,00 Incl. VAT

      • Free shipping from €99
      • Free returns within 30 days

      Description

      HikVision Video Intercom module, Sub-module fingerprint and card reader M1, Desfire card, powered via the main module, mounting accessories not included.

      Can be installed with accessories (not included) in or surface-mounted, power supply via main module, RS485 communication, IP65

      Specifications:

      • Capacity
      • Fingerprint capacity - 1000
      • Card capacity - 6000

        Authentication
      • Card reading frequency - 13.56 MHz
      • Card reading distance - 2 cm
      • Card type M1, Desfire card

        Device interfaces
      • DIP switch - 8 bits
      • RS-485 - 1

        General
      • Installation - Flush mounting, surface mounting
      • Protective level - IP65
      • Working temperature - -30 °C to 60 °C
      • Working humidity - 10% to 90% (no-condensing)
      • Dimension  - (W × H × D) 100 mm × 100 mm × 35 mm (3.94" × 3.94" × 1.38")
      • Power supply - 12 VDC, supplied by the main module
      • Power consumption - ≤ 4 W
