Description
The indoor units can only display locally connected cameras on the screen, there is no functionality to display images via Hik-Connect on an indoor unit that is connected stand-alone.

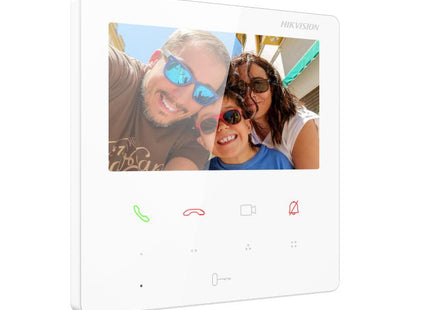

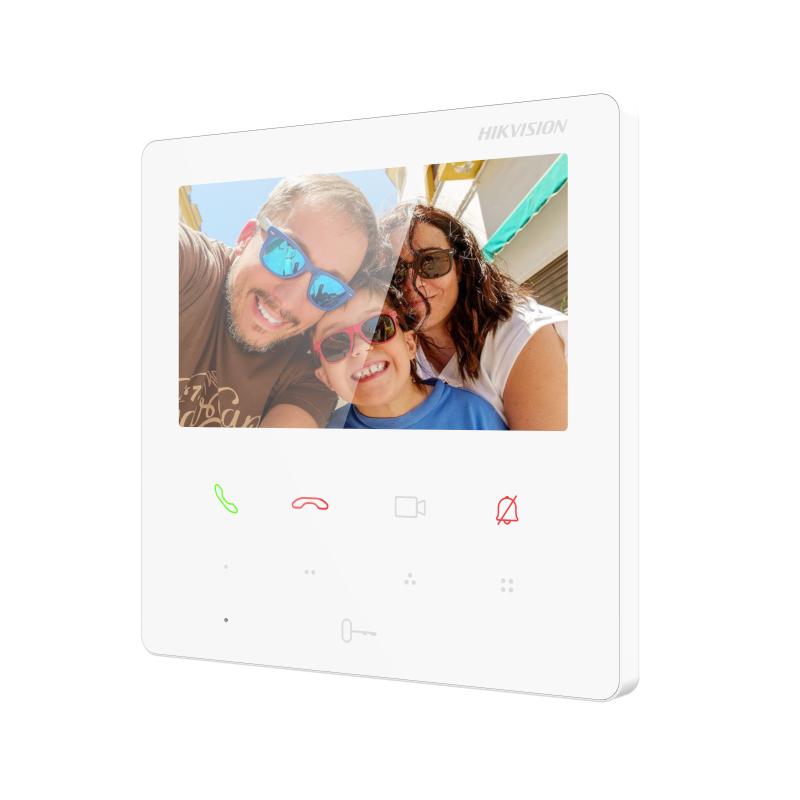

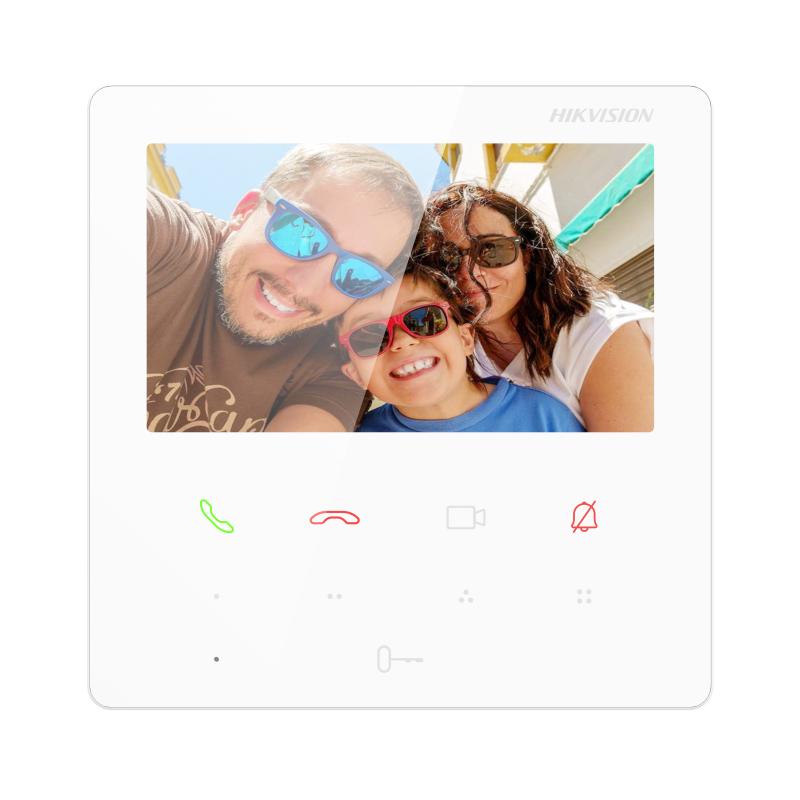

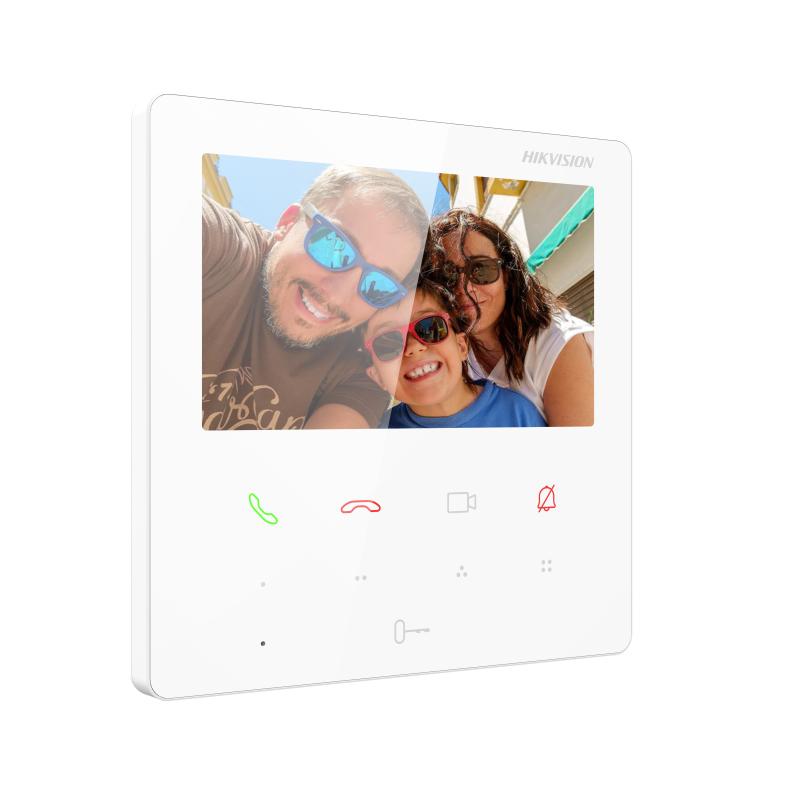

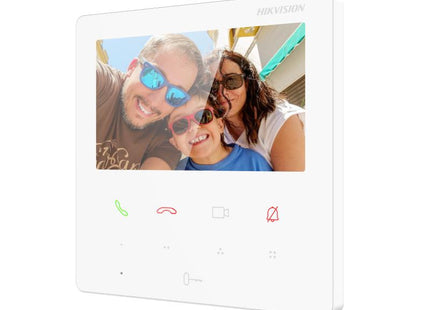

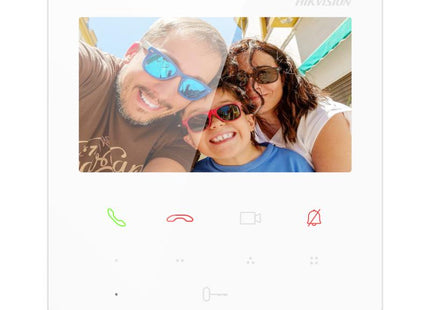

DS-KH6110-WE1 Indoor unit with 4.3 inch screen PoE/12v WiFi is a white small model indoor unit with WiFi.
This new Hikvision DS-KH6110-WE1 intercom screen can be connected to all Hikvision IP doorbells of the 2nd generation. This can be connected via PoE to a PoE switch or via WiFi using an optional (see related products) 12 volt adapter.
KH6 series IP-based indoor station with easy and fast installation: user-friendly design.
4.3-inch colorful touchscreen with 480×272 resolution.
Standard PoE power supply without additional power adapter
Convenient Hik-Connect APP Mobile control
View live videos from door stations and linked cameras
Convenient for users to customize functions according to their own usage habits with 4 custom touch buttons
Specifications:
- System parameters
- Operating system - Linux
- ROM - 16MB
- RAM memory - 128 MB
- CPU - Built-in processor
Display parameters
- Screen size - 4.3 inches
- Control method - Capacitive touchscreen with 9 touch buttons
- Type - Colorful TFT
- Resolution - 480×272
Audio parameters
- Audio compression standard - G.711 U, G.711 A
- Audio input - Built-in omnidirectional microphone
- Audio output - Built-in speaker
- Audio compression bit rate - 64 Kbps
- Audio quality - Noise reduction and echo cancellation
- Volume control - Adjustable
Network parameters
- Communication protocol - TCP/IP, SIP, RTSP
- Wi-Fi standard - Wi-Fi 802.11 b/g/n, 2.4 GHz
Device interfaces
- Network interface - 1 RJ-45 100 Mbps
General
- Buttons - 9 touch buttons
- Installation - Wall mounting, table mounting
- Weight - With packaging: 336.6 g (0.7 lbs) Without packaging: 197.8 g (0.4 lbs)
- Operating temperature - -10°C to 50°C (14°F to 122°F)
- Operating Humidity - 10% to 90%

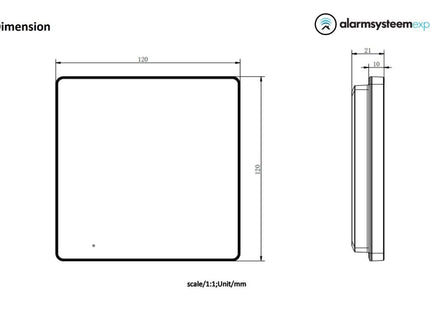

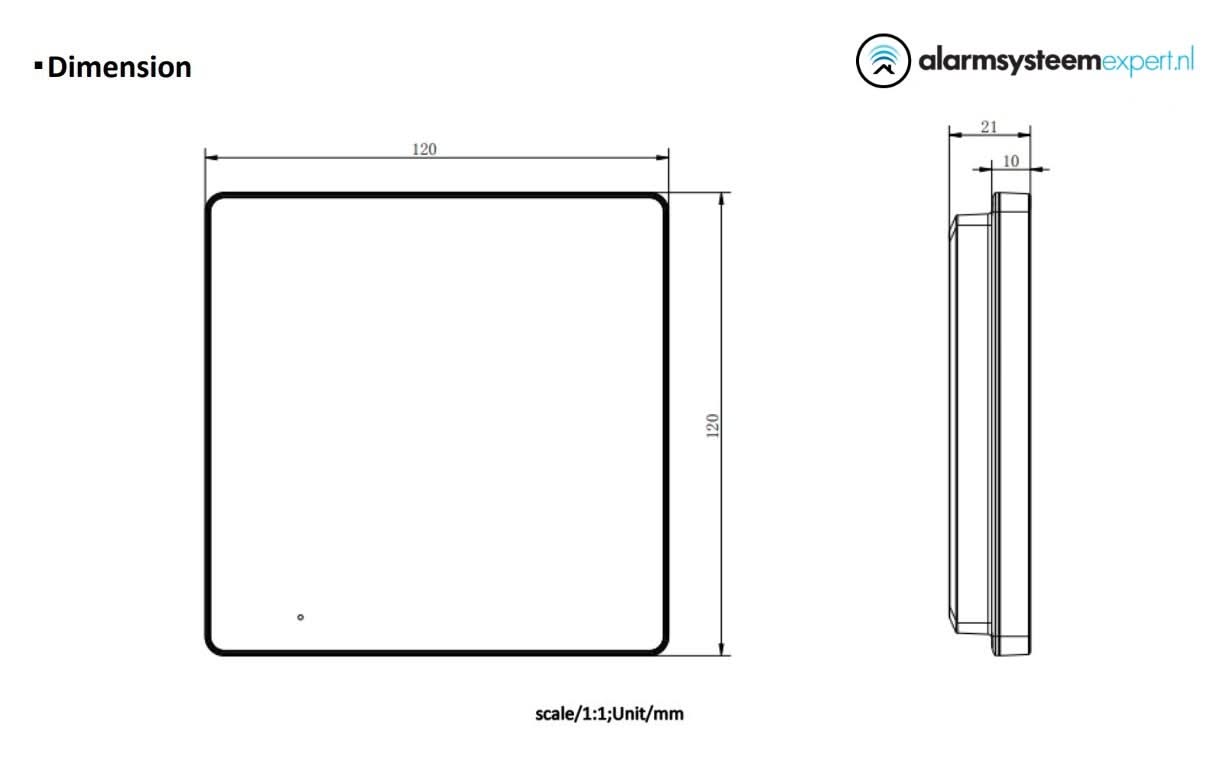

- Dimensions - 120mm × 120mm × 21mm (4.7" × 4.7" × 0.83")
- Application environment - Indoor
- Power consumption - ≤ 4 W
