Description

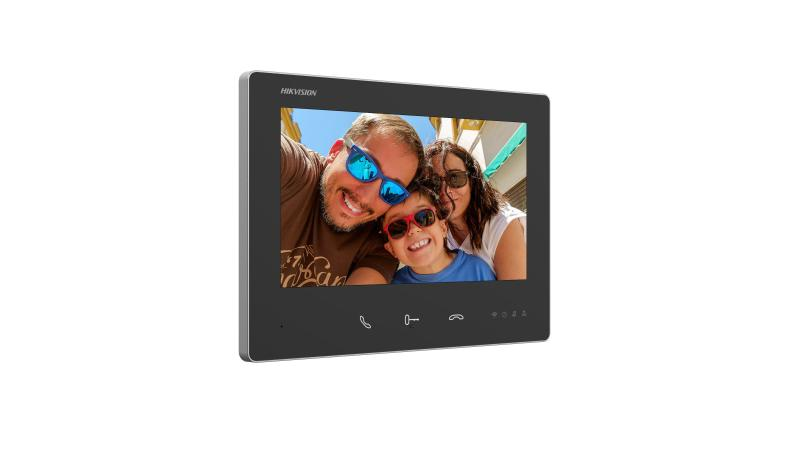

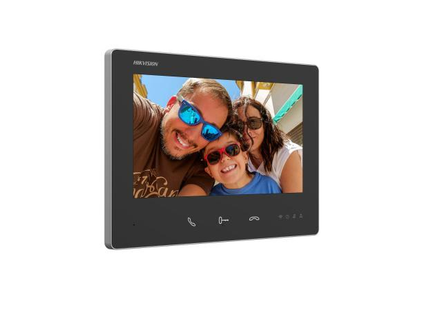

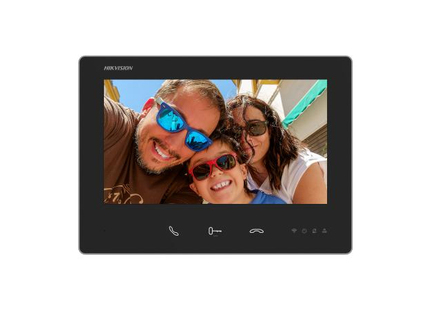

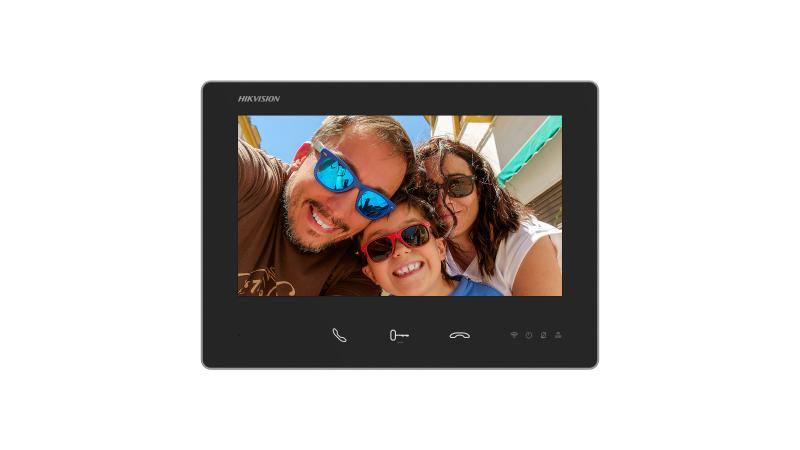

The Hikvision DS-KH7300EY-WTE2 is a two-wire video intercom indoor unit/screen, 7 inch touchscreen with 1024 x 600px resolution. The unit is equipped with a speaker and microphone so that two-way communication can be achieved.
Device must be powered by a Hikvision distribution unit. The screen consumes a maximum of 5W.
The indoor unit can be connected to a network via Wi-Fi or 802.11b/g/n.
Built-in micro SD slot (max 128GB) available for data storage/saving the images. Optionally, two electronically controlled locks can be opened via the display.
Specifications:
- Operating System - Embedded Linux operating system
- ROM - 32MB
- RAM - 128MB
- CPU - Built-in processor
Display parameters
- Screen size - 7 inches
- Way of trading - Capacitive touchscreen
- Type - Colorful TFT screen
- Resolution - 1024×600
Audio parameters
- Audio compression standard - G.711 U G.711 A
- Audio input - 1 Built-in omnidirectional microphone
- Audio output - 1 Built-in speaker
- Audio compression bit rate - 64 Kps
- Sound quality - Noise reduction and echo cancellation
- Volume Adjustment - Adjustable
Capacity
- Event capacity - 200 photos taken (with TF card)
- Capacity of linked indoor extensions - 3
Network parameters
- Communication protocol - TCP/IP, RTSP
- Wi-Fi standard - 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
Device interfaces
- Alarm input - 1
- TF Card - Max. up to 128G, SD 2.0 or lower version
- DIP Switch - 5 decimal DIP switches and 4 binary DIP switches
- Power input - 48V, powered by DS-KAD7060EY or DS-KAD7061EY
- Two-wire - IP interface 2, 1 for input 1 for output
General
- Button - 3 touch buttons (answer, unlock, hang up) + 1 physical button (reset)
- Installation - Attachment to a surface
- Indicator - 4 (Wifi, Power, Mute, In Use)
- Operating temperature - -10°C to 50°C (14°F to 122°F)
- Working humidity - 10% to 90% (no condensation)
- Dimensions - 190.2 mm × 138.2 mm × 20 mm (7.5" × 5.4" × 0.8")
- Power supply - 48V, powered by DS-KAD7060EY or DS-KAD7061EY
- Application Environment - Indoor
- Power consumption- ≤ 5W (standby ≤ 1.2 W)
