DS-KV6113-WPE1
- Standard PoE
- Card reader - Mifare format
- 2 MP Full HD camera
- FOV 129° horizontal
- Noise reduction including echo filtering
- Support audio (built-in microphone and speaker)
- Weatherproof according to IP65
- 4x Alarm input
- Configuration via internet possible
- WIFI & LAN connection
- 1 bell push
- 8x alarm input and 2x alarm output
- Built-in relay for opening door or gate
- Dimensions: 139 (high) x 65 (wide) x 30 mm (deep)
Product Info
DS-KH6320-WTE White
- 7-inch TFT LCD screen
- Image resolution of 1024x600
- Touchscreen operation
- Network connection via LAN 10/100Mbps
- RJ45 connector at the bottom of the back
- Standard Wi-Fi 802.11b/g/n (Wi-Fi quality is local dependent)
- Built-in microphone and speaker
- Audio with noise reduction and echo filtering
- Power supply via PoE (IEEE802.3af)/12V DC
- SD card is supported up to 32GB
- 8x alarm input and 2x alarm output
- Dimensions: 140mm (high) x 200mm (wide) x 15.1mm (deep)
Product Info

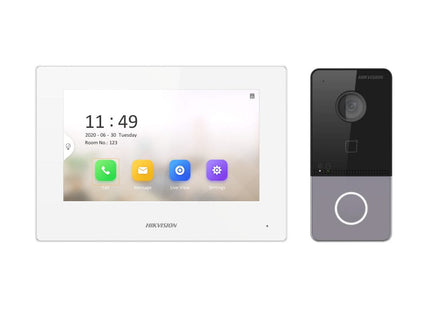

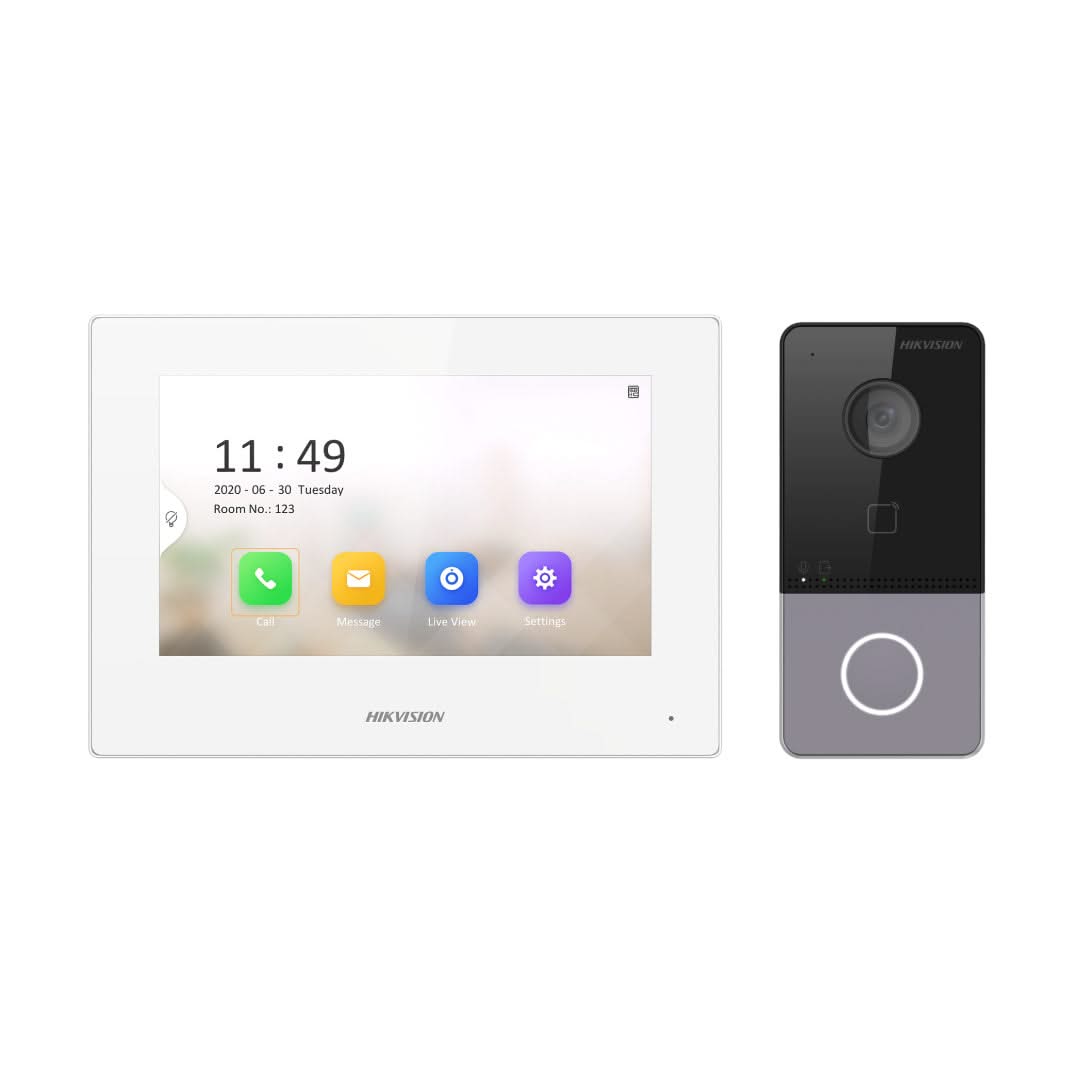

DS-KIS603-P(B)
This one intercom set consists of the 1-press Hikvision outpost that is equipped with WiFi and Ethernet connection which can power the module via PoE. An electric door opener can also be connected to the outdoor station.
The outdoor station has a 2MP camera with wide-angle lens and True WDR.
In addition to the intercom, the indoor unit also has the option to view other Hikvision IP cameras when they are connected to the same network.
Switch
For a stable connection, this kit can also be connected wired via PoE. Then you could order the following switch;
POE Switch
