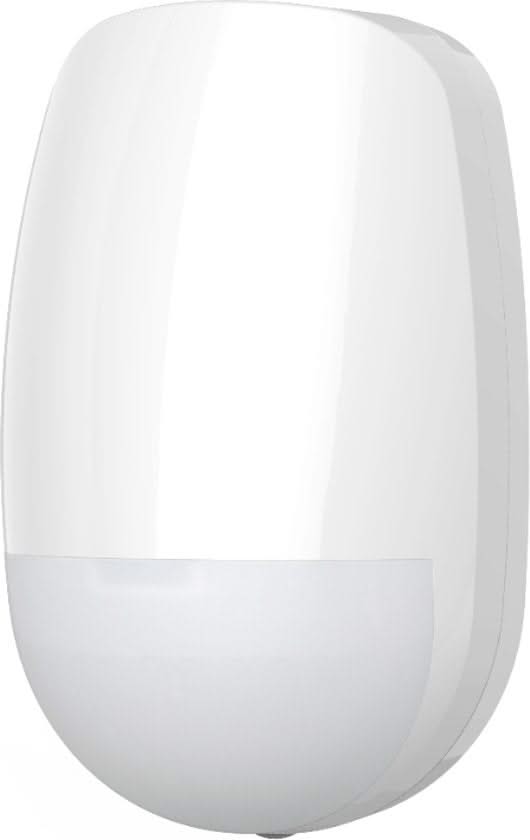

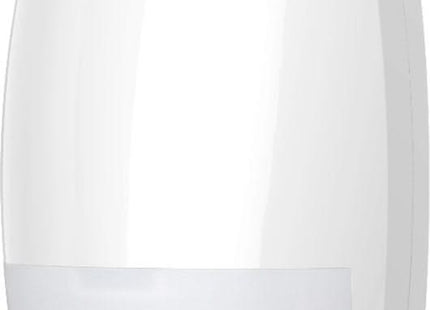

DS-PDD12-EG2, wired Dual Tech detector

Description

Hikvision DS-PDD12-EG2, wired Dual Tech detector

  • Detection range: 12m / 85.9°
  • Up to 10 kg pey immunity within 10 m
  • Optional/Automatic sensitivity
  • Digital temperature compensation
  • 52 zones of 3D optics including creep zone protection, full coverage without blind spot
  • selectable EOL resistors for alarm and tamper proof wiring
  • Sealed optics that prevent interference from insects
  • 24 Ghz microwave
  • Global certifications available (EN Grade2/CE/FCC/CB/CCC/IC/RCM)
  • 9 to 16 V wide voltage adjustment with reverse polarity protection
  • Wall/ceiling mounting brackets available (sold separately)
  • IFT technology prevents false alarms

Detection performance

  • Detection range 12m
  • Detection angle 85,9°
  • Speed range 0.3 to 2 m/s
  • Sensitivity setting High, Auto, Low
  • Pet immunity Up to 10 kg (with optional pet mask)
  • Support for digital temperature compensation
  • Support for creep zone protection
  • White light filter 6500 lux
  • Microwave frequency 24 Ghz (24.15 Ghz to 24.25 Ghz)

Software features

  • Sealed optical support
  • Fraud-resistant front

Hardware features

  • Indicator: Green (PIR) Orange (Microwave) Blue (Alarm)

Electrical characteristics

  • Nutrition 9 to 16 VDC
  • Power consumption 17mA Max
  • Typical voltage standard : 12 VDC

General

  • Application scenario Inside
  • Dimensions (WxHxD) 65.7mm (2.59") × 103.8mm (4.09") × 45.5mm (1.79")
  • 99g (3.5oz)
  • Storage temperature -20°C to 60°C (-4°F to 140°F)
  • Operating temperature -10°C to 55°C (14°F to 131°F)
  • Operating humidity 10% to 90%
  • Installation height 1.8m to 2.4m
  • Installation method Wall mounting or Ceiling mounting
  • Bracket Optional wall and ceiling accessory
  • Color White

DS-PDD12-EG2, wired Dual Tech detector

Product form

In stock, delivery time 1 to 3 working days

€59,00 €46,00 Incl. VAT

      • Free shipping from €99
      • Free returns within 30 days

      Description

      Hikvision DS-PDD12-EG2, wired Dual Tech detector

      • Detection range: 12m / 85.9°
      • Up to 10 kg pey immunity within 10 m
      • Optional/Automatic sensitivity
      • Digital temperature compensation
      • 52 zones of 3D optics including creep zone protection, full coverage without blind spot
      • selectable EOL resistors for alarm and tamper proof wiring
      • Sealed optics that prevent interference from insects
      • 24 Ghz microwave
      • Global certifications available (EN Grade2/CE/FCC/CB/CCC/IC/RCM)
      • 9 to 16 V wide voltage adjustment with reverse polarity protection
      • Wall/ceiling mounting brackets available (sold separately)
      • IFT technology prevents false alarms

      Detection performance

      • Detection range 12m
      • Detection angle 85,9°
      • Speed range 0.3 to 2 m/s
      • Sensitivity setting High, Auto, Low
      • Pet immunity Up to 10 kg (with optional pet mask)
      • Support for digital temperature compensation
      • Support for creep zone protection
      • White light filter 6500 lux
      • Microwave frequency 24 Ghz (24.15 Ghz to 24.25 Ghz)

      Software features

      • Sealed optical support
      • Fraud-resistant front

      Hardware features

      • Indicator: Green (PIR) Orange (Microwave) Blue (Alarm)

      Electrical characteristics

      • Nutrition 9 to 16 VDC
      • Power consumption 17mA Max
      • Typical voltage standard : 12 VDC

      General

      • Application scenario Inside
      • Dimensions (WxHxD) 65.7mm (2.59") × 103.8mm (4.09") × 45.5mm (1.79")
      • 99g (3.5oz)
      • Storage temperature -20°C to 60°C (-4°F to 140°F)
      • Operating temperature -10°C to 55°C (14°F to 131°F)
      • Operating humidity 10% to 90%
      • Installation height 1.8m to 2.4m
      • Installation method Wall mounting or Ceiling mounting
      • Bracket Optional wall and ceiling accessory
      • Color White
