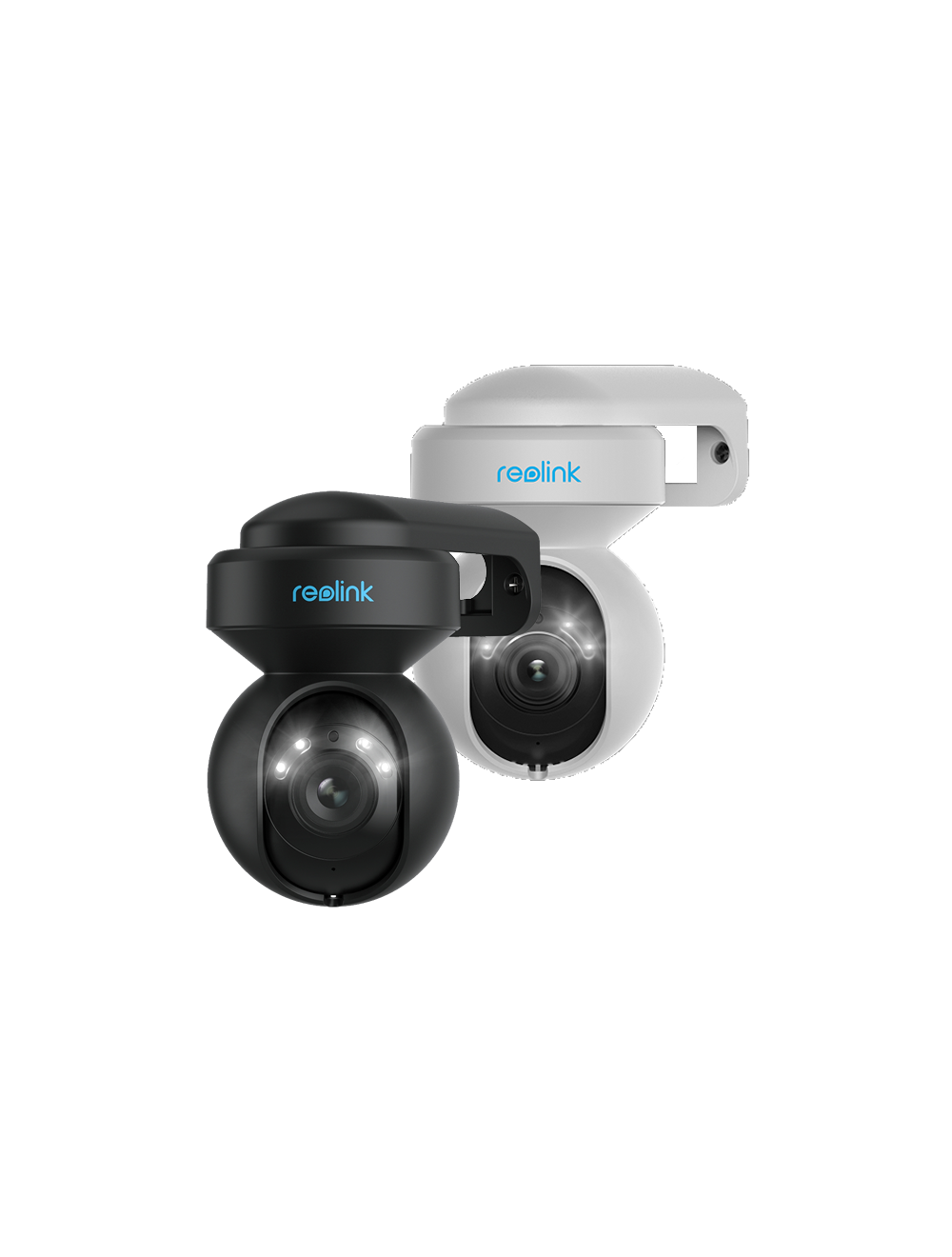

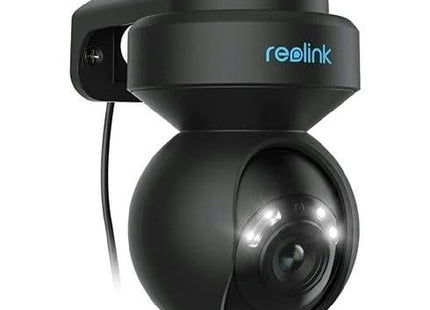

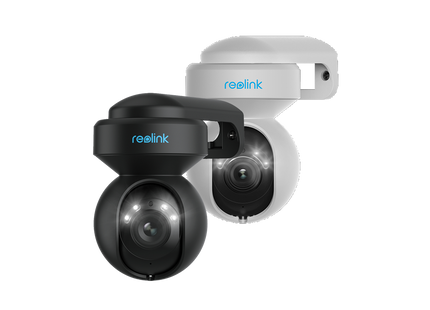

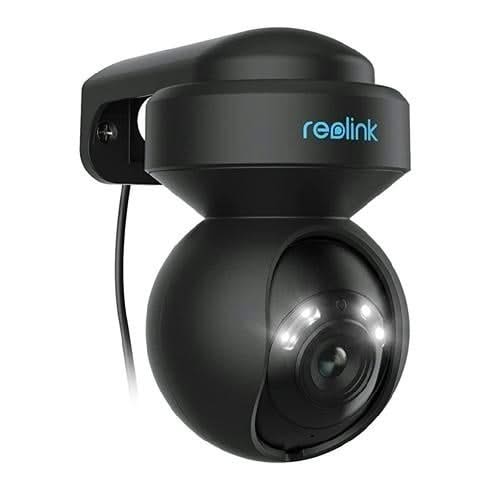

E540-B, Black 5MP PTZ Dual-Band WiFi camera with emergency lighting

Description

The small E-series E540 is easy to install and conceal. Thanks to the smart technology, the camera detects people/vehicles/pets, enables real-time remote communication and color night vision with spotlights on.

Thanks to on-camera technology for analyzing the shapes of people, vehicles and pets, the E-Series E540 provides accurate detections, significantly reducing the number of false alarms from movements of trivial objects.

This smart IP camera supports both 2.4 GHz and 5 GHz frequencies to ensure better performance for camera networks. Another choice, many conveniences.

This PTZ camera allows you to view your world from any angle and can track the moving person/car/pet automatically. Keep an eye out for intruders and don't let them hide anywhere.

Receive a notification when the E Series E540 detects motion. You can configure when you want notifications to be enabled - always or on a specific schedule.

Please note: it follows the person/car/pet left and right, but not up and down

Please note: It tracks people/cars from left and right, but not from top to bottom.

Specifications:

Model: Reolink E540
Video & Audio Sensor 1/2.7" CMOS Sensor
Video Resolution 2560x1920 (5MP) @20 frames/sec
Video format H.264
Lens f=2.8~8mm, F=1.6, with IR cut
Zoom 3x optical zoom
Viewing angle Horizontal 48~90°, vertical 37~68°
Infrared night vision Up to 12 meters (LED: 12pcs/1.6W/850nm)
Color night vision 4pcs/2.7W/3000K
Day/night IR cut filter with auto switching
Audio Two-way audio
Pan & Tilt

Pan & Tilt range Horizontal 355°, vertical 50°
Car Tracking Supported
Interface Current DC power port
System Reset button
Ethernet One 10M/100Mbps RJ45
Storage Micro SD candle slot (max 256GB)
Audio Built-in microphone and speaker
WiFi WiFi standard IEEE 802.11 a/b/g/n
Frequency 2.4/5GHz
WiFi security WPA-PSK/WPA2-PSK
Current DC current 12.0/1A, <12W
Software features


Frame rate Mainstream: 2fps - 20fps (default: 20fps);
Substream: 4fps - 15fps (default: 10fps)
Code rate Mainstream: 2048Kbps - 5120Kbps (default: 3072Kbps)
Substream: 64Kbps - 512Kbps (default: 256Kbps)
Browser Edge, Chrome, Firefox, Safari
OS PC: Windows, Mac OS; Smartphone: iOS, Android
Smart alarm Motion Detection/Person Detection/Vehicle Detection/Pet Detection
Recording modes Motion-activated (default)/scheduled
Protocols HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, P2P, ONVIF, IPv4, FTP
Max user access Supports up to 12 video streams simultaneously (10 substreams & 2 mainstreams);
20 users (1 admin account & 19 user accounts)
Works with Google Assistant, Reolink NVR
Work environment Operating temperature -10° to 50° C
Operating humidity 10~90%
Waterproof IP65
Dimensions & weight Dimension Φ90x120mm
Weight  415g





E540-B, Black 5MP PTZ Dual-Band WiFi camera with emergency lighting

Product form

In stock, delivery time 1 to 3 working days

€104,99 Incl. VAT

    • Free shipping from €99
    • Free returns within 30 days

    Description

    The small E-series E540 is easy to install and conceal. Thanks to the smart technology, the camera detects people/vehicles/pets, enables real-time remote communication and color night vision with spotlights on.

    Thanks to on-camera technology for analyzing the shapes of people, vehicles and pets, the E-Series E540 provides accurate detections, significantly reducing the number of false alarms from movements of trivial objects.

    This smart IP camera supports both 2.4 GHz and 5 GHz frequencies to ensure better performance for camera networks. Another choice, many conveniences.

    This PTZ camera allows you to view your world from any angle and can track the moving person/car/pet automatically. Keep an eye out for intruders and don't let them hide anywhere.

    Receive a notification when the E Series E540 detects motion. You can configure when you want notifications to be enabled - always or on a specific schedule.

    Please note: it follows the person/car/pet left and right, but not up and down

    Please note: It tracks people/cars from left and right, but not from top to bottom.

    Specifications:

    Model: Reolink E540
    Video & Audio Sensor 1/2.7" CMOS Sensor
    Video Resolution 2560x1920 (5MP) @20 frames/sec
    Video format H.264
    Lens f=2.8~8mm, F=1.6, with IR cut
    Zoom 3x optical zoom
    Viewing angle Horizontal 48~90°, vertical 37~68°
    Infrared night vision Up to 12 meters (LED: 12pcs/1.6W/850nm)
    Color night vision 4pcs/2.7W/3000K
    Day/night IR cut filter with auto switching
    Audio Two-way audio
    Pan & Tilt

    Pan & Tilt range Horizontal 355°, vertical 50°
    Car Tracking Supported
    Interface Current DC power port
    System Reset button
    Ethernet One 10M/100Mbps RJ45
    Storage Micro SD candle slot (max 256GB)
    Audio Built-in microphone and speaker
    WiFi WiFi standard IEEE 802.11 a/b/g/n
    Frequency 2.4/5GHz
    WiFi security WPA-PSK/WPA2-PSK
    Current DC current 12.0/1A, <12W
    Software features


    Frame rate Mainstream: 2fps - 20fps (default: 20fps);
    Substream: 4fps - 15fps (default: 10fps)
    Code rate Mainstream: 2048Kbps - 5120Kbps (default: 3072Kbps)
    Substream: 64Kbps - 512Kbps (default: 256Kbps)
    Browser Edge, Chrome, Firefox, Safari
    OS PC: Windows, Mac OS; Smartphone: iOS, Android
    Smart alarm Motion Detection/Person Detection/Vehicle Detection/Pet Detection
    Recording modes Motion-activated (default)/scheduled
    Protocols HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, P2P, ONVIF, IPv4, FTP
    Max user access Supports up to 12 video streams simultaneously (10 substreams & 2 mainstreams);
    20 users (1 admin account & 19 user accounts)
    Works with Google Assistant, Reolink NVR
    Work environment Operating temperature -10° to 50° C
    Operating humidity 10~90%
    Waterproof IP65
    Dimensions & weight Dimension Φ90x120mm
    Weight  415g
