Description

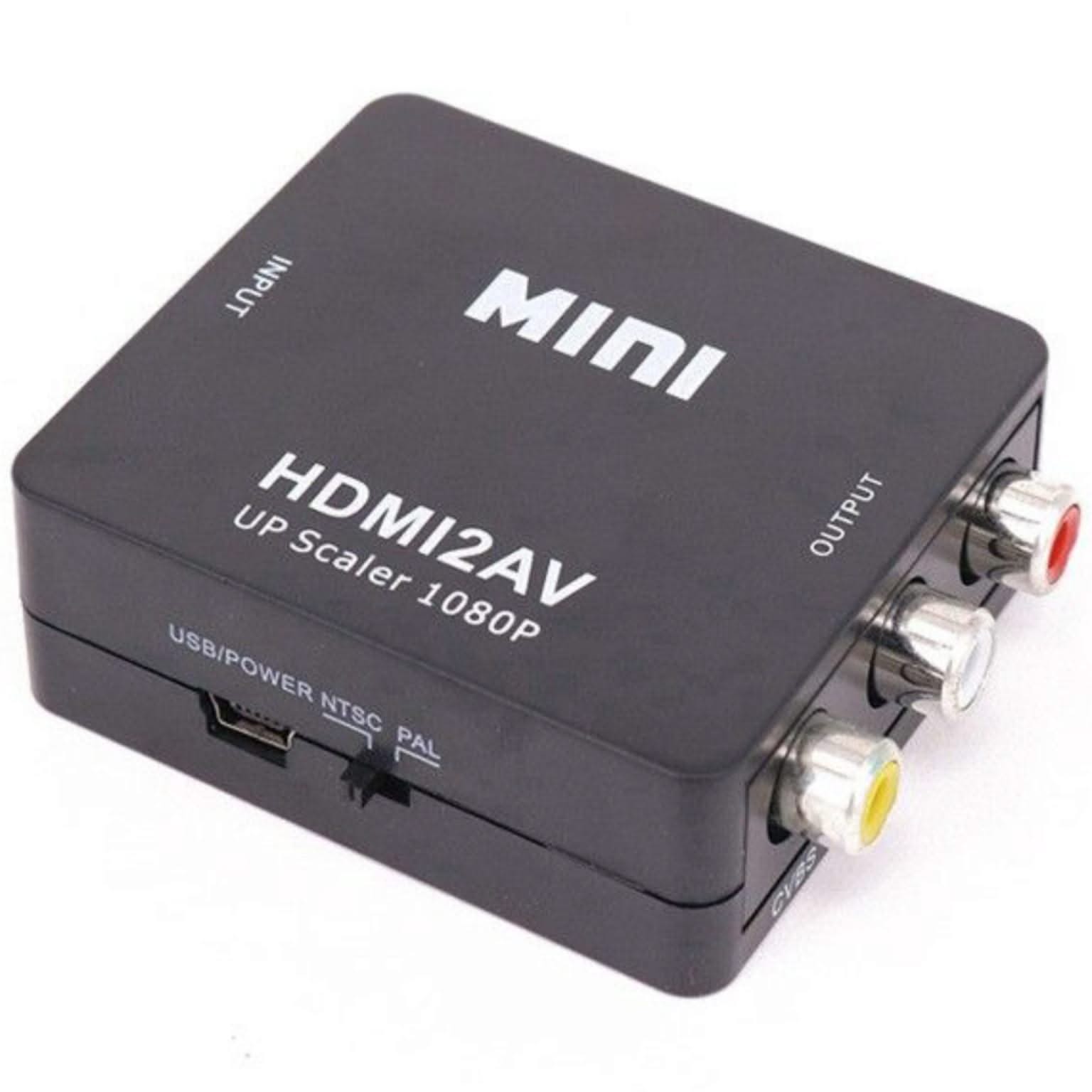

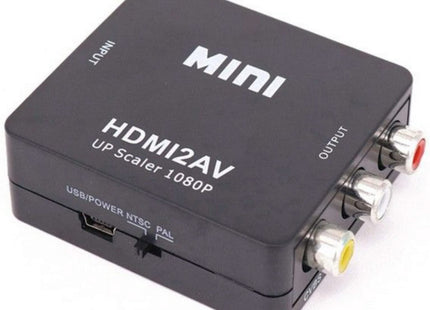

HDMI to Composite adapter

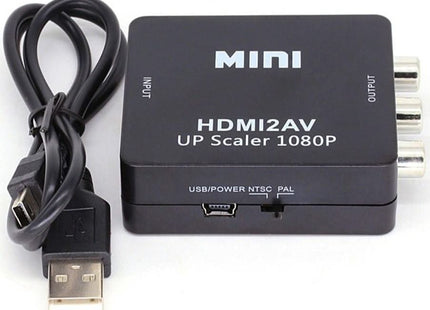

HDMI to composite adapter for connecting monitors with composite inputs. The inverter is therefore equipped with various connections and must be provided with an external power source. A mini USB to USB A cable is included for power. The converter can then be used by connecting an HDMI cable to the appropriate port for input. This allows the signal for image and sound to be supplied. There are three female tulip connections for the output. The red and white connections are for transmitting the audio and the yellow port is for the image.
Use
By using the HDMI Adapter to composite converter, it is possible, for example, to connect an older device with a composite connection with an HDMI cable. For example, you could consider connecting an outdated DVD player or game console to a television. Power is supplied via the mini USB connection on the inverter. You connect the supplied cable to this, which is then connected to a USB A port. This can be done with an adapter for a wall socket or a USB A connection on, for example, the television. An adapter to connect the cable to mains power is not included.
Features
• The converter is compatible with HDMI 1.3
• Support is provided for NTSC and PAL video formats
• Ready to use immediately, without adjusting settings
Technical information

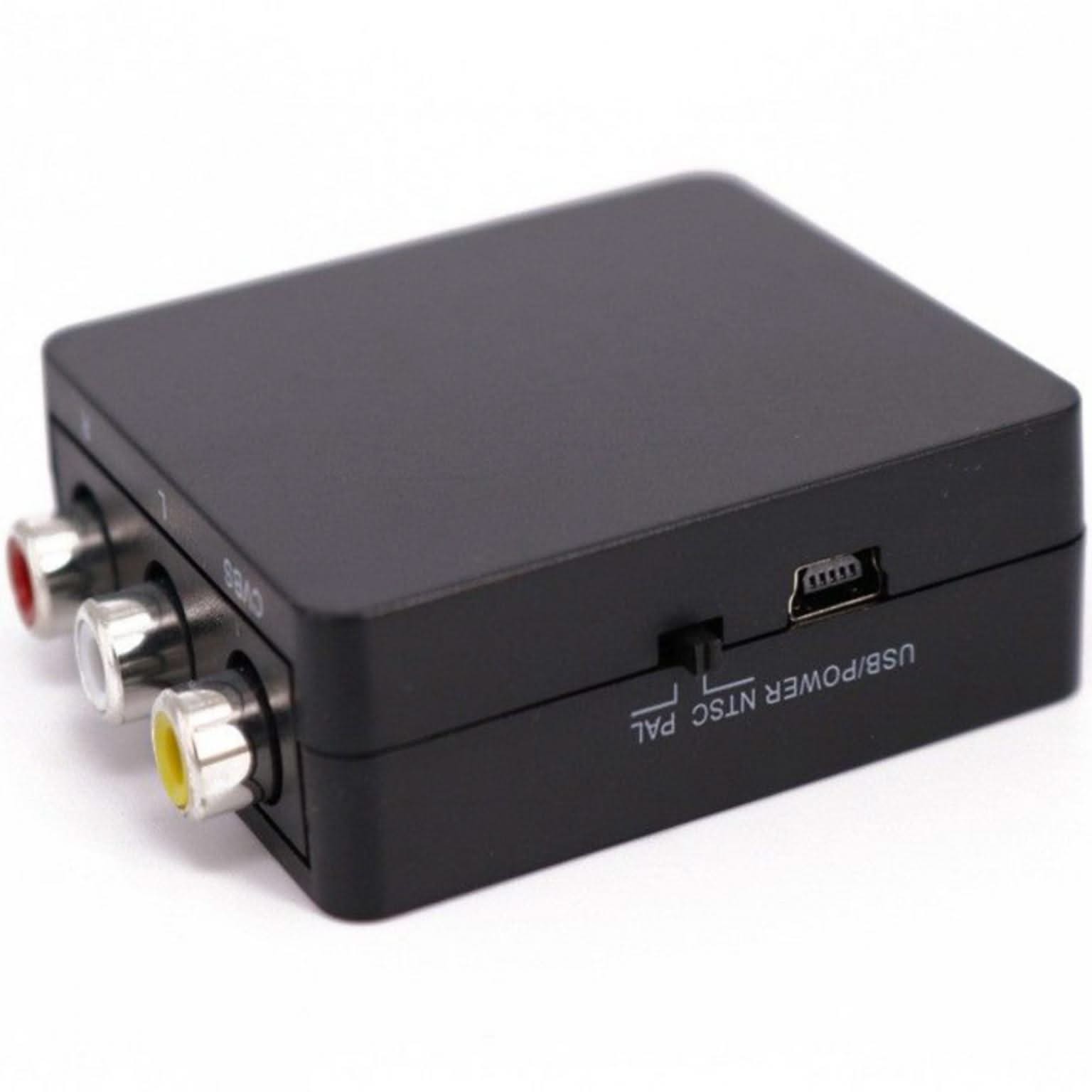

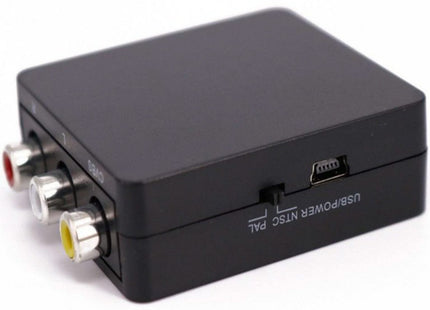

The Allteq HDMI to composite converter is a handy and compact product. The inverter can be used immediately, without installing software or adjusting settings. The included mini USB to USB A cable is intended to supply the power. There is a mini USB female connection on the device for this purpose. Next to this connection is a switch that allows you to choose the video format. As a user you can choose from a PAL or NTSC video format. The converter is compatible with HDMI 1.3 and has an HDMI female connection for input. There are three female tulip connections for the output. This involves two connections for audio and one connection for video. The Allteq HDMI to composite converter supports a resolution of up to 1080p.
Specifications:
• Brand: Allteq
• Product: HDMI to composite converter
• Colour: black
• Length: 15 centimeters
• Width: 18 centimeters
• Height: 2.2 centimeters
• Weight: 60 grams
• Connection 1 input: HDMI female
• Connection 2 input: USB A 2.0 female
• Connection 1 output: Video composite female
• Connection 2 output: RCA female
• Supported HDMI resolutions: 640 x 480, 800 x 600, 1280 x 1024, 1360 x 768, 1600 x 1200, 1920 x 1080, 480i, 480p, 576i, 576p, 720p, 1080i and 1080p
• Frequency: 60 Hertzv • CVBS output: PAL, NTSC_M and NTSC_J
• Power supply: via supplied mini USB to USB A cable
• Warranty: 5 years
