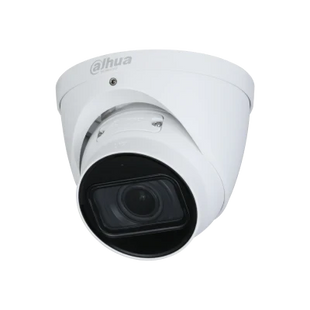

HDW5842T-ZE-S3, 8MP Deeplight IR Wizmind 2.7-12mm Motor Zoom

Description

The WizMind S Series includes a professional range of intelligent cameras that use... AI Powered image-enhancing technologies (AI ISP) and have Deeplight; an upgrade of existing Starlight technology that now uses a deep learning image optimization algorithms, which allow the cameras to deliver excellent images in low-light situations. This allows the cameras to easily adapt to different scenes and perform optimally in various challenging environments.

The cameras from this series offer significantly improved audio and video analysis. In addition, they record appearance characteristics in video metadata, distinguish various sounds through advanced sound detection, have facial detection, improved perimeter security with 99% accuracy, improved people counting and more smart functions.

  • 8MP resolution at 25fps
  • Deeplight for optimal performance in low-light situations.
  • WizMind technology for intelligent shape detection.
  • H.265 compression for optimal bandwidth and storage use.
  • Image optimization based on AI
  • IP67 Dust and water resistant
  • Built-in microphone
  • SD card slot for Micro-SD up to 512GB
  • Suitable for PoE, ePoE and 12VDC

Specifications:

  • Camera

    • Number of image sensors: 1

    • Optical/Thermal: Optical

    • Image sensor: 1/1.8

    • Resolution: 3840 x 2160

    • Number of pixels: 8MP

    • Minimum illumination strength (in color): 0.0008

    • Minimum lighting intensity (LED on (black/white)): 0 lux

    • Lighting: IR

    • LED distance: up to 40m

    • LED On/Off (Day/Night): Auto/Manual

    • Number of LED(s): 2 LED

    • Shutter speed: 1/3s ~ 1/100,000s

    • Noise reduction: 3DNR

  • Lens

    • Lens type: Motor zoom lens

    • Iris: Auto Iris

    • Focal length: 2.7mm ~ 12mm

    • Maximum aperture: F1.8

    • Horizontal opening angle: 47° ~ 113°

    • Vertical opening angle: 26° ~ 60°

    • Focus Control: Auto/Manual

  • Video

    • Stream option: 4 streams

    • Video compression: H.264, H.264+, H.265, H.265+, MJPEG

    • Frames per second (Main stream): 25fps @3840× 2160

    • 2nd stream: 25fps D1: 720 x 576

    • 3rd stream: 25fps @1920 x 1080

    • 4th stream: 10fps @1280 x 720

    • Bit rate: H.264: 32 kbps–8192 kbps, H.265: 32 kbps–8192 kbps

    • Day/Night: Auto (filter), Color, Black/White

    • Light compensation: BLC, HLC, WDR(120dB)

    • Motion detection: On/Off

  • Smart Features

    • AI Face Capture/Attributes

    • AI People Counting

    • AI Perimeter Protection

    • AI Motion detection

    • AI Video Metadata

    • Face Detection

    • Heat map

    • Object Abandoned/Missing

    • Smart IR: Yes

    • Smart LED: Auto/Manual

    • Electronic Image Stabilization (EIS): Yes

    • Defog: Yes

    • Privacy masking: Yes

  • Audio

    • Built-in microphone: Yes

    • Audio input: No

    • Audio Output: No

    • Audio Compression: G.711 A, G.711 MU, G.723, PCM

    • Speaker: No

  • Network

    • Ethernet: RJ-45 (10/100 Base-T)

    • SD card storage option: Yes

    • Maximum Storage Capacity SD Card: 512 GB

  • Interface

    • RS-485: No

    • Alarm: No

  • Electric

    • Including power supply: No

    • Power supply: 12V DC, PoE (Type IEEE 802.3af), E-PoE

    • Max Consumption: 9W

  • Environment

    • Working temperature: -30°C ~ +60°C

    • Water resistance: IP67

  • Construction

    • Material: Metal

    • Diameter: Ø122mm

    • Height: 108.3mm

    • Weight: 0.7 Kg
