Description
Professional security and AI.

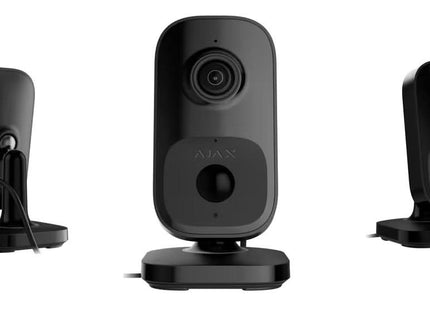

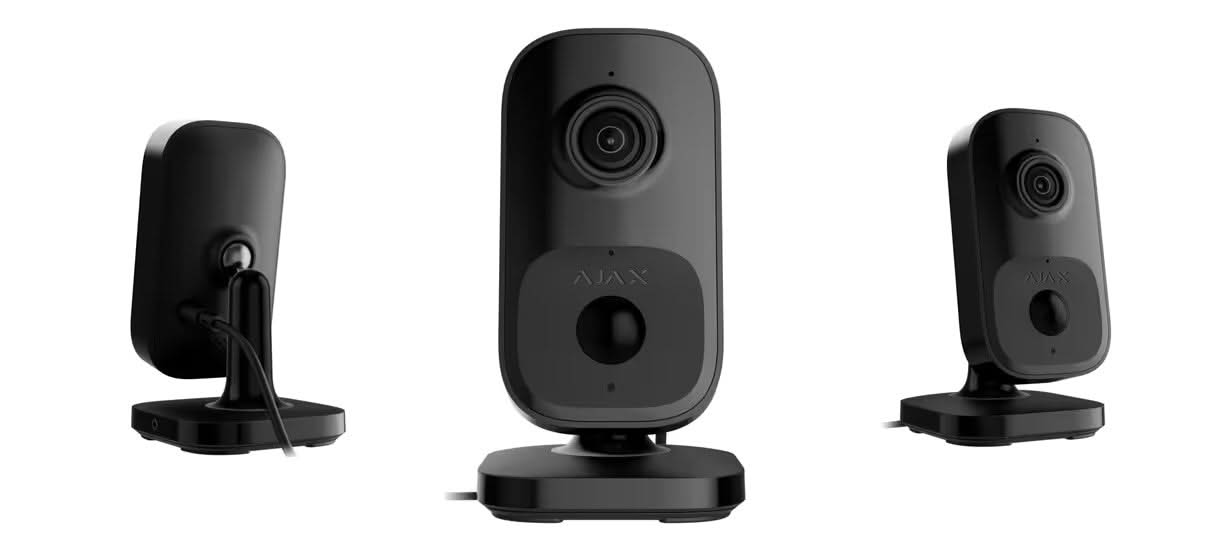

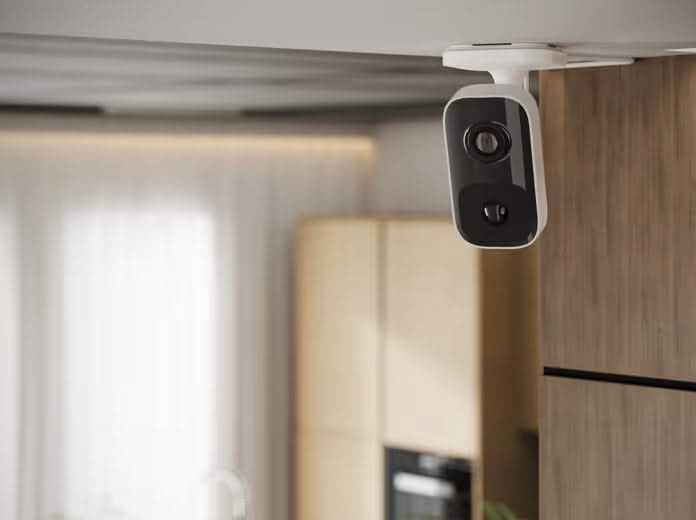

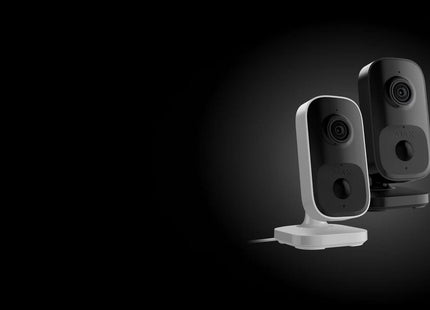

IndoorCam combines the convenience of Wi-Fi cameras with advanced security features. The fallback communication channel with an Ajax hub ensures that the facility never goes out of sight, even if the Wi-Fi goes down. Equipped with a PIR sensor and built-in AI, the device accurately detects movements and recognizes people, animals and vehicles. Gebruikers kunnen altijd een duidelijk beeld krijgen van de binnenactiviteit in uitstekende kwaliteit dankzij de groothoek HDR-camera van de IndoorCam.
Live view, instant conversation
Stay connected to your property and control it from anywhere, day or night. With HD video streaming and two-way audio, you can see, hear and respond to any situation instantly with your smartphone. From deterring unwanted visitors to monitoring your space, IndoorCam combines professional surveillance with easy-to-use functionality.
Extensive Wi-Fi range for no delays and freezes

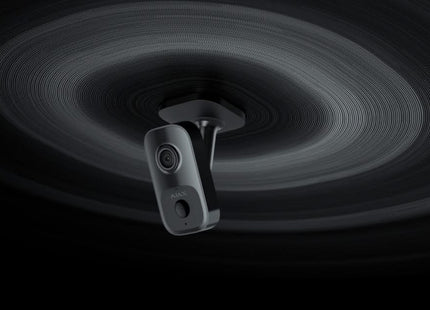

Forget home security cameras that disconnect from the Wi-Fi network at the worst possible time. IndoorCam is designed to be less sensitive to radio interference and maintain a stable connection up to 500 meters in line of sight — five times further than competing solutions. This extended range offers greater installation flexibility, as installers no longer need to place the Wi-Fi router directly near the camera. For users, it ensures seamless communication and uninterrupted streaming when needed.
Reliable connection via WiFi
By connecting IndoorCam to an Ajax hub, you have a reliable backup communication channel. If the Wi-Fi connection is lost, the camera will continue to send events, alarms and photos using Ajax's secure Jeweler and Wings radio protocols. With a communication range of up to 1,700 meters with a hub and robust Ajax anti-tampering measures, IndoorCam remains an active part of the intrusion protection system, keeping users informed and in control.
Specifications:
-
Video stream:
- Camera with 4 MP CMOS sensor.
- Solution to 2560 × 1440 px.
-
Camera viewing angles:
- Horizontal: 110°.
- Vertical: 60°.
-
Video protocol:
- JetSparrow (fast and encrypted peer-to-peer video protocol developed by Ajax Systems).
-
Storage options:
- Ajax Cloud.
- NVR (Network Video Recorder).
-
Video codec:
-
Dynamic range:
- HDR for improved accuracy of details in light and dark scenes.
-
Communication channel:
- Wi-Fi (802.11 b/g/n).
- 2.4 GHz, up to 2 Mbit/s for the 2K video channel.
-
Communication technologies from Juwelier and Wings:
- Wireless communication technologies for commands, alarms, events and photo verifications.
- Backup communication channel when the device is added to the hub.
-
Main features:
- Two-way communication for clear and loud speech.
- Motion detection via built-in PIR sensor and software image frame analysis.
- Object detection with AI for people, pets and vehicles.
- Smart IR lighting up to 8 m with automatic intensity adjustment.
- Visual verification of Ajax alarms via selected cameras.
-
Microphone:
- For two-way communication and sound recording.
-
Audio codec and audio processing:
- G722 audio codec.
- Always active noise cancellation and echo cancellation.
-
LED indication:
- Indicates the current status of the device.
-
PIR detection:
- Sensitive elements: 1 × PIR sensor.
- Motion detection distance: up to 4 m (depending on sensitivity settings).
- Motion detection angle: Horizontal: 110°; Vertical: 60°.
- Sensitivity: 3 levels, adjustable by PRO users or users with administrator rights.
-
Installation recommendations:
- For indoor use only.
- Do not install in direct sunlight to avoid overheating.
-
Tamper Protection:
- Retaining screw for mounting.
- mTLS encrypted connection for data protection.
- Authentication via Ajax Cloud (without local access rights).
- Secure automatic firmware update via OTA signature verification.
- Privacy by dividing user access rights in mobile apps and PRO Desktop.
-
Communication Loss Detection:
- Wi-Fi: adjustable from 30 s.
- Jeweler/Wings: after 36 s.
-
Power supply:
- Power supply: 12 V⎓ ± 20%, 1 A.
- Power consumption of the device: To be determined.
-
Housing:
- Dimensions: 128 × 74 × 76 mm.
- Weight: 235 grams.
- Operating temperature: from 0 °C to +40 °C.
- Operating humidity: up to 90% without condensation.
- Protection class: IP20.
-

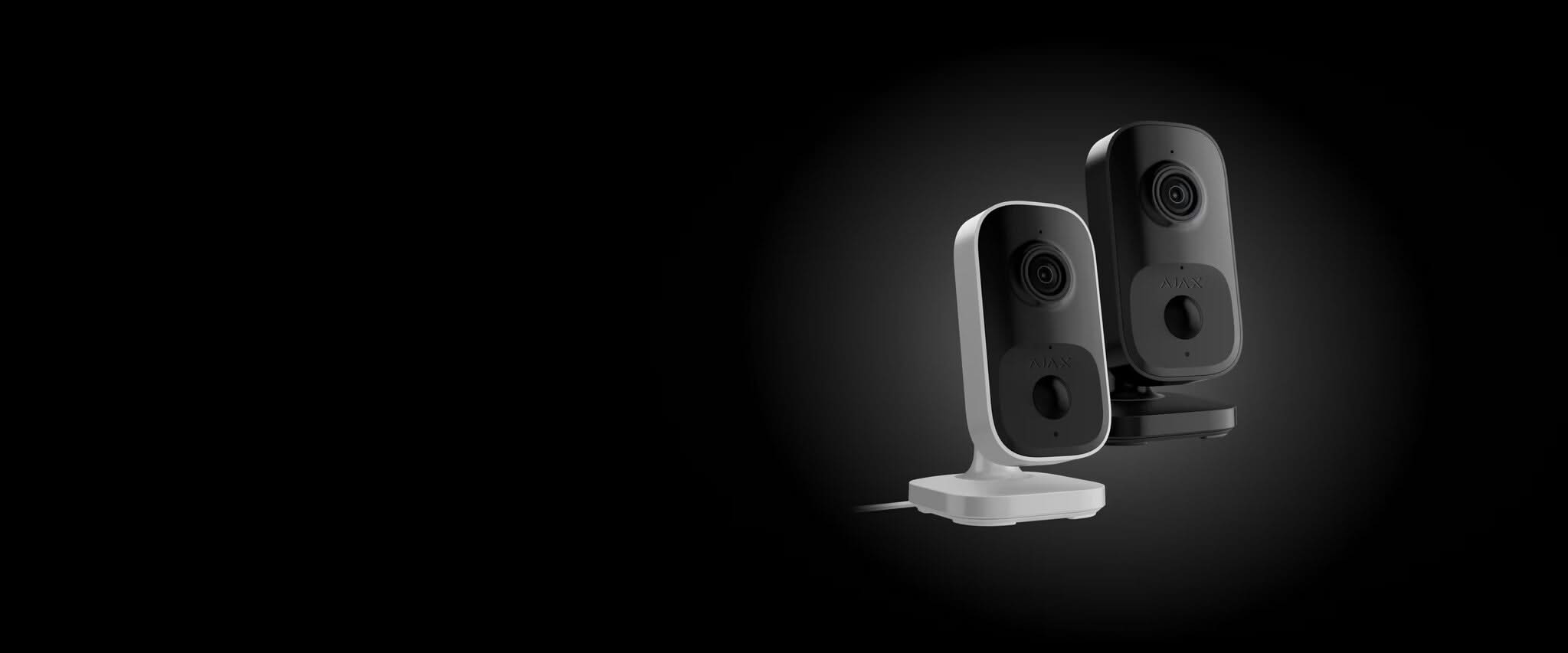

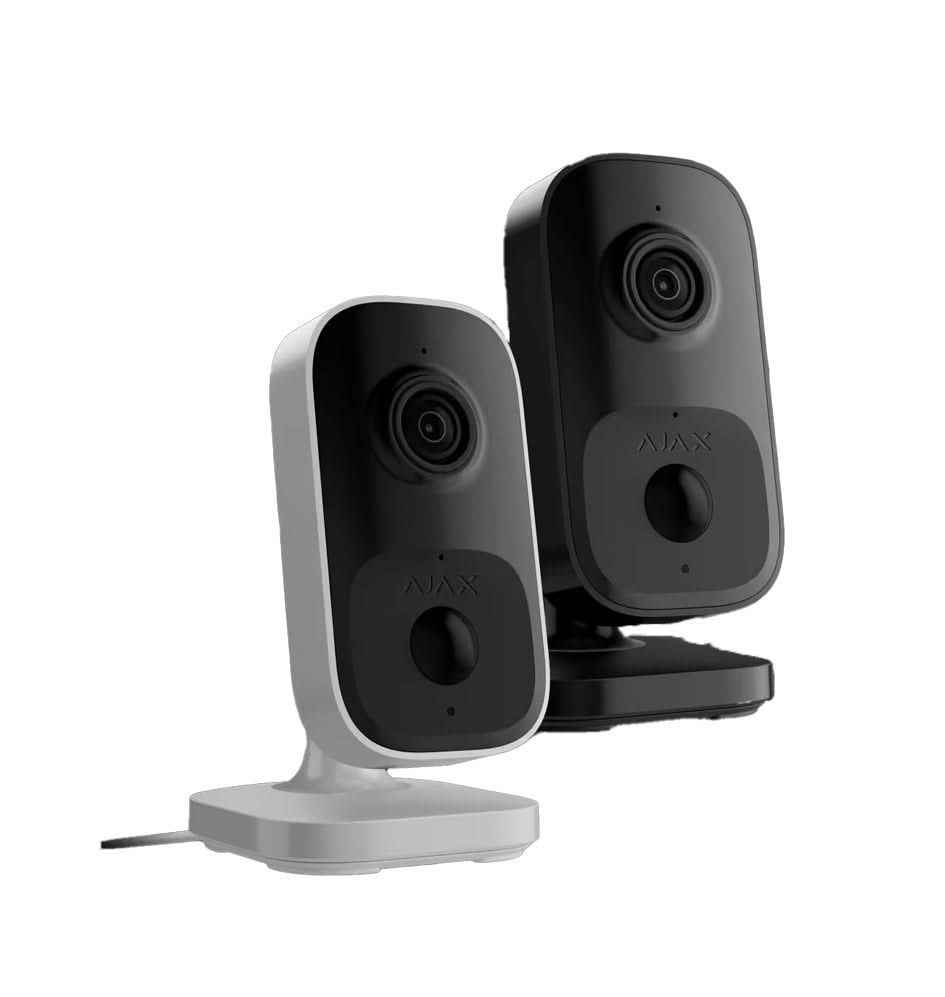

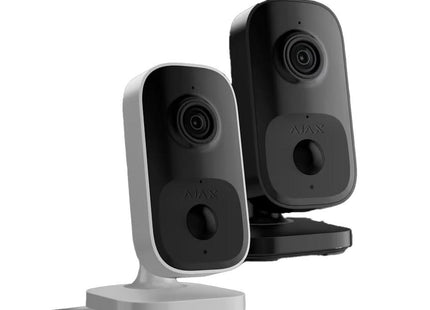

Colors:
- Black (RAL 9005) and White (RAL 9003).
