Description

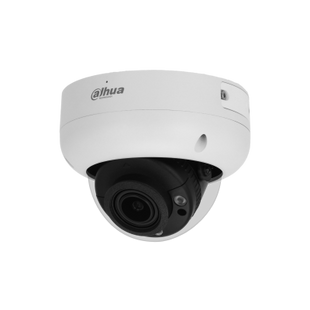

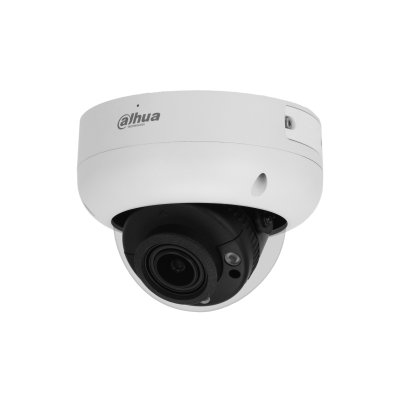

IPC-HDBW2841R-ZAS 8MP 2.7-13.5mm zoom lens | Wizsense | PoE | Micro SD slot
This security camera is part of the WizSense series, consisting of cameras that apply smart detection functions and a deep learning algorithm for increased reliability. Using the built-in video analysis functions, the Dahua DH-IPC-HDBW2841RP-ZAS can detect and analyze moving objects. For example, the camera responds to motion detection or when someone crosses a set line. The intelligent algorithm ensures that the camera only responds to people and vehicles, minimizing the risk of false alarms.
You can use the Dahua DH-IPC-HDBW2841R-ZAS in various indoor and outdoor situations. The sturdy housing (IP67) offers protection against moisture and dust and ensures that the camera is also weatherproof. In addition, the camera has the highest certification for impact resistance (IK10), which makes it vandal-resistant.
The video recordings of the Dahua DH-IPC-HDBW2841R-ZAS can be followed live via the Dahua web interface, but can also be saved locally on an SD/SDHC/SDXC card (up to 256 GB), NAS or NVR. To limit the file size, the Dahua DH-IPC-HDBW3841R-ZAS-S2 applies H.265+ image compression. This technique is no less than twice as efficient as H.264 and has no influence on image quality.
You can power the Dahua camera with a 12V DC power adapter (not included) or via PoE (802.3af). The advantage of PoE is that you only need one cable to provide the camera with network connection and power and do not have to connect it separately to a wall socket. To power the camera via PoE, you still need a PoE injector or PoE switch.
Specifications:
| Number of image sensors: |
1 |
| Image sensor: |
1/2.8 |
| Resolution: |
3840x2160 |
| Number of pixels: |
8MP |
| Minimum lighting strength (in color): |
0.007 Lux |
| Minimum lighting strength (LED on (black/white)): |
0 Lux |
| Lighting: |
IR |
| LED distance: |
up to 40m |
| LED On/Off (Day/Night): |
Auto/Manual |
| Number of LED(s): |
2 LED |
| Shutter speed: |
1/3~1/100000s |
| Noise reduction: |
3DNR |
| Video Output: |
No |
| Lens type: |
Motor zoom lens |
| Iris: |
Fixed Iris |
| Focal Length: |
2.7mm ~ 13.5mm |
| Maximum opening: |
F1.5 |
| Horizontal opening angle: |
109° ~ 30° |
| Vertical opening angle: |
56° ~ 17° |
| Focus Control: |
Auto/Manual |
| Stream option: |
3 streams |
| Video compression: |
H.264, H.264+, H.264 B, H.264 H, H.265, H.265+, MJPEG |
| Images per second (Main stream): |
25fps @3840×2160 |
| 2nd stream: |
25fps @704×576 |
| 3rd stream: |
25fps @1920×1080 |
| Bit rate: |
H.264: 3Kbps ~ 8192Kbps, H.265: 3Kbps ~ 8192Kbps |
| Day/Night: |
Auto (filter), Color, Black/White |
| Light compensation: |
BLC, HLC, WDR(120dB) |
| Motion detection: |
On/Off |
| |
|
| Smart Features: |
AI Perimeter Protection |
| |
AI Motion detection |
| Smart IR: |
Yes |
| Electronic Image Stabilization (EIS): |
No |
| Defog: |
No |
| Privacy masking: |
Yes |
| Built-in microphone: |
No |
| Audio input: |
Yes |
| Audio Output: |
Yes |
| Audio Compression: |
AAC, G.711 A, G.711 MU, G.726 |
| Ethernet: |
RJ-45 (10/100Base-T) |
| SD card storage option: |
Yes |
| Maximum Storage Capacity SD Card: |
256GB |
| RS-485: |
No |
| Alarm: |
No |
| Number of channels in: |
1x Max 5mA 3V–5V DC |
| Number of channels out: |
1x Max 300mA 12V DC |
| including power supply: |
No |
| Power supply: |
12V DC, PoE (Type IEEE 802.3af) |
| Max Consumption: |
Basic: 4 W (12 VDC); 4.9 W (PoE) Maximum (WDR + IR Intensity + Intelligence): 9.2 W (12 VDC); 10.5W (PoE) |
| Working temperature: |
-30°C ~ 60°C |
| Waterproofness: |
IP67 |
| Vandal resistant: |
IK10 |
| Material |
Metal |
| Diameter |
Ø122mm |
| Height |
88.9mm |
| Weight: |
0.492 Kg |
