Description

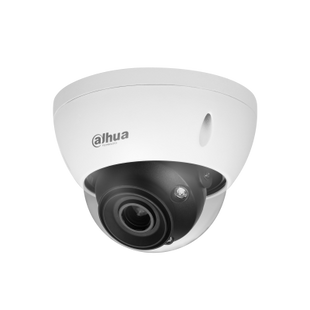

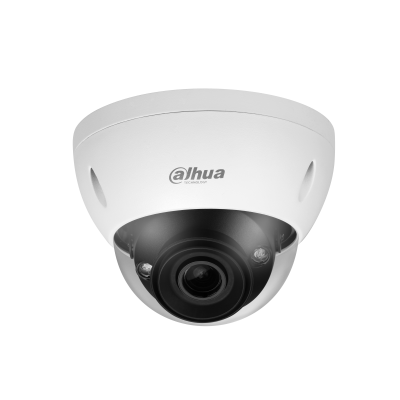

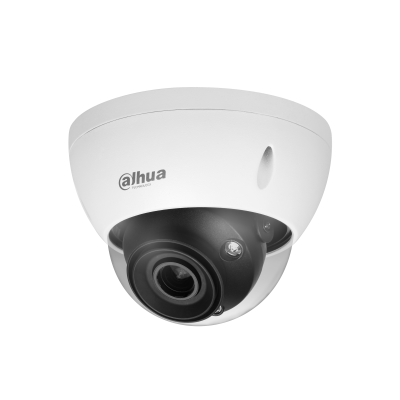

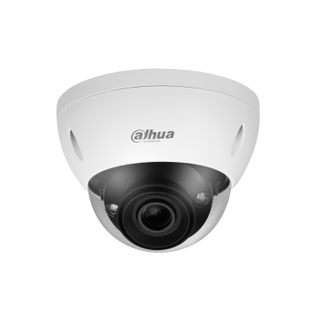

IPC-HDBW5442E-ZE-S3 ePoE 4MP D/N Starlight+ IR, Dome 2.7-12mm lens varifocal Wizmind
The WizMind S Series includes a professional range of intelligent cameras that use... AI Powered image-enhancing technologies (AI ISP) and have Deeplight; an upgrade of existing Starlight technology that now uses a deep learning image optimization algorithms, which allow the cameras to deliver excellent images in low-light situations. This allows the cameras to easily adapt to different scenes and perform optimally in various challenging environments.
The cameras from this series offer significantly improved audio and video analysis. In addition, they record appearance characteristics in video metadata, distinguish various sounds through advanced sound detection, have facial detection, improved perimeter security with 99% accuracy, improved people counting and more smart functions.
Dahua has greatly improved the Starlight and Starlight+ technology and is taking this technology to a higher level with Deeplight. Deeplight cameras use deep learning algorithms to process images, effectively reducing noise and providing better images with higher clarity, even in low-light environments or at night.
When both a Dahua switch and a power adapter (DC or AC) are connected at the same time, the IPC can automatically switch to the other power source if one of the sources fails. This ensures that the camera continues to work and prevents video loss.
Specifications:
| Number of image sensors: |
1 |
| Optical/Thermal: |
Optical |
| Image sensor: |
1/1.8 |
| Resolution: |
2688x1520 |
| Number of pixels: |
4MP |
| Minimum lighting strength (in color): |
0.0007 Lux |
| Minimum lighting strength (LED on (black/white)): |
0 Lux |
| Lighting: |
IR |
| LED distance: |
up to 50m |
| LED On/Off (Day/Night): |
Auto/Manual |
| Number of LED(s): |
2 LED |
| Shutter speed: |
1/3s ~ 1/100000s |
| Noise reduction: |
3DNR |
| Lens type: |
Varifocal |
| Iris: |
Varifocal |
| Focal Length: |
2.7-12mm |
| Maximum opening: |
F1.8 |
| Horizontal opening angle: |
112° - 47 |
| Vertical opening angle: |
58° - 27 |
| Focus Control: |
Auto/Manual |
| Stream option: |
4 streams |
| Video compression: |
H.264, H.264+, H.264 B, H.264 H, H.265, H.265+, MJPEG |
| Images per second (Main stream): |
25fps @2688 x 1520 /1fps--50/60fps @1920 x 1080 |
| 2nd stream: |
25fps D1: 720x576 |
| 3rd stream: |
25fps @1920 x 1080 |
| 4th stream: |
25fps @1280x720 |
| Bit rate: |
H.264: 32 Kbps–8192 Kbps, H.265: 19 Kbps–8192 Kbps |
| Day/Night: |
Auto (filter), Color, Black/White |
| Light compensation: |
BLC, HLC, WDR(140dB) |
| Motion detection: |
On/Off |
| |
|
| Smart Features: |
AI Face Capture/Attributes |
| |
AI People Counting |
| |
AI Perimeter Protection |
| |
AI Motion detection |
| |
AI Video Metadata |
| |
Face Detection |
| |
Object Abbonded/Missing |
| Smart IR: |
Yes |
| SmartLED: |
Auto/Manual |
| Electronic Image Stabilization (EIS): |
No |
| Defog: |
Yes |
| Privacy masking: |
Yes |
| Built-in microphone: |
Yes |
| Audio input: |
Yes |
| Audio Output: |
Yes |
| Audio Compression: |
G.711 A, G.711 MU, G.723, G.726, PCM |
| Speaker: |
No |
| Ethernet: |
RJ-45 (10/100 Base-T) |
| SD card storage option: |
Yes |
| Maximum Storage Capacity SD Card: |
512GB |
| RS-485: |
No |
| Alarm: |
Yes |
| Number of channels in: |
1x 5mA 3V-5VDC |
| Number of channels out: |
1x 300mA 12VDC |
| including power supply: |
No |
| Power supply: |
12V DC, PoE (Type IEEE 802.3af), E-PoE |
| Max Consumption: |
8.8W |
| Working temperature: |
-30°C ~ +60°C |
| Waterproofness: |
IP67 |
| Vandal resistant: |
IK10 |
| Material |
Metal |
| Diameter |
Ø122mm |
| Height |
94mm |
| Weight: |
0.713 Kg |
