Description

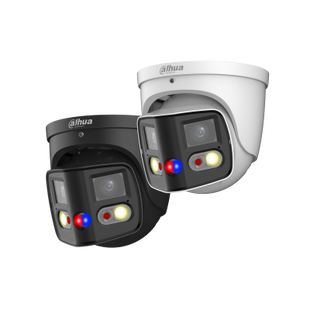

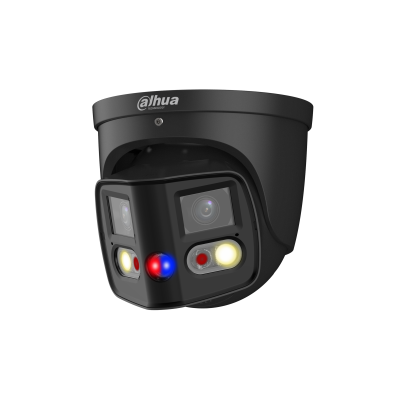

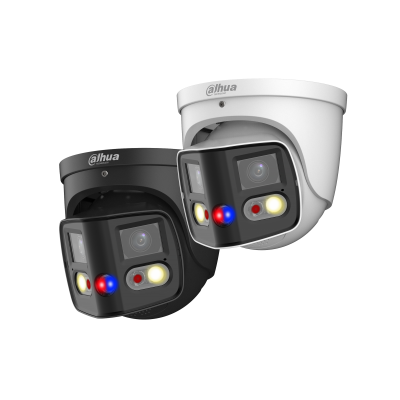

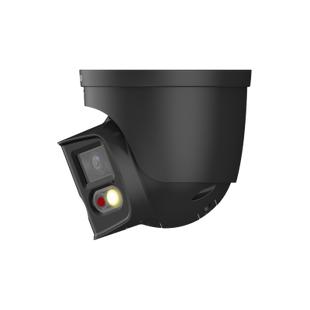

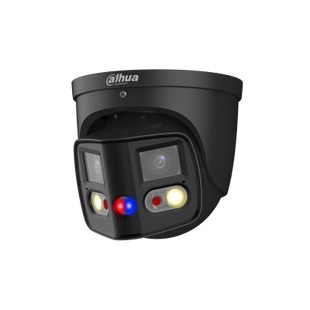

PDW3849P-A180-AS-PV Black 8MP TiOC Eyeball 180° dual lens
The Dahua TiOC cameras are 3-in-1 cameras, suitable for most diverse situations. In addition to razor-sharp color images, the cameras are also equipped with AI functions in the dark for unprecedented detection and deterrent functions of potential burglars. The TiOC 2.0 versions offer additional functions such as Smart Dual LED, Voice Catcher and even better image quality.
Dahua panoramic cameras are designed to be very flexible and suitable for multi-directional or wide perspective surveillance. By using multiple or fish-eye lenses, the camera creates a wide overview image with many details. The products are easy to install and support a variety of features
TiOC 2.0 stands for a generation 3 in 1 camera that works 24/7 full-color monitoring, active deterrence and AI into one smart and innovative solution. TiOC can accurately identify potential risks and effectively warn intruders, effectively protecting the safety of assets.
TiOC provides precise alarm function by accurately aiming at people and vehicles while filtering out non-target objects (such as animals, leaves and car headlights).
Specifications:
| Number of image sensors: |
2 |
| Image sensor: |
Dual 1/2.7" CMOS |
| Resolution: |
4096x1800 |
| Number of pixels: |
8MP |
| Minimum lighting strength (in color): |
0.005 lux |
| Minimum lighting strength (LED on (black/white)): |
0.0005 lux |
| Lighting: |
IR, White LED |
| LED distance: |
IR up to 25m, White LED up to 20m |
| LED On/Off (Day/Night): |
Auto/Manual |
| Number of LED(s): |
4 LED |
| Shutter speed: |
1/3 s–1/100,000 s |
| Noise reduction: |
3DNR |
| Lens type: |
Fixed lens |
| Iris: |
Fixed Iris |
| Focal Length: |
2.8mm |
| Maximum opening: |
F1.4 |
| Horizontal opening angle: |
180° |
| Vertical opening angle: |
86° |
| Focus Control: |
None |
| Stream option: |
3 streams |
| Images per second (Main stream): |
20fps @4096×1860 |
| 2nd stream: |
20fps @1200×530 |
| 3rd stream: |
20fps @1920×860 |
| Bit rate: |
H.264: 9kbps–16384kbps, H.265: 9kbps–16384kbps |
| Day/Night: |
Color, Black/White |
| Light compensation: |
BLC, HLC, SSA, WDR(120dB) |
| Motion detection: |
On/Off |
| |
|
| Smart Features: |
AI Perimeter Protection |
| |
AI Motion detection |
| SmartLED: |
Auto/Manual |
| Defog: |
No |
| Privacy masking: |
No |
| Built-in microphone: |
Yes |
| Audio input: |
Yes |
| Audio Output: |
Yes |
| Speaker: |
Yes |
| Ethernet: |
RJ-45 (10/100 Base-T) |
| SD card storage option: |
Yes |
| Maximum Storage Capacity SD Card: |
256GB |
| Alarm: |
Yes |
| Number of channels in: |
1x Max 5 mA 3 V–5 VDC |
| Number of channels out: |
1x Max 300 mA 12 VDC |
| including power supply: |
No |
| Power supply: |
12V DC, PoE +(Type IEEE 802.3at), E-PoE |
| Max Consumption: |
Basic: 3.9W (12VDC); 4.95W (PoE) Max: 8.7W (12VDC); 10.85W (PoE) |
| Working temperature: |
–40°C ~ +60°C |
| Waterproofness: |
IP67 |
| Material |
Plastic/Metal |
| Diameter |
Ø122mm |
| Height |
135.2mm |
| Weight: |
0.99 |
