JA-110N-DIN BUS DIN current output power module

Description

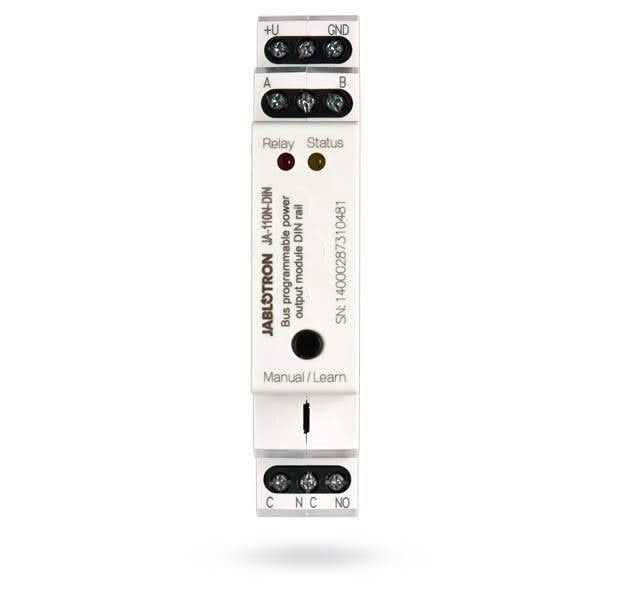

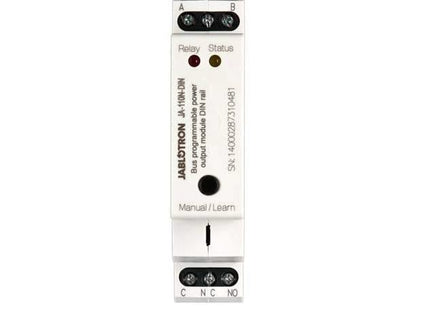

Jablotron JA-110N-DIN BUS DIN current output power module


The Jablotron JA-110N-DIN BUS DIN current output power module is designed for a DIN rail. The module supplies power to the relay output. It can be used, for example, to control lights, fans, etc. The relay output is programmable via the control panel.


• Power supply 12 V bus (9 ... 15 V)
• Power consumption during backup (relay open / closed) 5 mA / 45 mA
• Power consumption for cable selection 45 mA
• Rating relay (galvanically isolated) - Class II:
• Maximum switching voltage 250 V AC / 24 V DC
• Resistive load (PF = 1) max.16
• Inductive, capacitive load (PF = 0.4) max 8A
• Halogen lighting max. 1000 W DC 384 W
• Minimum DC switching 0.5W
• Twisted wires 2 x 1.5 mm2 max 1 x 2.5 mm2
• Dimensions 18 x 90 x 64 mm
• General indoor environment
• Temperature, -10 To + 40 ° C
• Housing IP-20
• Complies with EN 50130-4, EN 55022, EN 60950-1 DIN rail EN60715

JA-110N-DIN BUS DIN current output power module

Product form

In stock, delivery time 1 to 3 working days

€119,89 Incl. VAT

    • Free shipping from €99
    • Free returns within 30 days

    Associated products

    Description

    Jablotron JA-110N-DIN BUS DIN current output power module


    The Jablotron JA-110N-DIN BUS DIN current output power module is designed for a DIN rail. The module supplies power to the relay output. It can be used, for example, to control lights, fans, etc. The relay output is programmable via the control panel.


    • Power supply 12 V bus (9 ... 15 V)
    • Power consumption during backup (relay open / closed) 5 mA / 45 mA
    • Power consumption for cable selection 45 mA
    • Rating relay (galvanically isolated) - Class II:
    • Maximum switching voltage 250 V AC / 24 V DC
    • Resistive load (PF = 1) max.16
    • Inductive, capacitive load (PF = 0.4) max 8A
    • Halogen lighting max. 1000 W DC 384 W
    • Minimum DC switching 0.5W
    • Twisted wires 2 x 1.5 mm2 max 1 x 2.5 mm2
    • Dimensions 18 x 90 x 64 mm
    • General indoor environment
    • Temperature, -10 To + 40 ° C
    • Housing IP-20
    • Complies with EN 50130-4, EN 55022, EN 60950-1 DIN rail EN60715
