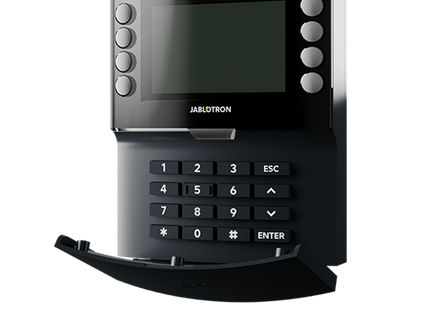

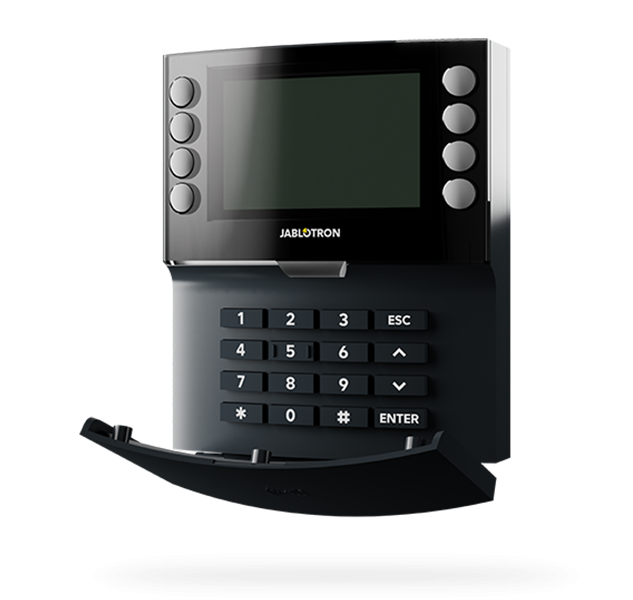

JA-115E-AN, Wired control panel with keypad, LCD and RFID reader

Description

JA-115E-AN, Wired control panel with keypad, LCD and RFID reader

The keyboard is part of the JABLOTRON system. It
serves for control and indication of the current system status.
It is equipped with four segments. The descriptions of this will be
displayed on the LCD screen. The device must be
installed by a trained technician with a valid certificate
issued by an authorized distributor. The keyboard
is compatible with the following keypads JA-102K, JA-103K and
JA-107K.

Specifications:

Type of control device b
Power supply from control panel bus 12V DC (8-15V)
Power consumption in standby mode 18mA
Power consumption for cable selection 150mA
RFID frequency 125kHz
Maximum RFID magnetic field strength -5.4 dBμA/m (measured at 10 m)
Dimensions 110 x 136 x 33mm
Weight 285g
Classification Security class 2/Environmental class II according to EN 50131-1
General environment General
Operating temperature range -10 °C to +40 °C
Average operational humidity 75% RH, non-condensing
Certification body Trezor Test s.r.o. (no. 3025)
In accordance with ETSI EN 300 330, EN 50130-4, EN 55032, EN IEC 62368-1, EN IEC 63000, EN 50131-1, EN 50131-3
Can be operated according to ERC REC 70-03
Recommended screw 4 x ø 3.5 x 40 mm (semi-circular head)

JA-115E-AN, Wired control panel with keypad, LCD and RFID reader

Product form

In stock, delivery time 1 to 3 working days

€216,65 Incl. VAT

    • Free shipping from €99
    • Free returns within 30 days

    Description

    JA-115E-AN, Wired control panel with keypad, LCD and RFID reader

    The keyboard is part of the JABLOTRON system. It
    serves for control and indication of the current system status.
    It is equipped with four segments. The descriptions of this will be
    displayed on the LCD screen. The device must be
    installed by a trained technician with a valid certificate
    issued by an authorized distributor. The keyboard
    is compatible with the following keypads JA-102K, JA-103K and
    JA-107K.

    Specifications:

    Type of control device b
    Power supply from control panel bus 12V DC (8-15V)
    Power consumption in standby mode 18mA
    Power consumption for cable selection 150mA
    RFID frequency 125kHz
    Maximum RFID magnetic field strength -5.4 dBμA/m (measured at 10 m)
    Dimensions 110 x 136 x 33mm
    Weight 285g
    Classification Security class 2/Environmental class II according to EN 50131-1
    General environment General
    Operating temperature range -10 °C to +40 °C
    Average operational humidity 75% RH, non-condensing
    Certification body Trezor Test s.r.o. (no. 3025)
    In accordance with ETSI EN 300 330, EN 50130-4, EN 55032, EN IEC 62368-1, EN IEC 63000, EN 50131-1, EN 50131-3
    Can be operated according to ERC REC 70-03
    Recommended screw 4 x ø 3.5 x 40 mm (semi-circular head)
