Description

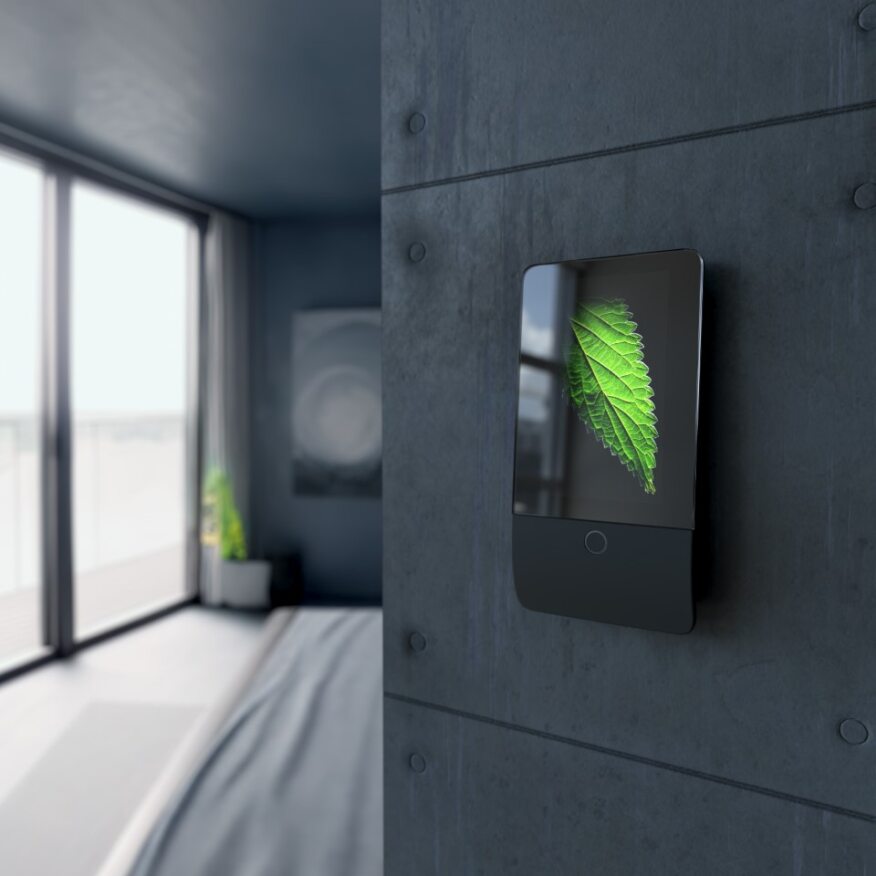

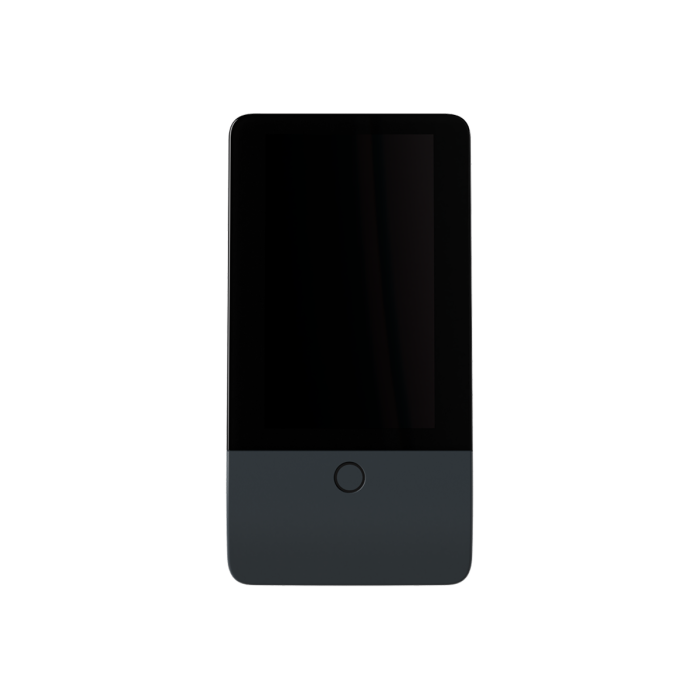

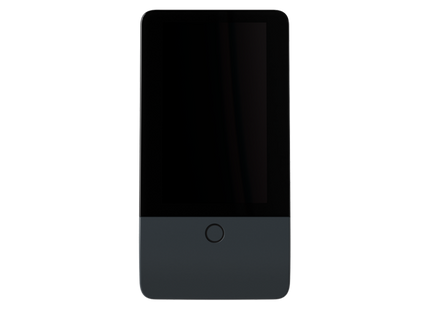

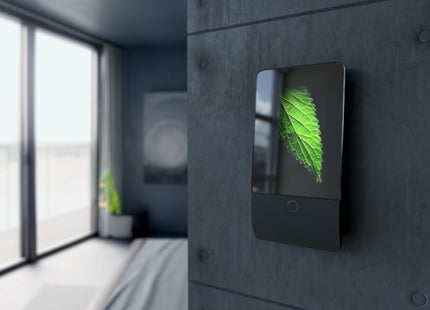

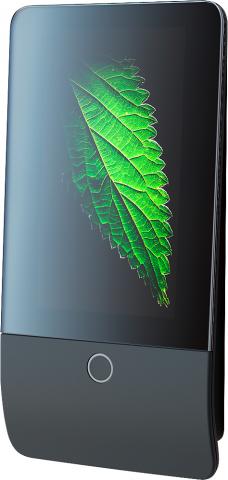

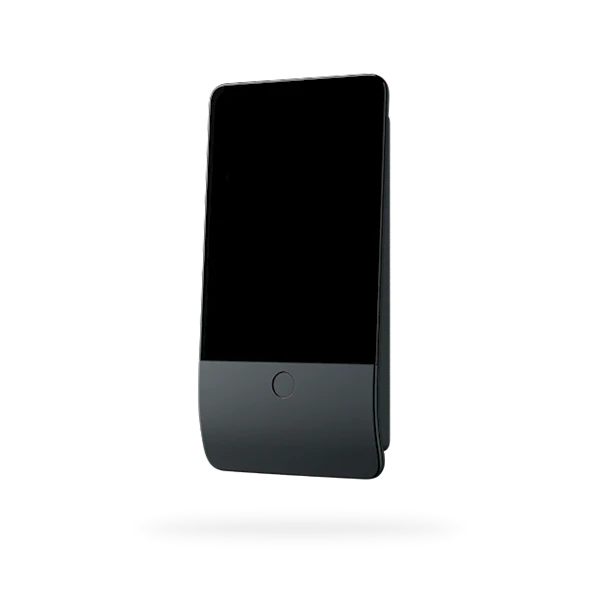

The YES 116E-AN is a modern BUS touchscreen keypad module with integrated RFID reader, designed for use within the Jablotron security system. The suffix “AN” indicates the anthracite (dark gray) color variant.
This device is intended for indoor use and acts as a user-friendly interface for controlling an alarm system, allowing users to arm or disarm via touchscreen or RFID tag/chip.
-
Device type: BUS touchscreen keypad with integrated RFID reader
-
Color: Anthracite (AN variant)
-
Display: 5″ color touchscreen with virtual keys
-
RFID reader: 125 kHz, compatible with Jablotron RFID tags and cards
-
Connection: BUS connection (wired, 4-wire)
-
Supply voltage: 12 V DC (range 8–15 V)
-
Power consumption:
-
In idle (display off): approx. 85 mA
-
Maximum (for cable sizing): up to 250 mA
-
For backup calculation: 40 mA
-
Dimensions: 95 × 183 × 30 mm (h × w × d)
-
Weight: approx. 248 g
-
Environment:
-
Security level: EN 50131-1, Security Grade 2 / Environmental Class II
-
Certifications:
-
Compatibility:
-
Installation:
-
Attachment to mounting plate with locking mechanism
-
Equipped with tamper contact (tamper)
-
Installation only by certified installer
-
Operation: via touchscreen or RFID tag/card
-
Usage: arm/disarm system, operate zones, show status
-
Application: indoor control of alarm systems in homes and business premises
