JA-152M, Wireless built-in door detector for Pro Series

Description

JA-152M, Wireless built-in door detector for Pro Series

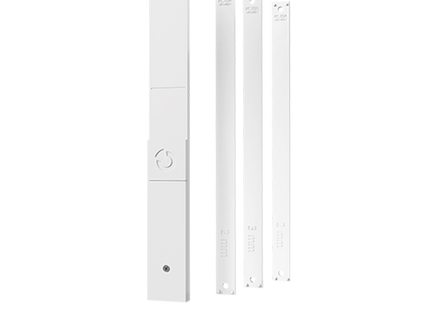

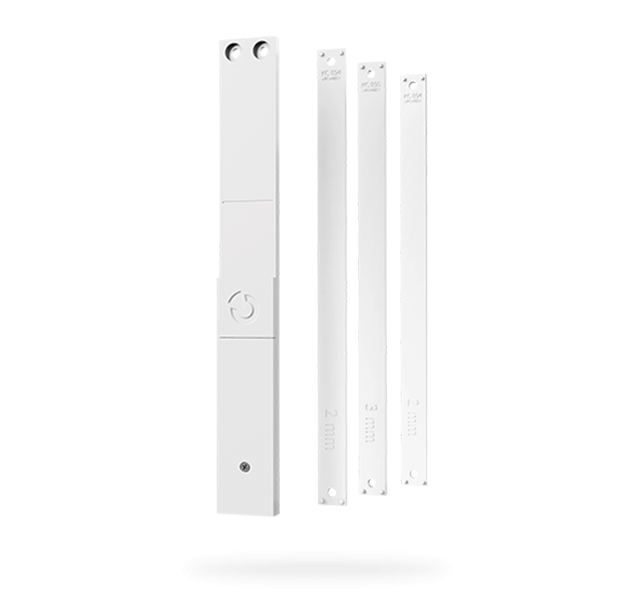

The product is a wireless system device for the JABLOTRON 100+. Used to detect windows or doors being opened. This version is designed for concealed installation on window or door frames.

Specifications:

Current 2x lithium battery, type CR2032 (3.0 V/0.2 Ah)
Please note: batteries are not included
Typical battery life approx. 2 years
Low battery voltage <2.4V
Current consumption 4 μA
Maximum power consumption 40mA
Communication tape 868.1 MHz, JABLOTRON protocol
RF range approx. 300 m (open area)
Dimensions 191x24x7mm
Weight (without batteries) 32 grams
Classification Class 2/II. Indoor general (According to EN 50131-1)
Operational environment extensive within general
Operational temperature range -20 °C to +60 °C
Average operational humidity 75% RH, non-condensing
Certification Body Trezor Test sro (no. 3025)
Also complies EN 50131-1 edition 2+A1+A2, EN 50131-2-6, EN 50131-5-3+A1, EN 50131-6 edition. 2+A1, ETSI EN 300 220-1-2, EN 50130-4 edition. 2+A1, EN 55032, EN 62368-1, EN 50581
Can be operated according to ERC REC 70-30

JA-152M, Wireless built-in door detector for Pro Series

Product form

In stock, delivery time 1 to 3 working days

€125,87 Incl. VAT

    • Free shipping from €99
    • Free returns within 30 days

    Description

    JA-152M, Wireless built-in door detector for Pro Series

    The product is a wireless system device for the JABLOTRON 100+. Used to detect windows or doors being opened. This version is designed for concealed installation on window or door frames.

    Specifications:

    Current 2x lithium battery, type CR2032 (3.0 V/0.2 Ah)
    Please note: batteries are not included
    Typical battery life approx. 2 years
    Low battery voltage <2.4V
    Current consumption 4 μA
    Maximum power consumption 40mA
    Communication tape 868.1 MHz, JABLOTRON protocol
    RF range approx. 300 m (open area)
    Dimensions 191x24x7mm
    Weight (without batteries) 32 grams
    Classification Class 2/II. Indoor general (According to EN 50131-1)
    Operational environment extensive within general
    Operational temperature range -20 °C to +60 °C
    Average operational humidity 75% RH, non-condensing
    Certification Body Trezor Test sro (no. 3025)
    Also complies EN 50131-1 edition 2+A1+A2, EN 50131-2-6, EN 50131-5-3+A1, EN 50131-6 edition. 2+A1, ETSI EN 300 220-1-2, EN 50130-4 edition. 2+A1, EN 55032, EN 62368-1, EN 50581
    Can be operated according to ERC REC 70-30
