Description

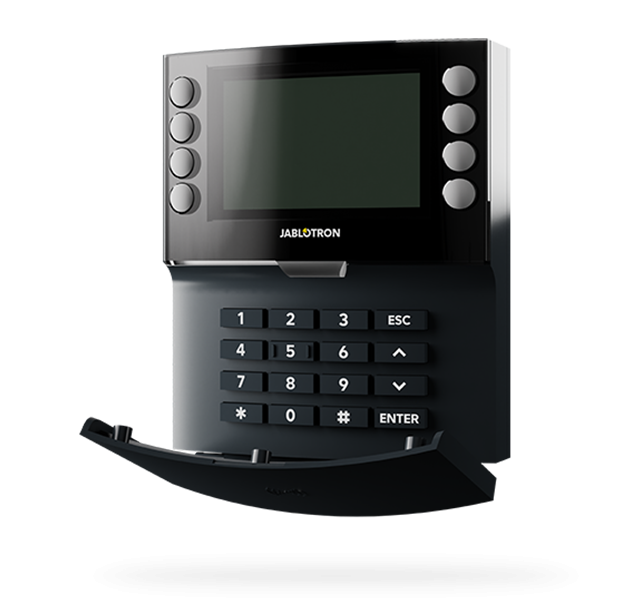

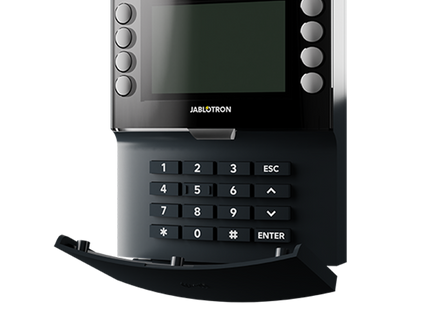

JA-155E-AN, Wireless keypad with four-segment keypad, LCD and RFID reader
The keyboard is a wireless part of the JABLOTRON system. It is used to control and display the system status indication. It is equipped with four segments; their descriptions are displayed on the LCD screen. The device must be installed by a trained technician with a valid certificate issued by an authorized distributor. The keyboard is compatible with the following control panels JA-102K, JA-103K, JA-107K and JA-152KR.
Specifications:
Power source
- 4 x alkaline batteries, type: AA (LR6) 1.5 V
- Warning batteries are not included.
- Typical battery life 1-2 years
- LowBatt condition <4.5 V
- Rated current draw (6 V) 245 μA
- Maximum power consumption (6 V) 115 mA
- External power source 12 V +/-1 V typ. 45 mA, max. 100 mA
- Maximum cable length 3 m
- Communication band 868.1 MHz, JABLOTRON protocol
- Maximum radio frequency power (ERP) <25 mW
- Communication range approx. 200 m (open area)
- RFID frequency 125 kHz
- Maximum RFID magnetic field strength -5.4 dBμA/m (measured at 10 m)
Dimensions
- 110 x 136 x 33mm
- Weight (without batteries)
- 285g
Classification
- Security class 2/Environmental class II (according to EN 50131-1)
- General environment
General
- Operating temperature range
- -10 °C to +40 °C
Average operational humidity
- 75% RH, non-condensing
- Certification body
- Trezor Test s.r.o. (no. 3025)
In accordance with
- ETSI EN 300 220-1,-2, ETSI EN 300 3300, EN 50130-4, EN 55032, EN 62368-1, EN 50581, EN 50131-1, EN 50131-3, EN 50131-5-3, EN 50131-6
- Conditions of use according to general authorization
- ERC REC 70-03
