Description

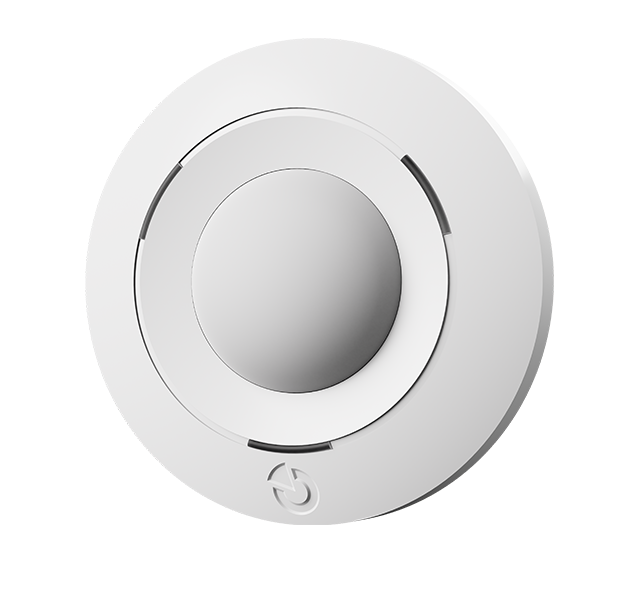

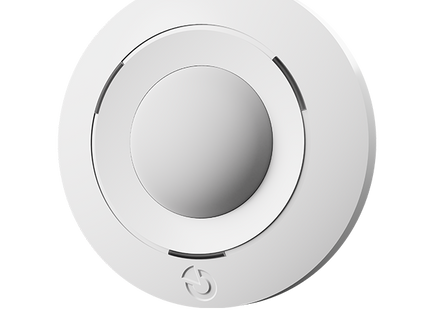

JA-155P, motion detector PIR Ceiling
This detector is designed to detect human body movements in buildings
The product is installed on the ceiling and its guaranteed detection range is 360° with a recording radius of up to 5.5 m at a mounting height of 3.5 m
False alarm resistance can be set to two levels
The detector has a pulse response and occupies one position in the system
Attention!! Only works on the JA-103 and JA-107 control panels
Specifications:
| Power |
2x lithium batteries, type CR123A (3 V/1500 mAh)
Warning: batteries are not included.
| Number of batteries |
1x CR123A |
2x CR123A |
| Lifetime (Smartwatch mode) |
2 years |
4 years |
|
| Low battery voltage |
<2.4V |
| Communication band |
868.1 MHz, JABLOTRON protocol |
| RF range |
up to 300 m (open area) |
| Recommended installation height |
2.5 – 3.5 m above the ground level |
| Detection coverage |
360°/11 m (installation height – 3.5 m) |
| Dimensions |
Ø 125 x 40 mm |
| Weight (without batteries) |
124g |
| Classification |
security grade 2/II. Indoor general (according to EN 50131-1) |
| Operational environment |
indoor general |
| Operational temperature range |
-10 °C to +40 °C |
| Average operational humidity |
75% RH, non-condensing |
| Certification body |
Trezor Test s.r.o. (no. 3025) |
| Complies with |
EN 50131-1 ed. 2+A1+A2, EN 50131-2-2, EN 50131-5-3+A1, ETSI EN 300 220-1,-2, EN 50130-4 ed. 2+A1, EN 55032, EN 62368-1, EN 50581 |
| Can be operated according to |
ERC REC 70-03 |
