Description

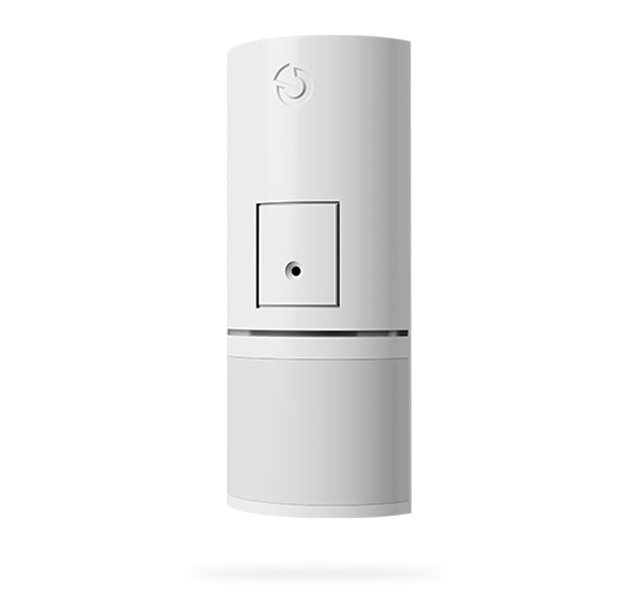

JA-162PB-WH, PIR motion detector with wireless glass break sensor
This device is part of the JABLOTRON system. It is used for the detection of movement in the interior of buildings and for the detection of breaking windows. This detector combines two sensors (PIR motion and BMS acoustics) in one housing. The detector occupies two positions in the system.
Specifications:
Nutrition
- 2x Lithium battery CR123A (3.0 V/1.5 Ah)
- Warning batteries are not included.
- Battery life approx. 3 years
- Low battery voltage <2.7 V
- Nominal current draw 50 uA
- Maximum current draw 50 mA
Communication tape
- 868.1 MHz, JABLOTRON protocol
- Maximum radio frequency power (ERP) <25 mW
- RF range 500 m (open area)
- Recommended installation height 2.5 m above the floor
- PIR detection angle/range 90°/12 m
- BMS detection angle/range 90°/9 m
Dimensions
- 150 x 63 x 40mm
- Weight (without batteries) 135 g
Classification
- Security class 2/Environmental class II (according to EN 50131-1)
- General environment
- General
Operating temperature range
Average operational humidity
Certification body
- Trezor Test s.r.o. (no. 3025)
In accordance with
- ETSI EN 300 220-1.2, EN 50130-4, EN 55032, EN IEC 62368-1, EN IEC 63000, EN 50131-1, EN 50131-2-2, EN 50131-2-7-1, EN 50131-5-3, EN 50131-6
Can be operated according to
Recommended screw
- 2 x ø 3.5 x 40 mm (countersunk head)
