Description

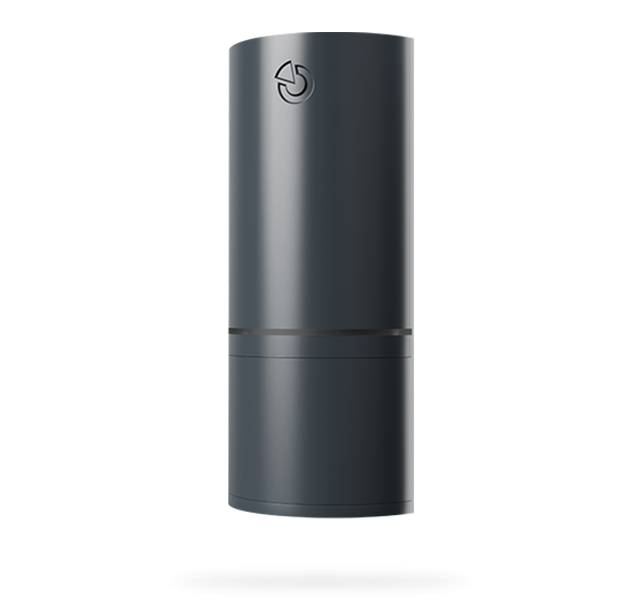

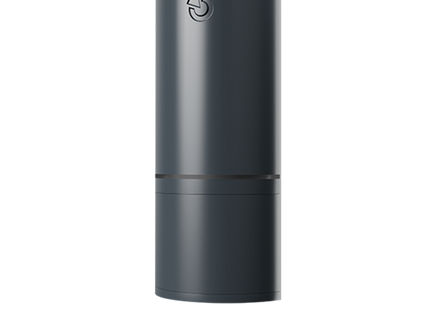

JA-162PW-AN, Wireless Designline Dual MW PIR anthracite
This product is a wireless device of the JABLOTRON 100+ system. This detector is designed to detect human body movements in buildings. High immunity against false alarms is achieved thanks to the combination of PIR and microwave (MW) detection. The detector works like a classic PIR detector, but if the PIR detects movement in a monitored area, the MW part activates and confirms the previous PIR activation.
Specifications:
Power source
- 2 lithium batteries, type CR123A (3 V/1500 mAh); batteries are not included
Typical battery life
Low battery charge
Quiescent current consumption
Maximum power consumption
Communication tape
- 868.1 MHz, JABLOTRON protocol
Maximum MW radio frequency power (Effective Radiated Power – ERP)
Communication range
- approx. 300 m (open space)
- Recommended installation height 2.2 – 2.5 m above floor level
- Detection angle/PIR coverage 90°/12 m
- Detection angle/MW coverage 80°/12 m
- MW frequency 24.125 GHz
- Maximum MW radio frequency power (Effective Radiated Power – ERP) 30 mW
Sizes
- 150 x 63 x 40mm
- Weight (without batteries) 125 g
Classification
- Safety grade 2/Environmental class II (according to EN 50131-1)
Operational temperature range
- -10 °C to +40 °C
- Average operational humidity
- 75% relative humidity, no condensation
Certification body
- Trezor Test s.r.o. (no. 3025)
- In accordance with
- ETSI EN 300 440, EN 50130-4, EN 55032, EN 62368-1, EN 50581, EN 50131-1, EN 50131-2-4
- Operating conditions according to general authorization
- ERC REC 70-03
