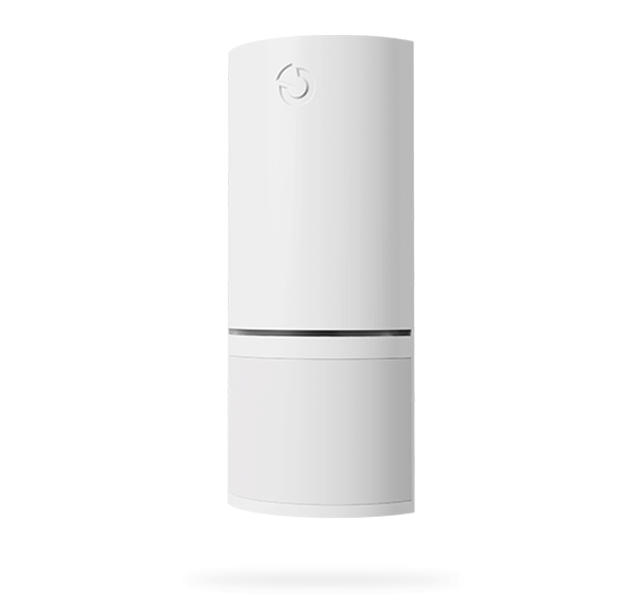

JA-162PW | Wireless Designline | Dual MW PIR |

This product is a wireless device of the JABLOTRON 100+ system. This detector is designed to detect human body movements in buildings. High immunity against false alarms is achieved thanks to the combination of PIR and microwave (MW) detection. The detector works like a classic PIR detector, but if the PIR detects movement in a monitored area, the MW part activates and confirms the previous PIR activation.

Specifications:

Power supply	2x lithium battery, type: CR123A (3 V/1500 mAh) Please note: Batteries are not included.
Typical battery life	4 years
LowBatt status	<2.7V
Quiescent current consumption	65 μA
Maximum power consumption	50mA
Communication tape	868.1 MHz, JABLOTRON protocol
Maximum radio frequency power (ERP)	25mW
Communication range	approx. 300 m (open area)
Recommended installation height	2.2 – 2.5 m above floor level
PIR detection angle/detection coverage	90°/12 meters
Detection angle/detection coverage MW	80°/12 meters
Operational frequency MW	24.125GHz
Maximum radio frequency power (ERP)	30mW
Dimensions	63x150x40mm
Weight (without batteries)	125 grams
Classification	Safety class 2/Environmental class II (according to EN 50131-1)
Operating temperature range	-10 °C to +40 °C
Average operating humidity	75% RH, without condensation
Certification Body	Trezor Test sro (no. 3025)
In accordance with	ETSI EN 300 220-1,-2, ETSI EN 300 440, EN 50130-4, EN 55032, EN 62368-1, EN 50581, EN 50131-1, EN 50131-2-4, EN 50131-5-3, EN 50131-6
Operating conditions according to general authorization	ERC REC 70-03

JA-162PW | Wireless Designline | Dual MW PIR |

Jablotron
Share this product
- WhatsApp
- Share
- X
- Messenger
- Email

Product form

In stock, delivery time 1 to 3 working days

€199,35 Incl. VAT

Free shipping from €99

Free returns within 30 days

Associated products

Choose this product

Gift wrap my product
€5,90

Description

JA-162PW | Wireless Designline | Dual MW PIR |

This product is a wireless device of the JABLOTRON 100+ system. This detector is designed to detect human body movements in buildings. High immunity against false alarms is achieved thanks to the combination of PIR and microwave (MW) detection. The detector works like a classic PIR detector, but if the PIR detects movement in a monitored area, the MW part activates and confirms the previous PIR activation.

Specifications:

Power supply	2x lithium battery, type: CR123A (3 V/1500 mAh) Please note: Batteries are not included.
Typical battery life	4 years
LowBatt status	<2.7V
Quiescent current consumption	65 μA
Maximum power consumption	50mA
Communication tape	868.1 MHz, JABLOTRON protocol
Maximum radio frequency power (ERP)	25mW
Communication range	approx. 300 m (open area)
Recommended installation height	2.2 – 2.5 m above floor level
PIR detection angle/detection coverage	90°/12 meters
Detection angle/detection coverage MW	80°/12 meters
Operational frequency MW	24.125GHz
Maximum radio frequency power (ERP)	30mW
Dimensions	63x150x40mm
Weight (without batteries)	125 grams
Classification	Safety class 2/Environmental class II (according to EN 50131-1)
Operating temperature range	-10 °C to +40 °C
Average operating humidity	75% RH, without condensation
Certification Body	Trezor Test sro (no. 3025)
In accordance with	ETSI EN 300 220-1,-2, ETSI EN 300 440, EN 50130-4, EN 55032, EN 62368-1, EN 50581, EN 50131-1, EN 50131-2-4, EN 50131-5-3, EN 50131-6
Operating conditions according to general authorization	ERC REC 70-03
