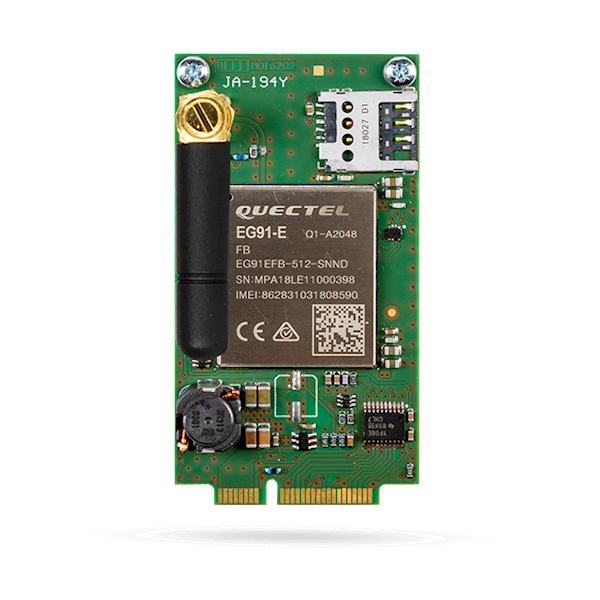

JA-194Y, GSM 4G dialer for the JA-103K/107K

Description

Main features:

-  4G Chooser for the Jablotron 103K and 107K systems
-  Power source for the module 9-15 V DC (from the control panel)
-  Average power consumption 9 mA (depending on GSM signal strength)
-  Current power consumption 720 mA
-  2G (GSM, EDGE) 900/1800 MHz GSM communication band
-  3G 900/2100 MHz (B8, B1) GSM communication band
-  4G (LTE) 800/900/1800/2100/2600 MHz (B20,B8,B3,B1,B7) GSM communication band
-  I&HAS classification Safety grade 2/Environmental class II
-  Dimensions/weight 70mm x 37mm x 25mm/23gr.
-  Operational environment General solution for internal use
-  Operating temperature -10°C to +40°C
-  Average operating humidity 75% RH, non-condensing
-  Compatible with RMT (ARC Receiver) According to communication protocols

JA-194Y, GSM 4G dialer for the JA-103K/107K

Product form

In stock, delivery time 1 to 3 working days

€498,48 Incl. VAT

    • Free shipping from €99
    • Free returns within 30 days

    Associated products

    • Jablotron JA-103K centrale met LAN aansluiting Jablotron JA-103K centrale met LAN aansluiting

      €495,17

    Description

    Main features:

    -  4G Chooser for the Jablotron 103K and 107K systems
    -  Power source for the module 9-15 V DC (from the control panel)
    -  Average power consumption 9 mA (depending on GSM signal strength)
    -  Current power consumption 720 mA
    -  2G (GSM, EDGE) 900/1800 MHz GSM communication band
    -  3G 900/2100 MHz (B8, B1) GSM communication band
    -  4G (LTE) 800/900/1800/2100/2600 MHz (B20,B8,B3,B1,B7) GSM communication band
    -  I&HAS classification Safety grade 2/Environmental class II
    -  Dimensions/weight 70mm x 37mm x 25mm/23gr.
    -  Operational environment General solution for internal use
    -  Operating temperature -10°C to +40°C
    -  Average operating humidity 75% RH, non-condensing
    -  Compatible with RMT (ARC Receiver) According to communication protocols
