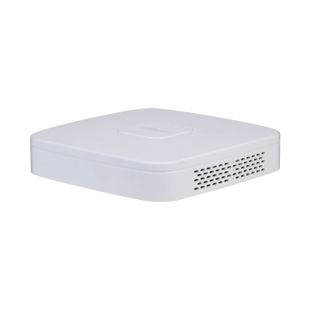

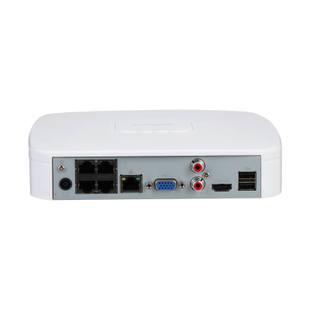

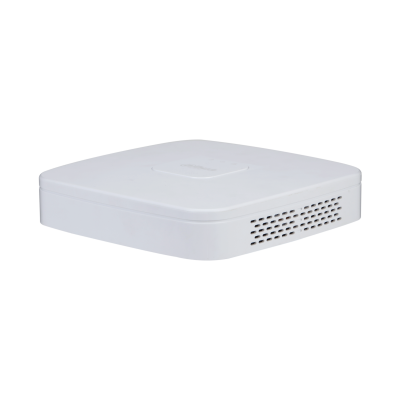

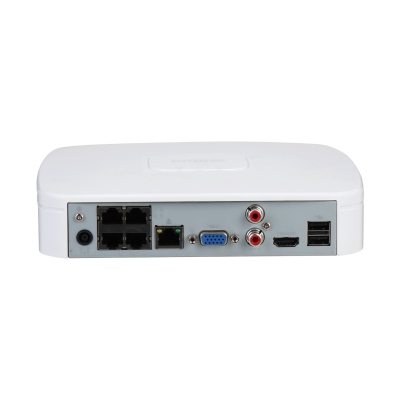

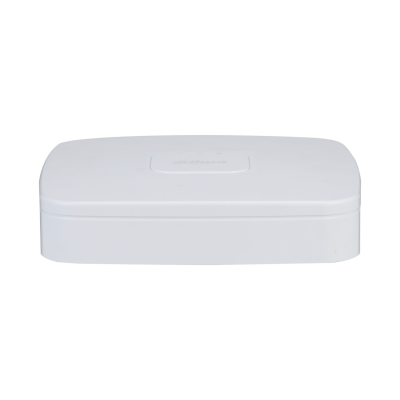

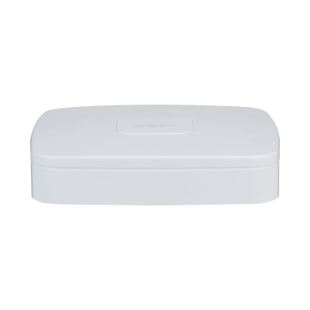

NVR2104-P-4KS3 Lite Series, 1x LAN 4x PoE Suitable for 4 IP cameras

Description

The DAHUA DHI-NVR2104-P-4KS3 is a compact (1 U) and powerful 4-channel 4K network video recorder with integrated PoE switch (4 ports). Ideal for small to medium installations such as homes, shops, offices and schools. This recorder supports one SATA hard drive up to 16 TB for local storage

Specifications:

  • Supports 4 IP cameras up to 12 MP resolution

  • 4 PoE ports (802.3af/at), max. 25.5 W per port, total 36 W

  • Recording bandwidth up to 80 Mbps (input/output), throughput up to 60 Mbps

  • Video decoding: up to 6× 1080p@30fps or 1× 12 MP stream

  • Video compression: Smart H.265+/H.265 and Smart H.264+/H.264

  • Video outputs: 1× HDMI (max. 4K), 1× VGA (simultaneous)

  • Audio: 1 audio in and 1 audio out, PCM, G.711A/U, G.726 codecs

  • AI features: Perimeter Protection, SMD Plus, AI Search

  • Recording modes: continuous, schedule, motion, alarm triggered

  • Playback: up to 4 channels simultaneously, frame-by-frame, USB backup

  • Network protocols: HTTP/HTTPS, TCP/IP, RTSP, DHCP, DNS, SMTP, UPnP, DDNS, P2P, ONVIF

  • Mobile access: DMSS app for Android/iOS, P2P support

  • Management: Web interface, mouse, remote control

  • Alarms for motion detection, video loss, PIR, faults, HDD errors, IP conflicts, login lock

  • Processor: Embedded Linux

  • Network port: 1× 10/100 Mbps

  • USB: 2× USB 2.0

  • Power supply: 48–53 V DC, max. 10 W excluding HDD

  • Dimensions: 205 × 206 × 46 mm

  • Weight: approximately 0.48 kg

  • Temperature: -10 °C to +55 °C

  • Relative humidity: 10–93%

NVR2104-P-4KS3 Lite Series, 1x LAN 4x PoE Suitable for 4 IP cameras

Product form

In stock, delivery time 1 to 3 working days

€179,00 €139,00 Incl. VAT

      • Free shipping from €99
      • Free returns within 30 days

      Description

      The DAHUA DHI-NVR2104-P-4KS3 is a compact (1 U) and powerful 4-channel 4K network video recorder with integrated PoE switch (4 ports). Ideal for small to medium installations such as homes, shops, offices and schools. This recorder supports one SATA hard drive up to 16 TB for local storage

      Specifications:

      • Supports 4 IP cameras up to 12 MP resolution

      • 4 PoE ports (802.3af/at), max. 25.5 W per port, total 36 W

      • Recording bandwidth up to 80 Mbps (input/output), throughput up to 60 Mbps

      • Video decoding: up to 6× 1080p@30fps or 1× 12 MP stream

      • Video compression: Smart H.265+/H.265 and Smart H.264+/H.264

      • Video outputs: 1× HDMI (max. 4K), 1× VGA (simultaneous)

      • Audio: 1 audio in and 1 audio out, PCM, G.711A/U, G.726 codecs

      • AI features: Perimeter Protection, SMD Plus, AI Search

      • Recording modes: continuous, schedule, motion, alarm triggered

      • Playback: up to 4 channels simultaneously, frame-by-frame, USB backup

      • Network protocols: HTTP/HTTPS, TCP/IP, RTSP, DHCP, DNS, SMTP, UPnP, DDNS, P2P, ONVIF

      • Mobile access: DMSS app for Android/iOS, P2P support

      • Management: Web interface, mouse, remote control

      • Alarms for motion detection, video loss, PIR, faults, HDD errors, IP conflicts, login lock

      • Processor: Embedded Linux

      • Network port: 1× 10/100 Mbps

      • USB: 2× USB 2.0

      • Power supply: 48–53 V DC, max. 10 W excluding HDD

      • Dimensions: 205 × 206 × 46 mm

      • Weight: approximately 0.48 kg

      • Temperature: -10 °C to +55 °C

      • Relative humidity: 10–93%
