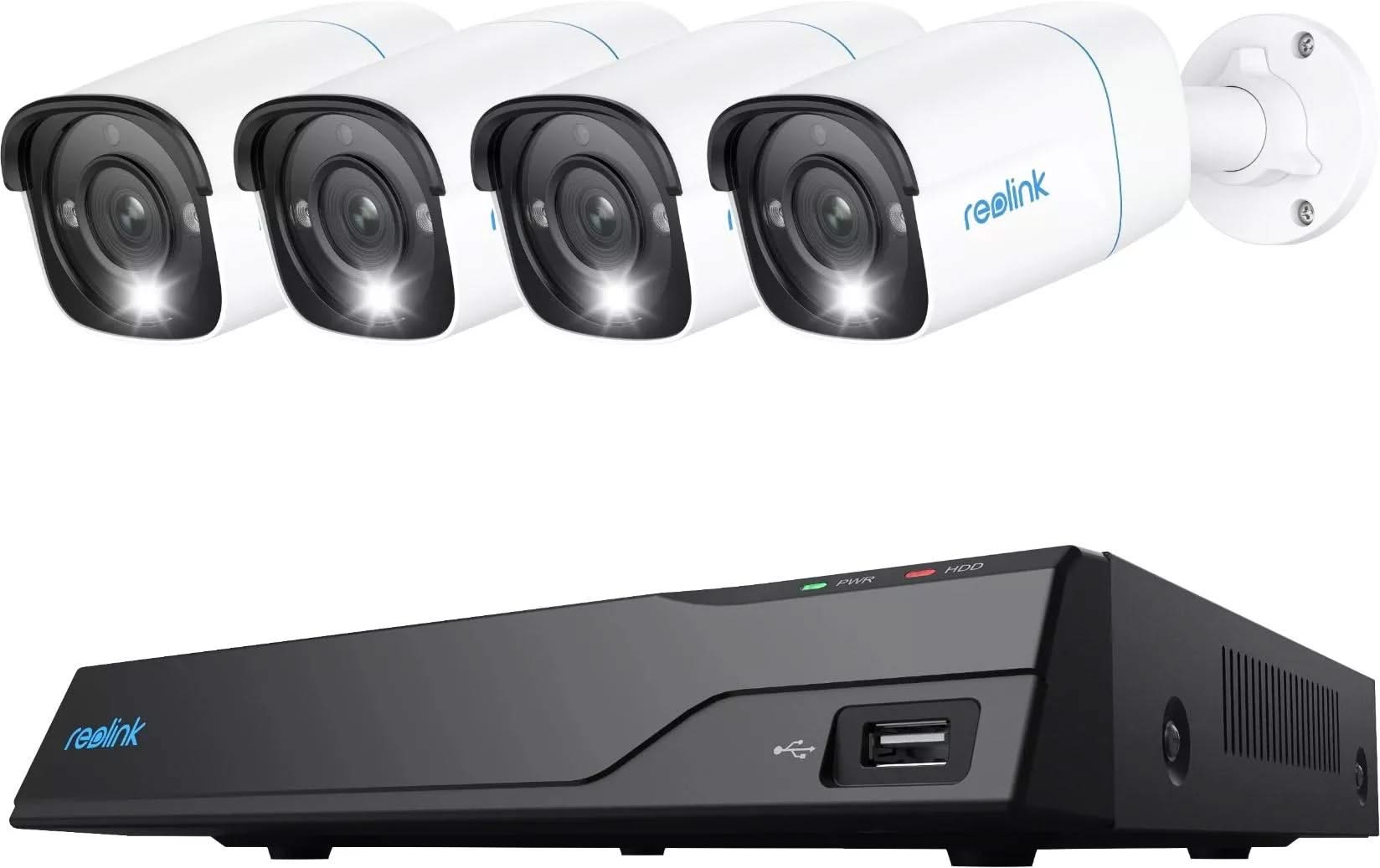

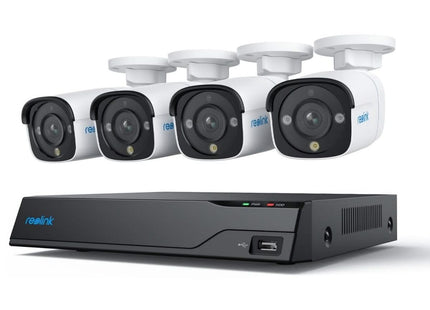

NVS8-8MB4, Security Kit 2TB, 8MP 4K, PoE and smart detection

Description

This security system is equipped with advanced smart detection technology and is intelligent enough to distinguish people and cars from other objects. The system gives you real peace of mind as there are no more false alarms.

4K Ultra HD (8MP, 3840 x 2160) delivers nearly 4 times the clarity of 1080p and surpasses 5MP/4MP Super HD by a wide margin. This superior kit can vividly reproduce the finest important details even when you zoom in digitally, clearing up any ambiguity in video footage you may have encountered before.

The 18 powerful infrared LEDs in each 4K security camera emit invisible lights that pierce the darkness up to 100 feet. Additionally, advanced 3D DNR technology significantly reduces noise levels, ensuring clearer, sharper and smoother nighttime performance.

A real plug and play security system! It features PoE (Power over Ethernet) and only requires a network cable for both power and video signal transmission. Easy Wiring – The wiring process couldn't be easier for DIYers and beginners.

With a pre-installed 2TB HDD and up to 12TB storage capacity, this 8-channel 4K security camera system supports simultaneous live feed and 24/7 recording from all cameras. You'll have videos all day long without missing a beat.

You can place these 4K Ultra HD PoE cameras anywhere, outdoors or indoors! With an IP67 waterproof rating, these cameras will never shy away from the elements, including icy conditions, heavy snow, extreme cold and heat.

Specifications:

Model: Reolink NVS8-8MB4

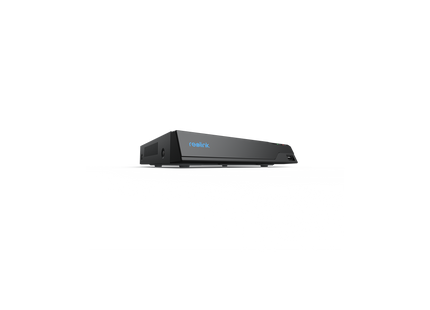

Model Model NVR NVS8
Product name 8 Channel 12MP PoE NVR
External interface Video off 1 VGA, 1 HDMI
Audio port 1 audio out channel, RCA
USB ports 2x USB 2.0
Ethernet ports 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface for LAN/WAN
8, RJ-45 10/100 Mbps Self-Adaptive PoE Ethernet Interface for IP Cameras
Video/Audio output Video input PoE IP camera x 8
Video output HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
VGA: 1920x1080, 1280x1024, 1280x720, 1024x768
Audio input Cameras with built-in microphone
Record
 		Live View/Playback 12MP/8MP/5MP/4MP/3MP/1080P/720P
Video compression H.265, H.264
Synchronous playback 1-4 channels (supports 1-channel playback when viewing in 8MP or higher resolution)
Recording modes Person detection, vehicle detection, pet detection, motion activated detection, 24/7
Storage Internal HDD 1 SATA interface (1x 2TB HDD pre-installed)
Capacity Up to 12TB (max 6TB for each HDD)
External HD 1 eSATA interface for HDD
PoE Max current per port 25W
Standard IEEE 802.3af/at
Network Network Protocol HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP
Browser Edge, Firefox, Chrome, Safari
OS  PC: Windows, Mac OS;  SmartPhone: iOS, Android
Max. users 20 users (1 admin and 19 user accounts); supports up to 12 video streams simultaneously (10 substreams and 2 mainstreams)
General

 		Work environment Temperature: -10C~+45C, Humidity: 10%~90%
Current DC 48~53V
Power consumption <10W (without HDD&PoE)
Dimension(mm) 260x41x230
Weight (without HDD) 1.4kg
Warranty 2 years

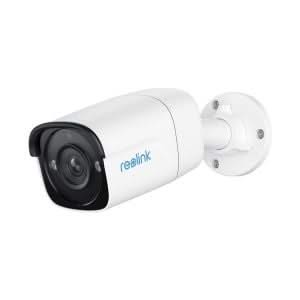

Camera model: P330
Video & Audio


 		Sensor 1/2.49" CMOS Sensor
Video resolution Standard: 3840 x 2160 (8 Megapixel) @25fps
Lens f=2.8mm fixed; F=2.0 with IR cut
Video format H.265
Viewing angle Horizontal: 105°, Vertical: 56°
Night vision Up to 30 meters (LED: 2pcs/1.8W/850nm)
Spotlight 1 pc/4.3W/6500K/700lum
Day/night mode IR cut filter with auto switching
Audio Built-in microphone
Current

 		PoE IEEE 802.3af, 48V Active
Power supply DC12V-1A, <12W
Software features Frame rate Main Stream 2fps - 25fps (default 25fps)
Sub Stream 4fps - 15fps (default 10fps)
Code rate Main Stream: 2048Kbps x 8192Kbps (default 6144Kbps)
Sub Stream: 64Kbps x 512Kbps (default 256 Kbps)
Browser Edge, Chrome, Firefox, Safari
OS PC: Windows, Mac OS; Smartphone: iOS, Android
Smart alarm Motion, person, vehicle and pet detection
Protocols HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Users 20 users (1 admin and 19 user accounts); supports up to 12 video streams simultaneously (10 substreams and 2 mainstreams)
Works with Google Assistant, Reolink NVR
Recording modes Motion-activated (default), on schedule
Interface


 		System Reset button
Current DC power port
Ethernet One 10M/100Mbps RJ45
Storage Micro SD card slot (max 256GB)
General Work environment Operating temperature -10° ~ 55° C;
Operating humidity 10%~90%
Waterproof IP66
Dimension 68x63x188mm
Weight 452 gr



NVS8-8MB4, Security Kit 2TB, 8MP 4K, PoE and smart detection

Product form

In stock, delivery time 1 to 3 working days

€549,99 Incl. VAT

      • Free shipping from €99
      • Free returns within 30 days

      Description

      This security system is equipped with advanced smart detection technology and is intelligent enough to distinguish people and cars from other objects. The system gives you real peace of mind as there are no more false alarms.

      4K Ultra HD (8MP, 3840 x 2160) delivers nearly 4 times the clarity of 1080p and surpasses 5MP/4MP Super HD by a wide margin. This superior kit can vividly reproduce the finest important details even when you zoom in digitally, clearing up any ambiguity in video footage you may have encountered before.

      The 18 powerful infrared LEDs in each 4K security camera emit invisible lights that pierce the darkness up to 100 feet. Additionally, advanced 3D DNR technology significantly reduces noise levels, ensuring clearer, sharper and smoother nighttime performance.

      A real plug and play security system! It features PoE (Power over Ethernet) and only requires a network cable for both power and video signal transmission. Easy Wiring – The wiring process couldn't be easier for DIYers and beginners.

      With a pre-installed 2TB HDD and up to 12TB storage capacity, this 8-channel 4K security camera system supports simultaneous live feed and 24/7 recording from all cameras. You'll have videos all day long without missing a beat.

      You can place these 4K Ultra HD PoE cameras anywhere, outdoors or indoors! With an IP67 waterproof rating, these cameras will never shy away from the elements, including icy conditions, heavy snow, extreme cold and heat.

      Specifications:

      Model: Reolink NVS8-8MB4
      Model Model NVR NVS8
      Product name 8 Channel 12MP PoE NVR
      External interface Video off 1 VGA, 1 HDMI
      Audio port 1 audio out channel, RCA
      USB ports 2x USB 2.0
      Ethernet ports 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface for LAN/WAN
      8, RJ-45 10/100 Mbps Self-Adaptive PoE Ethernet Interface for IP Cameras
      Video/Audio output Video input PoE IP camera x 8
      Video output HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
      VGA: 1920x1080, 1280x1024, 1280x720, 1024x768
      Audio input Cameras with built-in microphone
      Record
             		Live View/Playback 12MP/8MP/5MP/4MP/3MP/1080P/720P
      Video compression H.265, H.264
      Synchronous playback 1-4 channels (supports 1-channel playback when viewing in 8MP or higher resolution)
      Recording modes Person detection, vehicle detection, pet detection, motion activated detection, 24/7
      Storage Internal HDD 1 SATA interface (1x 2TB HDD pre-installed)
      Capacity Up to 12TB (max 6TB for each HDD)
      External HD 1 eSATA interface for HDD
      PoE Max current per port 25W
      Standard IEEE 802.3af/at
      Network Network Protocol HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP
      Browser Edge, Firefox, Chrome, Safari
      OS  PC: Windows, Mac OS;  SmartPhone: iOS, Android
      Max. users 20 users (1 admin and 19 user accounts); supports up to 12 video streams simultaneously (10 substreams and 2 mainstreams)
      General

             		Work environment Temperature: -10C~+45C, Humidity: 10%~90%
      Current DC 48~53V
      Power consumption <10W (without HDD&PoE)
      Dimension(mm) 260x41x230
      Weight (without HDD) 1.4kg
      Warranty 2 years
      Camera model: P330
      Video & Audio


             		Sensor 1/2.49" CMOS Sensor
      Video resolution Standard: 3840 x 2160 (8 Megapixel) @25fps
      Lens f=2.8mm fixed; F=2.0 with IR cut
      Video format H.265
      Viewing angle Horizontal: 105°, Vertical: 56°
      Night vision Up to 30 meters (LED: 2pcs/1.8W/850nm)
      Spotlight 1 pc/4.3W/6500K/700lum
      Day/night mode IR cut filter with auto switching
      Audio Built-in microphone
      Current

             		PoE IEEE 802.3af, 48V Active
      Power supply DC12V-1A, <12W
      Software features Frame rate Main Stream 2fps - 25fps (default 25fps)
      Sub Stream 4fps - 15fps (default 10fps)
      Code rate Main Stream: 2048Kbps x 8192Kbps (default 6144Kbps)
      Sub Stream: 64Kbps x 512Kbps (default 256 Kbps)
      Browser Edge, Chrome, Firefox, Safari
      OS PC: Windows, Mac OS; Smartphone: iOS, Android
      Smart alarm Motion, person, vehicle and pet detection
      Protocols HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
      Users 20 users (1 admin and 19 user accounts); supports up to 12 video streams simultaneously (10 substreams and 2 mainstreams)
      Works with Google Assistant, Reolink NVR
      Recording modes Motion-activated (default), on schedule
      Interface


             		System Reset button
      Current DC power port
      Ethernet One 10M/100Mbps RJ45
      Storage Micro SD card slot (max 256GB)
      General Work environment Operating temperature -10° ~ 55° C;
      Operating humidity 10%~90%
      Waterproof IP66
      Dimension 68x63x188mm
      Weight 452 gr
