Description

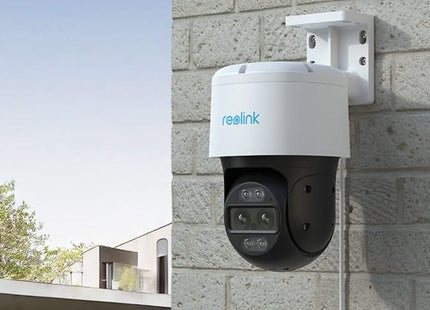

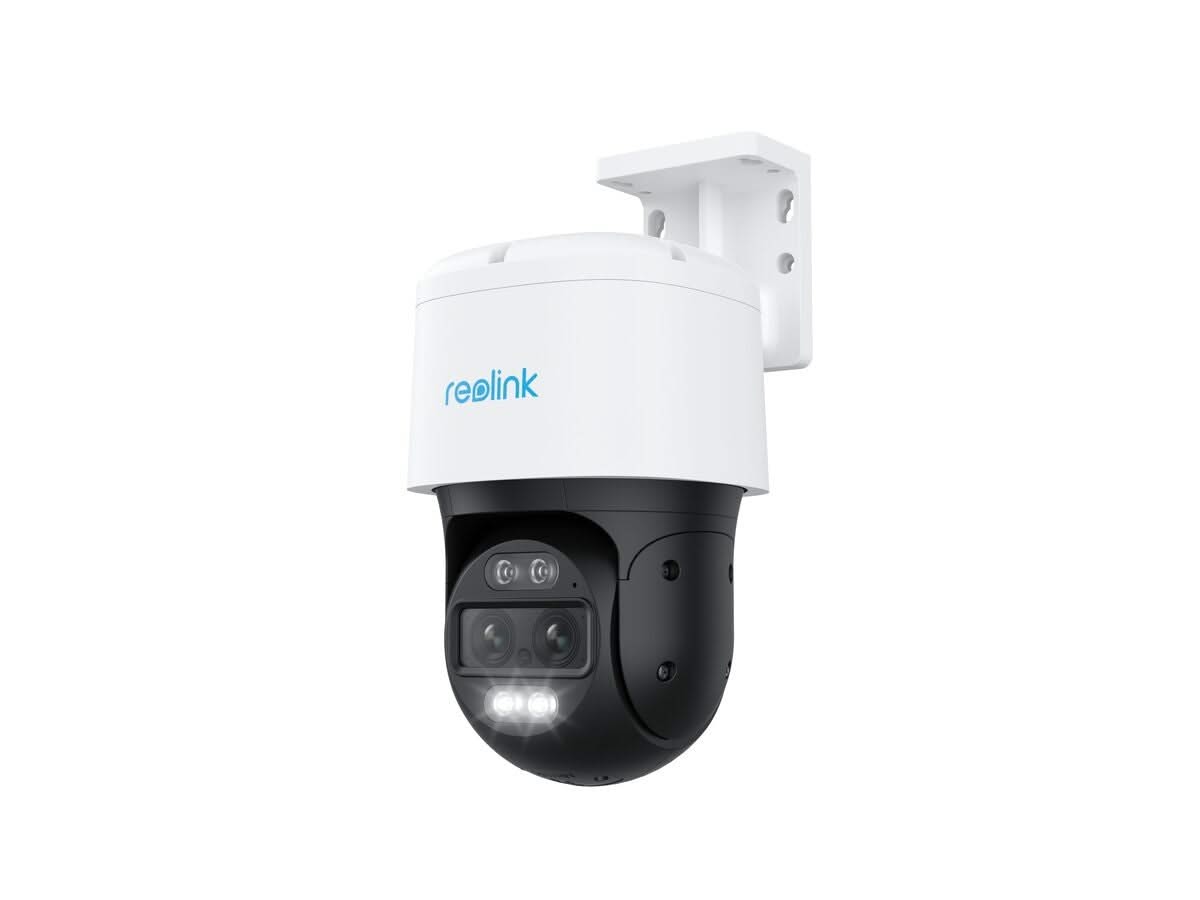

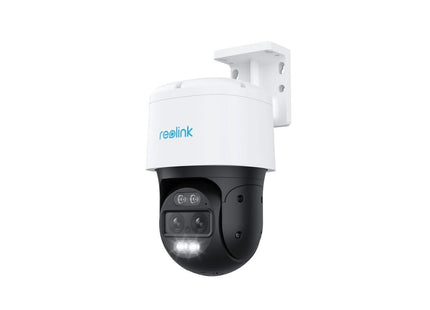

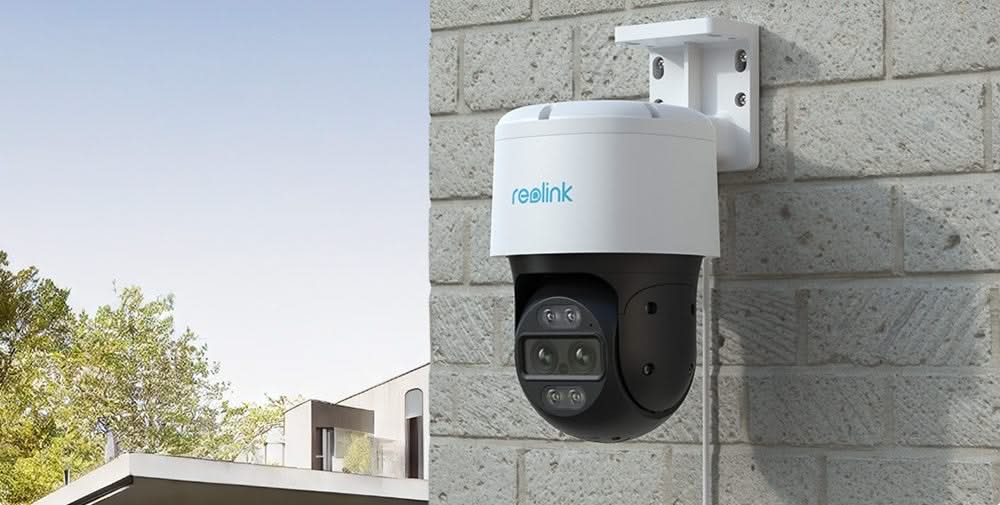

P760, 4K Dual-lens PTZ camera with motion tracking and PoE
TrackMix Series P760 can distinguish people, vehicles and pets from other objects, providing more accurate alerts. Plus, you can talk back via the camera's built-in microphone and speaker.
When the spotlights are on, the TrackMix Series P760 provides full-color night vision. Even when there is no light at all, the infrared LED still enables high-quality night recording videos.
Thanks to Power over Ethernet (PoE) technology, this IP camera can transmit videos and be charged at the same time via just one network cable. You can install this camera quickly and neatly.
The TrackMix Series P760 supports time-lapse video recording. For example, you can film the snow accumulating in your backyard or record the construction process in minutes.
The robust housing and body make this Reolink smart IP camera waterproof. It works perfectly both inside and outside your home, in all harsh weather conditions.
This smart IP camera supports 24/7 continuous, motion-controlled or scheduled recording. All videos can be saved to the microSD card, Reolink NVR or FTP server. Choose a way you like and enjoy custom security.
If you want to store videos for a longer period of time or manage multiple cameras, you can easily connect this camera to a Reolink NVR.
Once the camera detects a suspicious object, it automatically tracks it and immediately sends a push notification to your device.
Watch live what's happening with both the wide-angle view and the close-up view on the same screen. Easy and intuitive
- Specifications:
- Video and audio
- Image sensor - 1/3"+1/2.8" CMOS sensor
- Video resolution - Up to: 3840 x 2160 (8.0 megapixels) at 25 frames/sec Lens f=2.8mm at F=1.6，f=8mm at F=1.6
- Video format - H.264, H.265
- Field of View - • Horizontal: 104°-38° • Vertical: 60°-21°
- Zoom mode - 6x hybrid zoom
- Day night - IR cut filter with automatic switching
- Infrared night vision - Up to 30 meters (100ft) (LED: 2pcs/850nm)
- Color night vision - Spotlights: 2 pieces/6500K/450 lumens
- Sound - Two-way audio
Current
- PoE - IEEE 802.3af, 48V active
- DC power - DC 12.0 V⎓2 A, <12 W
Couple
- Power - DC power port
- System - Reset button
- Ethernet - One 10M/100Mbps RJ45
- Storage - Micro SD card slot (max. 256 GB)
- Sound - Built-in microphone and speaker
Pan and tilt
- Pan & Tilt Range Pan: 355°, Tilt: 0°~90°
- Pan speed - 2.5°-90°/s (Speed adjustable)
- Tilt speed - 1.5°-60°/s (Speed adjustable)
- Preset - 32
- Auto Tracking - Support
Software features
- Frame rate • Main stream: 2 fps - 25 fps • Sub stream: 4 fps - 20 fps
- Code rate • Main stream: 4096 Kbps -8192 Kbps • Substream: 128Kbps -1228Kbps
- Supported browsers - Edge, Chrome, Firefox, Safari
- Supported operating system - PC: Windows, Mac OS; Smartphone: iOS, Android
- Smart alarms - Motion detection; person detection; vehicle detection; pet detection
- Recording modes - Motion/scheduled recording (default: motion recording)
- Tracking method - Digital tracking; Pan/Tilt tracking first; Digital tracking first
- Protocols and standards - HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
- Maximum User Access - Supports up to 12 simultaneous video streams (10 substreams and 2 mainstreams) 20 users (1 administrator account and 19 user accounts);
- Work with - Google Assistant
Work environment
- Temperature - Operating temperature: -10°C~+55°C (14°F~131°F)
- Humidity - Operating Humidity: 10% ~ 90%
- Water resistant - IP65
Dimensions and weight
- Dimension - 228*147*110mm
- Weight - 1.21 kg
