Description

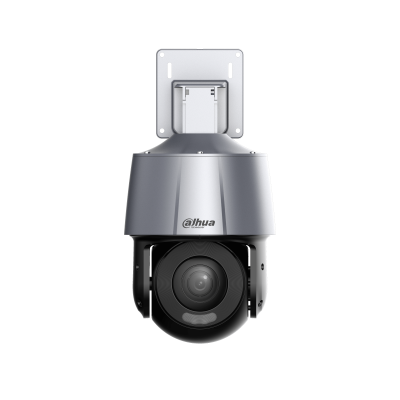

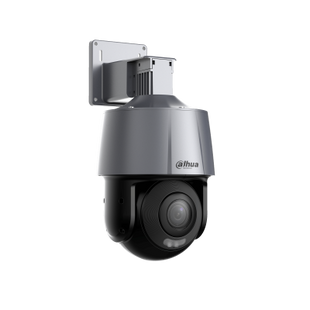

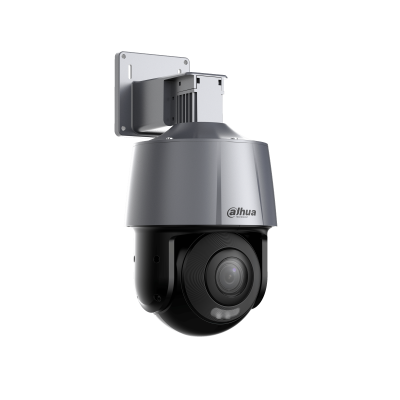

The Dahua SD3A400-GN-A-PV is a versatile and intelligent PT (Pan-Tilt) network camera from the Dahua Lite series. This rugged and compact camera is designed for reliable outdoor and indoor surveillance, with a 4 megapixel resolution and a range of advanced features that ensure optimal performance in a wide range of lighting conditions. With its built-in active deterrent (siren and flash), smart dual lighting (IR and white light), and smart video analysis (IVS), this is an excellent choice for those who take security seriously.
Specifications:
Camera
-
Sensor: 1/3" 4MP STARVIS™ CMOS
-
Resolution: 2560 × 1440 pixels
-
Minimal lighting:
-
Lighting type: 2 IR LEDs + 2 white light LEDs (up to 30 meters)
-
Electronic shutter speed: 1/3 s to 1/100,000 s
-
DORI distances:
-
Detection: 55.1 m
-
Observation: 21.9 m
-
Recognition: 10.6 m
-
Identification: 4.6 m
PTZ and Lens
-
Focal length: 4.0 mm (fixed lens)
-
Diaphragm: F1.6
-
Field of view:
-
Horizontal: 80.2°
-
Vertical: 43.1°
-
Diagonal: 94.3°
-
Pan range: 0° to 355°
-
Tilt range: -15° to 90°
-
Pan/Tilt speed:
-
Manual: Pan 0.1–26°/s, Tilt 0.1–17.5°/s
-
Preset: Pan 26°/s, Tilt 17.5°/s
-
Number of presets: 300
-
Power-off memory: Supported
-
Idle movement: Supported (preset activation)
Video and Audio
-
Video compression: H.265, H.264, MJPEG (substream)
-
Smart codec: Smart H.265+, Smart H.264+
-
Streams: 2 simultaneously
-
Supported resolutions:
-
4M (2560×1440)
-
1080p, 720p, D1, CIF
-
Frame rate: Up to 30 fps
-
Bitrate: 32 Kbps to 8192 Kbps
-
Day/Night function: Automatic (ICR), color, black/white
-
WDR: Digital WDR
-
Noise reduction: 2D and 3D
-
Audio:
-
Built-in microphone and speaker
-
Two-way audio
-
Supported codecs: G.711a/u, PCM, G.726, MPEG2-L2, G722.1
Smart Features
Network and Storage
-
Connection: RJ-45 (10/100 Base-T)
-
Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, SMTP, NTP, DHCP, etc.
-
Interoperability: ONVIF (Profiles S and T), CGI
-
Max. users: 20 simultaneously
-
Storage options:
-
Management platforms: DMSS, Smart PSS
-
Mobile apps: iOS and Android
Nutrition and Environment
-
Nutrition: 12 VDC ±10% or PoE (802.3af)
-
Consumption:
-
Temperature range: -30 °C to +60 °C
-
Humidity: Up to 95% RH
-
Protection: IP66, lightning, overvoltage and surge protection
Physical Properties
