Description

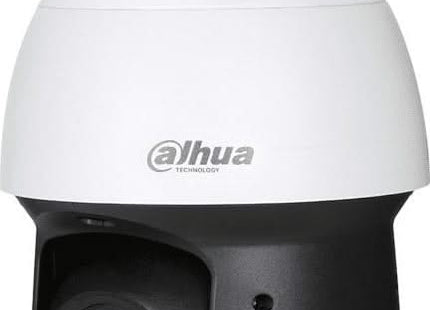

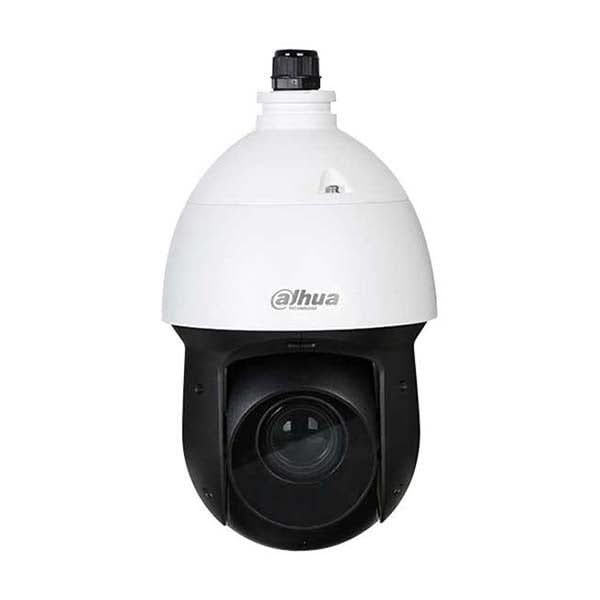

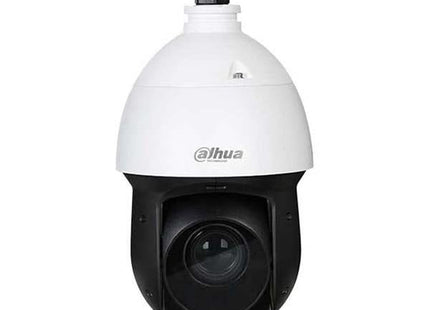

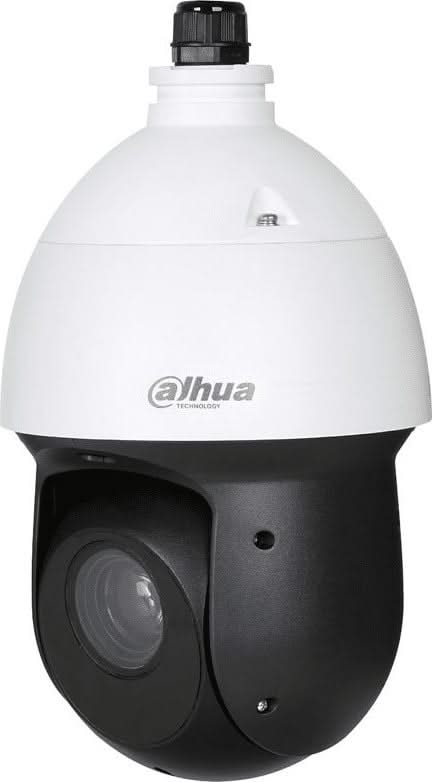

One of the most powerful HDCVI cameras that can be connected directly to your HDCVI recorder. This camera is the new successor to the DH-SD49225I-HC and has almost all the nice CCTV options on board. With this camera you won't miss anything.
The controllable zoom camera delivers a resolution of 1080P at 25/30 fps, with 25x optical zoom and has excellent low-light performance thanks to the latest starlight technology. With the Dahua PTZ Starlight it is now possible to make color recordings in very low light. Starlight cameras therefore have much better recognition.
This SD49225-HC-LA1 FULL HD Dahua PTZ Starlight is suitable for all HDCVI recorders that support 1080P.
This Dahua PTZ Starlight is suitable for indoor and outdoor mounting
Specifications:
- Camera
- Image Sensor - 1/2.8" STARVIS™ CMOS
- Pixel - 2MP
- Max. Resolution - 1920 (H) x 1080 (V)
- ROM - 16MB
- RAM - 256 MB
- Electronic Shutter Speed - 1/3 s–1/100000 s
- Scanning System - Progressive
- Min. Illumination
- Color: 0.005 Lux@F1.6
- B/W: 0.0005 Lux@F1.6
- 0 Lux@F1.6 (IR on)
- Illumination Distance - 100 m (328.08 ft)
- Illuminator On/Off Control - Auto/Manual
- Illuminator Number - 6
Lens
- Focal Length - 4.8mm–120mm
- Max. Aperture - F1.6–F3.5
- Field of View
- H: 58.5°–2.8°;
- V: 33.2°–1.5°;
- D: 67.5°–3.2°
- Optical Zoom - 25x
- Focus Control - Auto/Semi-Auto/Manual
- Close Focus Distance - 0.1 m–1.5 m (0.33 ft–4.92 ft)
- Iris Control - Auto/Manual
PTZ
- Pan/Tilt Range - Pan: 0°–360°Tilt: -15°–+90°; auto flip 180°
- Manual Control Speed - Pan: 0.1°–200°/s; Tilt: 0.1°–120°/s
- Preset Speed - Pan: 240°/s; Tilt: 200°/s
- Presets 300
- Tour - 8 (up to 32 presets per tour)
- Pattern-5
- Scan - 5
- Speed Adjustment - Support
- Power off Memory - Support
- Idle Motion - Preset/Tour/Pattern/Scanning
- Protocol - DH-SD Pelco-P/D (auto recognition)
Video
- Resolution -
- 1080P (1920×1080); 720P (1280×720);
- D1 (704×576/704×480)
- Frame Rate - 1080P (25/30 fps), 720P (25/30/50/60 fps)
- Day/Night - Support
- BLC - Support
- WDR - 120 dB
- HLC - Support
- White Balance
- Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/
- Natural light/Street lamp
- Gain Control - Auto/Manual
- Noise Reduction - 2D/3D
- Defog - Electronic
- Digital Zoom - 16x
- Flip - 0°/180°
- Privacy Masking - Up to 24 areas
Audio
- Compression - G.711a; G.711Mu
Power
- Power Supply - DC 12V/3A ± 10%
- Power Consumption - 9.6 W 23.2 W (IR light on, PTZ)
Environment
- Operating Temperature - –40°C to +70°C (–40°F to +158°F)
- Operating Humidity - ≤ 95%RH
- Protection - IP66; TVS 6000V lightning protection; surge protection
