Description

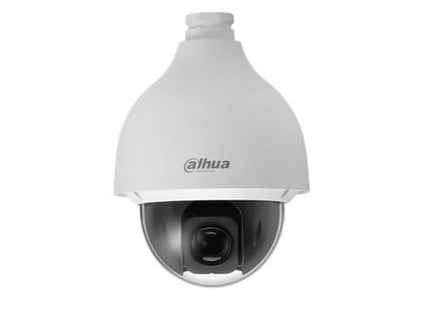

SD50432XA-HNR 4MP PTZ Wizsense without IR 32x optical zoom, incl. wall mounting and power supply
WizSense stands for the advanced AI algorithms that Dahua uses in this camera series. By applying these algorithms, this camera is able to distinguish between people and vehicles. All other objects that do not match the AI-based algorithm, for example animals, shadows or trees, are filtered out. Cameras from the WizSense series are equipped with Starlight technology for optimal performance in low-light situations. The PTZ camera has PFA with which the camera focuses while operating the camera so that it always provides a sharp image.
In addition, this PTZ uses the WizSense technology for Auto-tracking. Auto tracking is a technology where the PTZ camera automatically zooms in on a detected object and then follows it according to the set parameters. Thanks to the WizSense technology, this PTZ camera is better able to distinguish vehicles and people from other objects, making this generation of car tracking camera a lot more accurate.
Specifications:
| Camera |
Number of image sensors: |
1 |
| |
Optical/Thermal: |
Optical |
| |
Image sensor: |
1/2.8 |
| |
Resolution: |
2560x1440 |
| |
Number of pixels: |
4MP |
| |
Minimum lighting strength (in color): |
0.005 Lux |
| |
Minimum lighting strength (LED on (black/white)): |
0 Lux |
| |
Lighting: |
None |
| |
LED On/Off (Day/Night): |
Auto/Manual |
| |
Shutter speed: |
1/1s ~ 1/30000s |
| |
Noise reduction: |
2DNR, 3DNR |
| |
Video Output: |
No |
| Lens |
Lens type: |
Motor zoom lens |
| |
Iris: |
Car Iris |
| |
Focal Length: |
4.9mm~156mm |
| |
Maximum opening: |
F1.35~F4.4 |
| |
Horizontal opening angle: |
61.6° ~ 2.1° |
| |
Vertical opening angle: |
35.1° ~ 1.3° |
| |
Focus Control: |
Auto/Manual |
| Video |
Stream option: |
3 streams |
| |
Video compression: |
H.264, H.264+, H.264 B, H.264 H, H.264 M, H.265, H.265+, MJPEG |
| |
Images per second (Main stream): |
25fps @2560×1440 |
| |
2nd stream: |
25fps D1: 720x576 |
| |
3rd stream: |
25fps @1280×720 |
| |
Bit rate: |
H.264: 3 Kbps–20480 Kbps, H.265: 3 Kbps–20480 Kbps |
| |
Day/Night: |
Auto (filter), Color, Black/White |
| |
Light compensation: |
BLC, HLC, WDR(120dB) |
| |
Digital Zoom: |
16x |
| |
Optical Zoom: |
32x |
| |
|
| |
Smart Features: |
AI Perimeter Protection |
| |
|
AI Motion detection |
| |
|
Auto track 2.0 |
| |
|
Face Detection |
| |
|
Object Abbonded/Missing |
| |
Electronic Image Stabilization (EIS): |
Yes |
| |
Defog: |
Yes |
| |
Privacy masking: |
Yes |
| Audio |
Built-in microphone: |
No |
| |
Audio input: |
Yes |
| |
Audio Output: |
Yes |
| |
Audio Compression: |
AAC, G.711 A, G.711 MU, G.722.1, G.723, G.726, G.729, PCM |
| Network |
Ethernet: |
RJ-45 (10/100Base-T) |
| |
SD card storage option: |
Yes |
| |
Maximum Storage Capacity SD Card: |
256GB |
| Interface |
RS-485: |
No |
| |
Alarm: |
Yes |
| |
Number of channels in: |
2x |
| |
Number of channels out: |
1x |
| Electric |
including power supply: |
Yes |
| |
Power supply: |
24V DC, PoE +(Type IEEE 802.3at) |
| |
Max Consumption: |
Max: 16W |
| Environment |
Working temperature: |
-40°C ~ 70°C |
| |
Waterproofness: |
IP67 |
| |
Vandal resistant: |
IK10 |
| General |
Supplied accessories: |
1x PFB300S Wall Mount Bracket, 1x PFA110 Mount Adapter,1x DC24V/2.5A Power Adapter |
| Construction |
Material |
Metal |
| |
Diameter |
Ø253mm |
| |
Height |
186mm |
