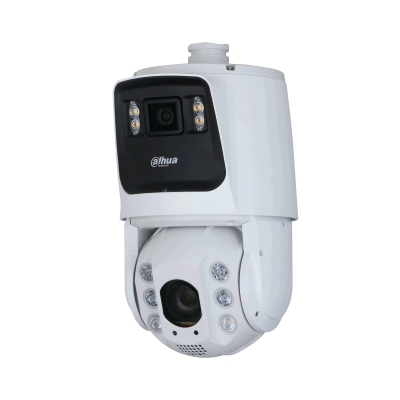

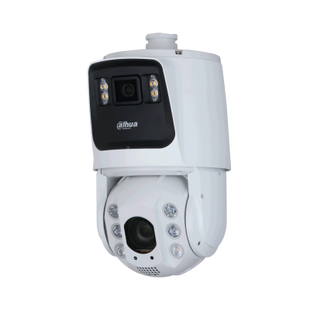

SDT7C424-4F-ZBZJ-APV-0400 4MP Dual-lens PTZ 24x optical zoom, incl. wall mounting and power supply

Description

SDT7C424-4F-ZBZJ-APV-0400 4MP Dual-lens PTZ 24x optical zoom, incl. wall mounting and power supply

The SDT7C424-4F-ZBZJ-APV-0400 has two 4MP cameras: a 4mm overview camera and a 4.8 to 115mm PTZ camera. The overview camera has a horizontal opening angle of 116 degrees, making it possible to see a large area at once. The PTZ camera offers flexibility by being able to focus on specific areas that need to be monitored. When movement, intrusion into an area or crossing a drawn line is detected by the overview camera, the PTZ camera can be automatically sent to that specific area. This combination of cameras makes it possible to both maintain a broad overview of a large area and zoom in on specific parts when necessary

Technical specifications:



Camera Number of image sensors: 2
  Optical/Thermal: Optical
  Image sensor: PTZ: 1/2.8" CMOS
  Resolution: 2560x1440
  Number of pixels: 4MP
  Minimum lighting strength (in color): 0.005 lux
  Minimum lighting strength (LED on (black/white)): 0 lux
  Lighting: IR, Strobe Lighting
  LED distance: 150m (IR), 30m LED light
  LED On/Off (Day/Night): Auto/Manual
  Shutter speed: 1/1s ~ 1/30,000s
  Noise reduction: 2DNR, 3DNR
  Image sensor2: Panorama: 1/1.8
  Optical/Thermal2: Optical
  Number of Pixels2: 2560x1440
Lens Lens type: Motor zoom lens
  Iris: Car Iris
  Focal Length: 4.8mm~115mm
  Maximum opening: F1.6~F3.6
  Horizontal opening angle: 53.1° ~ 3.4°
  Vertical opening angle: 30.4° ~ 1.95°
  Focus Control: Auto/Manual
  Focal length2: 4mm
  Maximum opening2: F1.0
  Horizontal opening angle2: 95°
  Vertical opening angle2: 52.5°
Video Stream option: 3 streams
  Video compression: H.264, H.264+, H.265, H.265+
  Images per second (Main stream): 25fps @2560×1440
  2nd stream: 25fps D1: 720x576
  3rd stream: 25fps @1920 x 1080
  Bit rate: H264: 2816 kbps–8192 kbps, H265: 1024 kbps–7936 kbps
  Day/Night: Auto (filter), Color, Black/White
  Light compensation: BLC, HLC, WDR(120dB)
  Digital Zoom: 16x
  Optical Zoom: 24×
  Motion detection: On/Off

  Smart Features: AI Face Capture/Attributes
    AI Perimeter Protection
    AI Motion detection
    Auto track 2.0
  Electronic Image Stabilization (EIS): Yes
  Defog: Yes
Audio Built-in microphone: No
  Audio input: Yes
  Audio Output: Yes
  Speaker: Yes for Audio alarm
Network Ethernet: RJ-45 (10/100 Base-T)
  SD card storage option: Yes
  Maximum Storage Capacity SD Card: 128GB
Interface Alarm: Yes
  Number of channels in: 2
  Number of channels out: 1
Electric including power supply: Yes
  Power supply: 36VDC
  Max Consumption: Basic: 20 W, Max.: 45 W (lighting + heating + PTZ working + sound and light alarm)
Environment Working temperature: –40°C ~ +65°C
  Waterproofness: IP66
General Supplied accessories: 1x PFB305W Wall Mount, 1x PFA114, 1x 36V DC/ 2.23A Adapter
Construction Material Aluminum
  Diameter Ø202mm
  Height 358mm
  Weight: 5.6kg
DORI The DORI makes it easy to see whether this camera is suitable for the application that will be used. The DORI is based on lab tests and approved with EN 62676-4, this inspection applies to: Detecting, Observing, Recognizing and Identifying.

  Detect Observe (R) Recognize Identify
Depth Panorama: 102m. PTZ: 1925mm Panorama: 40.8m. PTZ: 771.2mm Panorama: 20.4m. PTZ: 325.6mm Panorama: 10.2m. PTZ: 192.8mm



PTZ   Pan/Tilt Range  Pan: 0° ~ 360° (endless)
Tilt:  -20° ~ 90° (auto flip 180°)
  Manual control speed Pan: 0.1° ~ 160° /s; Tilt: 0.1° ~ 120° /s
  Preset Speed Pan:240° /s; Tilt: 200° /s
  Presets  300
  PTZ Fashion 8 Tours (up to 32 presets per tour)
  Pattern 5
  scan 5
  Idle motion Preset/Tour/Pattern/Scanning
  Protocol DH-SD Pelco-P/D (auto recognition)
  Car Tracking yes
