Description

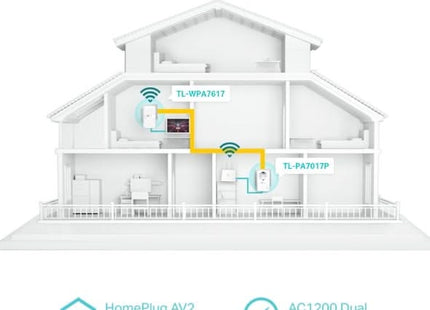

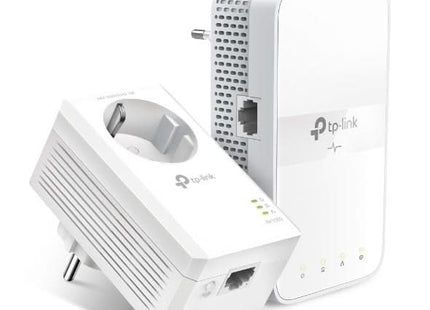

With the TL-WPA7617 KIT you can turn the existing power grid into a gigabit ultra-fast network and expand wired and wireless networks in places with a socket.
Using advanced HomePlug AV2 technology, the TL-WPA7617 KIT provides stable and super-fast WiFi with transfer speeds of up to 1000 Mbps* up to 300 meters over the existing power grid. Stream in HD, game online and download large files without interruption thanks to reliable Powerline connections.
One Gigabit Ethernet port provides blazing-fast wired connections for streaming 4K HD footage, lag-free gaming and more. Two Ethernet cables are included.

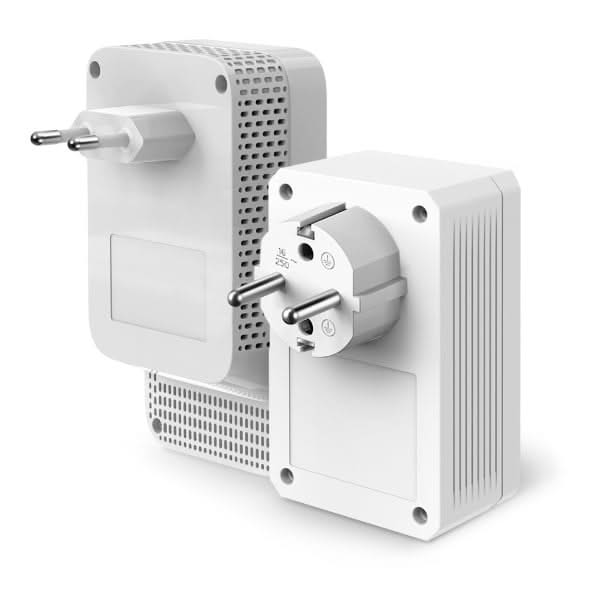

You can use the TL-PA7017P as a regular socket. Connect PCs, smart TVs or other wired devices, the performance remains the same.
Note: In addition, the built-in noise filter helps to remove electrical signals that can interfere with the performance of the Powerline devices.
Specifications:
| Transmission Speeds |
Powerline: up to 1000 Mbps
Ethernet: 10/100/1000 Mbps |
| Transmission range |
Up to 300 meters/1000 feet over existing electrical wiring |
| Standards and protocols |
HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u,
IEEE 802.3ab, IEEE 802.11b/g/n (2.4 GHz), IEEE 802.11a/n/ac (5 GHz) |
| Compatibility |
Compatible with all Powerline adapters with the HomePlug AV and AV2 standard |
| Plug type |
EU |
| Interface |
TL-WPA7617: 1 Ethernet port;
TL-PA7017P: 1 Ethernet port |
| Button |

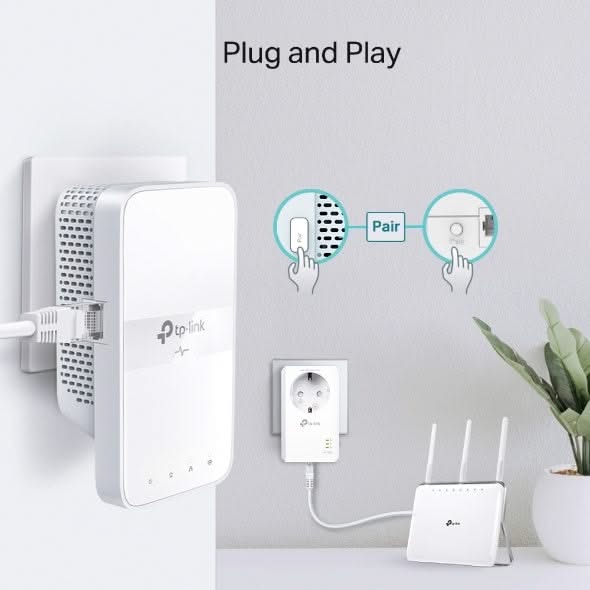

Pairing, reset, Wi-Fi Clone, LED on/off |
| Energy consumption |
TL-WPA7617: maximum: 11 W, typical: 6.5 W
TL-PA7017P: maximum: 2.9 W, typical: 2.6 W |
| LED Indicator |
Power supply, Powerline, Ethernet, WiFi |
| Dimensions (W x D x H) |
TL-WPA7617: 69.5 × 35 × 124.1mm
TL-PA7017P: 58×42×95mm |
| RANGE |
Up to 300 meters via the existing electricity grid |
| Wireless Features |
| Standards for Wireless Networks |
• TL-WPA7617: IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n/ax 2.4 GHz
• TL-PA7017P: N/A |
| Wireless Speeds |
Up to 1200 Mbps |
| Frequency |
• TL-WPA7617: 2.4 GHz and 5 GHz
• TL-PA7017P: N/A |
| Transfer speed |
• TL-WPA7617: 300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz
• TL-PA7017P: N/A |
| Wireless Security |
Wireless: WPA-PSK / WPA2-PSK, WEP encryptions |
