Description

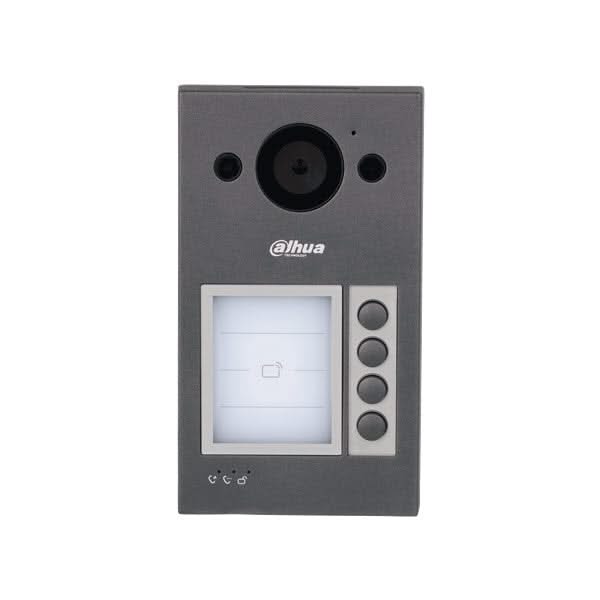

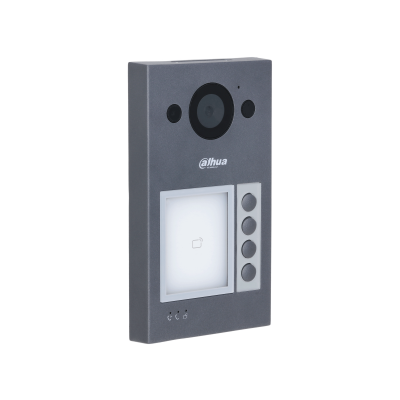

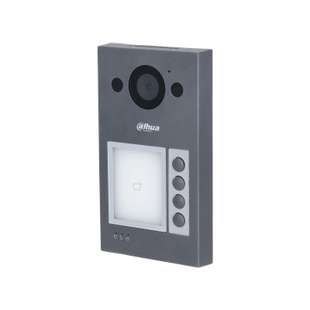

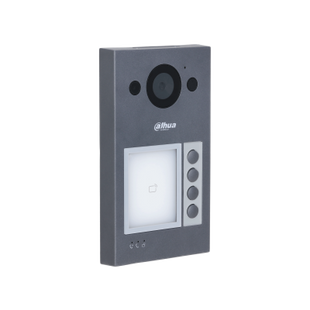

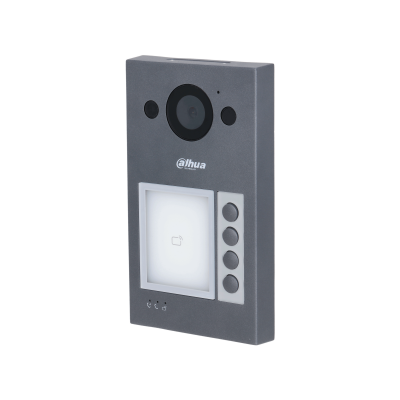

The VTO3311Q-WP is an intercom outpost with a maximum of 4 bell pushes. The outpost can easily be configured into a 1, 2 or 4 button variant using the supplied button plates. The outdoor station has an excellent day/night camera with a horizontal opening angle of 125°. The surface-mounted housing is made of vandal-resistant aluminum IP65 /IK08, also comes standard with one rain cover delivered to the outpost. It is possible to create up to 3000 users to control the door using the card reader module.
The outdoor station has a card reader suitable for Mifare. It is possible to add up to 3000 users.
This outdoor station/indoor unit has an SD card slot. The SD card can be used to record conversations. This model outdoor station can be connected via PoE or via WiFi. If connected via WiFi, a 12-volt adapter must be ordered, see related products for a suitable adapter.
Specifications:
-
System
-
Main processor: Embedded processor
-
Type button: Mechanical
-
Interoperability: ONVIF; C.G.I
-
Network protocol: RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF
-
Basic
-
Camera: 1/2.8" CMOS 2-MP HD camera
-
Field of view: H: 125°; V: 65°; D: 139°
-
WDR (Wide Dynamic Range): 120 dB
-
Noise reduction: 3D NR; 2D NO
-
Video compression: H.264; H.265
-
Video resolution:
- Main stream: 720p, WVGA, D1, and CIF
- Substream: 1080p, WVGA, D1, QVGA, and CIF
-
Video frame rate:
-
Video bitrate: 768 kbps–8 Mbps
-
Light compensation: Auto IR
-
Day/Night: Auto (ICR)/Color/Black and White; Color/Black and white
-
Audio
-
Audio compression: G.711a; G.711u; PCM
-
Audio input: 1
-
Audio output: Built-in speaker
-
Audio mode: Two-way audio
-
Audio enhancement: Echo cancellation/digital noise cancellation; Echo cancellation; Digital noise reduction
-
Audio bitrate: 16 kHz, 16 bit
-
Features
-
Communication mode: Completely digital
-
Unlock mode: Map; app; indoor monitor
-
Card type: IC card
-
Automatic snapshot: Yes (microSD card inserted into the indoor monitor or door station)
-
Leave videos: Yes (microSD card inserted in VTH/VTO is needed)
-
Web configuration: Yes
-
Storage: Micro SD card (max. 256 GB)
-
Performance
-
Reading distance of map: 0cm–3.5cm (0"–1.38")
-
Issue card locally: Yes
-
Housing
-
Capacity
-
Gates
-
RS-485 port: 1
-
Alarm input: 1
-
Alarm output: 1
-
Power output: 1
-
Exit push button: 1
-
Door status detection: 1
-
Door lock control: 1
-
Network port: 1 × RJ-45/two-wire sport, 10/100 Mbps self-adaptive
-
Alarm
-
General
-
Color appearance: Gray
-
Power supply: 48 VDC, 1 A; Standard PoE; or 12 volt DC with WiFi
-
Power adapter: Optional
-
Installation: Surface mounting
-
Certifications: CE; FCC
-
Accessories: Includes alarm power cable, rain cover
-
Product dimensions
- 188.1 mm × 107.2 mm × 30 mm (7.41" × 4.22" × 1.18")
-
Protection
-
IP protection: IP65
-
IK protection: IK08
-
Working temperature
- –40 °C to +60 °C (–40 °F to +140 °F)
-
Working humidity
- 10%–90% (RH), non-condensing
-
Working height
- 0 m–3,000 m (0 ft–9,842.51 ft)
-
Energy consumption
- ≤ 4 W (standby), ≤ 8 W (working)
-
Gross weight
-
Net weight
