Description

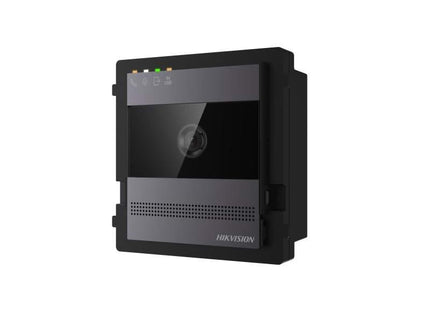

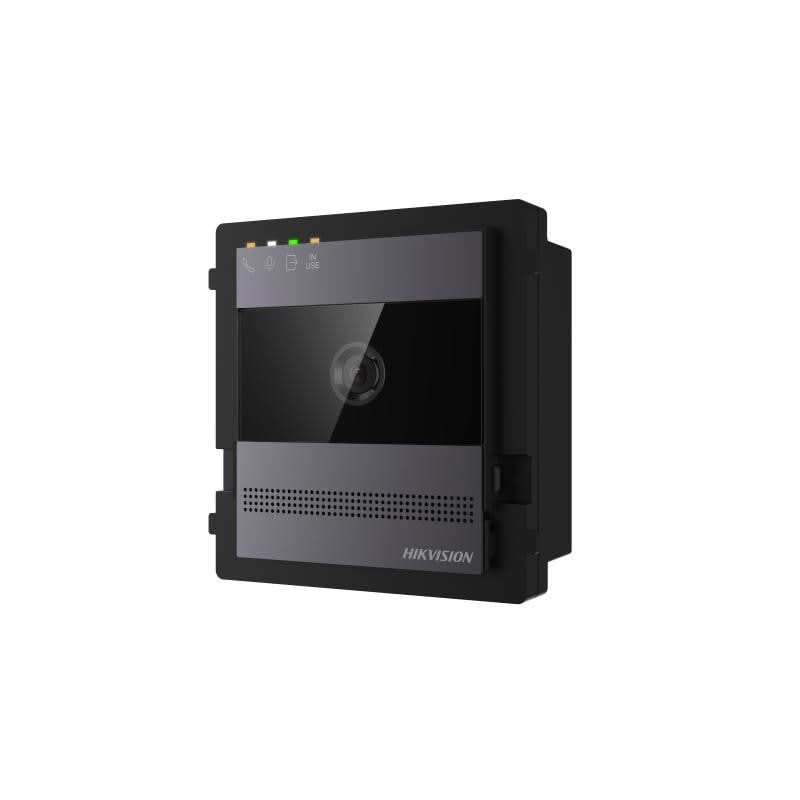

DS-KD7003EY-IME2 2-Wire HD outdoor station Aluminum
This is a modular intercom unit for two-wire systems. The camera has a 2MP lens (1920x1080 Full HD). The system is easy to scale up by adding a module from the series (bell pushes/buttons or other modules, Mi-Fare EM Readers, etc. These are easy to connect to the basic unit. The Module is equipped with a Mic and Speaker.
This module contains 1 doorbell button and an HD camera with a resolution of 1920 x 1080 px and a viewing angle of 133° horizontally and 82° vertically. The video is compressed with H.264 codec. Sound transmission is provided by a built-in microphone and speaker. The videophone can be connected to the network via Ethernet (1x 10/100Mbps). The videophone can be powered via a 12V DC connection on the terminal block or via a 2-wire power supply, which also serves to supply data to the distribution unit (DS-KAD7060EY). The power consumption is less than 6W. The module is IP65 certified for outdoor use.
The modular solution is a novelty in the intercom range, allowing you to assemble the entire system exactly according to the customer's wishes. Surface-mounted and flush-mounted boxes are available.
Specifications:
System Parameters
-
Operating SystemEmbedded Linux operating system
-
ROM4GB
-
RAM256MB
-
CPUEmbedded Processor
Display Parameters
-
ScreenSizeAFTER
-
Operation MethodAFTER
-
TypeAFTER
-
ResolutionAFTER
Video Parameters
-
Supplement LightLow illumination, IR supplement lights
-
Video StandardH.264
-
Lens1
-
FOVHorizontal: 133°, Vertical: 82°
- WDR
- Support Resolution2 MP
Audio Parameters
-
Audio Compression StandardG.711 U, G.711 A
Audio Input
- Built-in omnidirectional microphone
-
Audio OutputBuilt-in loudspeaker
-
Audio Compression Bitrate64Kbps
-
Audio QualityNoise suppression and echo cancellation
-
Volume AdjustmentAdjustable
Capacity
-
UserCapacity 2000
-
Linked Indoor Station Capacity Max.99
-
Sub Door Station Capacity 16
Network Parameters
-
Wired Network10/100 Mbps self-adaptive through 2-wire interface
-
WiFiOnly AP mode for configuration
-
BluetoothAFTER
-
3G/4GAFTER
Device Interfaces
-
Alarm Input2(supports Exit button or Door contact input)
-
Network InterfaceAFTER
-
TAMPER1
-
Exit Button1
-
By Contact Input1
-
RS-4852 (RS485 out for Hikvision's sub module communication, RS485 for reservation)
-
WiegandAFTER
-
TF CardAFTER
-
Alarm OutputAFTER
-
DIP Switch6 decimal DIP switch
-
Lock Control2 (1 relay, max to 30 VDC, 2 A;1 DC pulse,20V 4A impulsive,300 mA holding current,30 ohm max )
-
Power Interface48V,Powered by distributor DS-KAD7060EY or 12VDC
-
Two-Wire IP Interface1
General
-
Button0-2(Flexible adjustment)
-
InstallationSurface mounting & flush mounting
-
Indicator4 LED lights(Opening by? Calling? Intercom? In use)
-
WeightWith package: 426g ( 0.94lb),Without package: 290g ( 0.64lb)
-
Protective LevelIP65 IK08
Working Temperature
- -40° C to 60° C (-22° F to 140° F)
Working Humidity
Dimensions
- 99.5mm × 98.5mm × 35mm (3.92" × 3.88\" × 1.37\")
Battery
-
Power Supply48V,Powered by distributor DS-KAD7060EY or 12VDC
-
Application EnvironmentOutdoor
-
Power Consumption≤ 6W
-
LanguageEnglish, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
