Description
Attention! Hard disk is not included. You can order this at the bottom right.

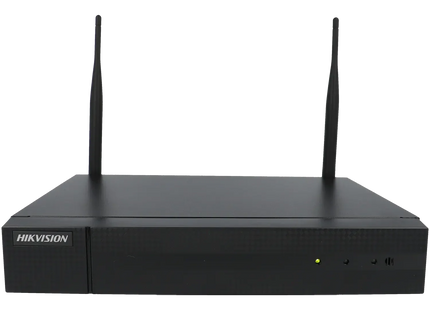

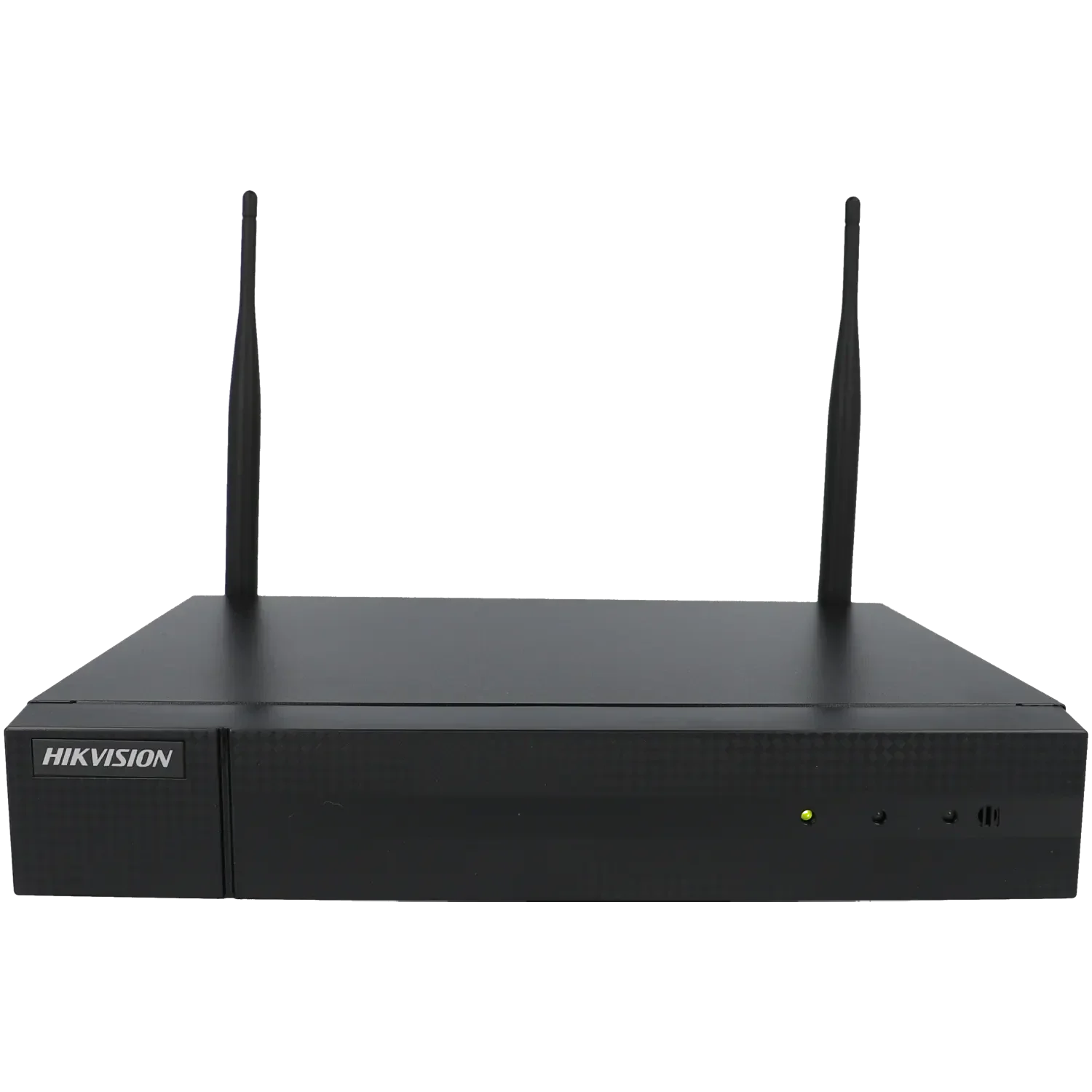

Hikvision network recorder (NVR) that has 8 channels to connect IP cameras with an image quality of up to 4MP. The NVR recorder has WiFi, making it easy to connect cameras wirelessly to your own wireless network from this WiFi NVR. The recorder has 1 HDMI input with which images up to 4MP can be displayed on a monitor and 1 VGA input with which you can stream images up to Full HD.
The NVR has 2 USB ports to which you can connect a USB mouse or a USB stick to make a backup of important recordings.
In addition to WiFi cameras, wired cameras can also be added to the recorder via the IP address. With this model up to a maximum of 8 cameras in total.
Specifications:
General
-
Type: 8 Channel Mini 1U WiFi NVR
-
Number of IP camera inputs: 8 channels via network cable and/or WiFi module
-
Housing / dimensions: Mini 1U, metal housing, approx. 265 × 225 × 48 mm
-
Weight (without HDD): ≤ 1.6kg
Video & Audio
-
Resolution IP video input: Up to 6 MP
-
Compression formats: H.265+, H.265, H.264+, H.264
-
Bandwidth: Incoming 50 Mbps, Outgoing 40 Mbps
-

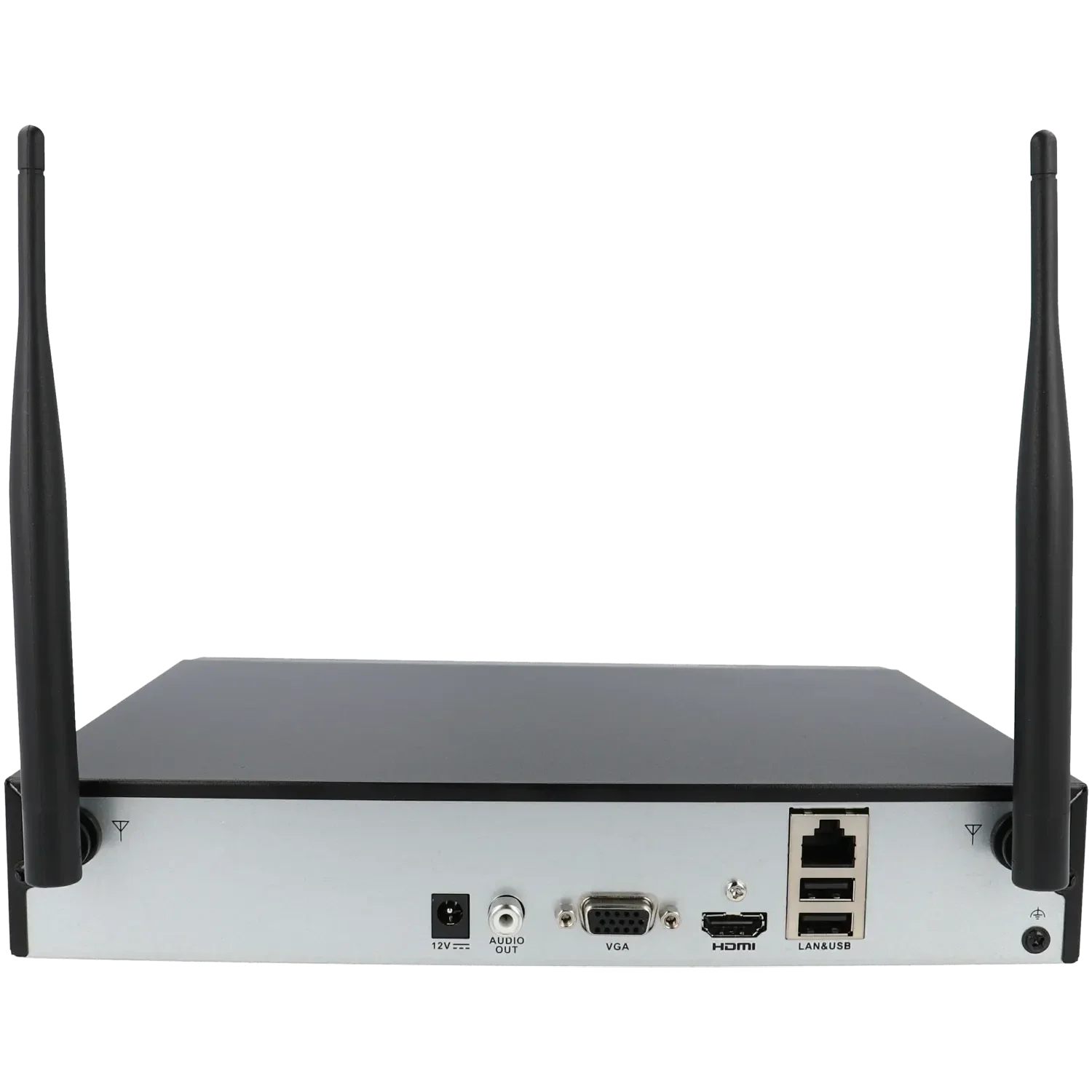

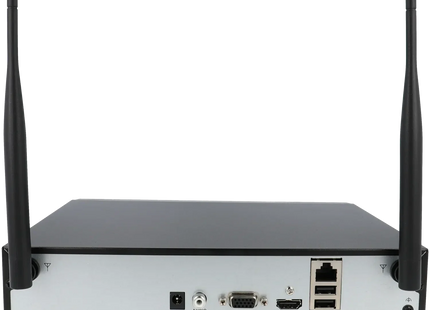

Video output: 1× HDMI and 1× VGA, simultaneous output possible
-
Output resolutions: 1920×1080, 1280×1024, 1280×720, 1024×768 at 60Hz
-
Audio output: 1 channel RCA (linear, approx. 1 KΩ)
Decoding / Storage / Playback
-
Decoding capacity: 1 channel @ 6 MP (25 fps) or 1 channel @ 5 MP (25 fps) or 4 channels @ 4 MP (12 fps) or 4 channels @ 1080p (25 fps)
-
Recording resolutions supported: 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
-
Number of simultaneous playbacks: 8 channels, synchronous playback
-
Live view window layouts: 1/4/6/8/9 windows
Network & Wireless
-
Network interface: 1× RJ‑45 10/100 Mbps Ethernet
-
Wireless: WiFi module integrated, frequency band 2.4 GHz, antenna structure 2x2 MIMO, transfer speed approx. 300 Mbps, standard IEEE 802.11b/g/n
Storage & Interfaces
Food & Environment
-
Supply voltage: 12V DC, 1.6A
-
Power: ≤ 10 W (without hard drive)
-
Temperature range: -10 °C to +55 °C
-
Relative humidity: 10% – 90%
