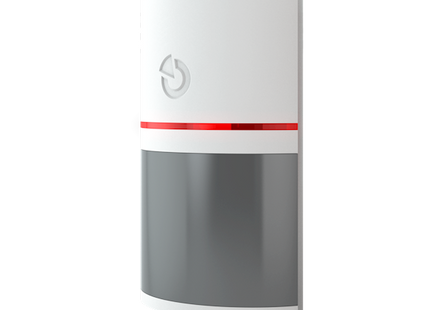

JA-152PG, Pro DesignLine Wireless PIR with white-light protection

Description

Jablotron JA-152PG, Pro DesignLine Wireless PIR with white-light protection

The product is a wireless system device for the Midway Pro and Essex Pro. This detector is designed to detect human body movements in buildings. The guaranteed detection coverage is 90° / 12 m. The gray lens option has a resistance to white light that is significantly higher than the values ​​prescribed in the standard. The detector meets the highest quality and design requirements, making it suitable even for luxurious interiors.

White light resistance helps reduce false alarms caused by window illumination, lightning or reflective objects.

The detector offers standard resistance to white light, which significantly exceeds the values ​​prescribed by the standard (up to 10,000 lux).

The detector meets the highest quality and design requirements, making it suitable even for luxurious interiors in all installation versions. In addition to standard positioning in a corner of a room, it can be installed on a wall surface using an aesthetic mounting box JA-196PL-S, where the detector is partially recessed and forms an elegant whole with the wall. The hinge holder JA-191PL can be used for special applications such as ceiling mounting or oblique detection angle.

The detector is equipped with impulse activation.

The detector can be used to control programmable PG outputs.

Compatible with F-Link 2.0.0 and higher
Power source 1x lithium battery, CR123A (3 V / 1500 mAh)
Typical lifespan 4 years (in Smartwatch mode)
Communication frequency 868.1MHz
Communication range approx. 300 m (free terrain)
Recommended installation height 2.2 – 2.5 m above floor level
Detection angle / detection range 90° / 12 m
Sizes: 62 x 110 x 40mm
Classification safety level 2/environmental class II, in accordance with EN 50131-1 ed. 2+A1+A2, EN 50131-2-2
Environment according to EN 50131-1 II. indoor, general
Operational temperature range -10 °C to +40 °C
This also meets the requirements of EN 50131-5-3+A1, EN 50131-6 ed. 2+A1, ETSI EN 300 220-1,-2, EN 50130-4 ed. 2+A1, EN 55032, EN 62368-1, EN 50581

JA-152PG, Pro DesignLine Wireless PIR with white-light protection

Product form

In stock, delivery time 1 to 3 working days

€152,90 Incl. VAT

      • Free shipping from €99
      • Free returns within 30 days

      Associated products

      Description

      Jablotron JA-152PG, Pro DesignLine Wireless PIR with white-light protection

      The product is a wireless system device for the Midway Pro and Essex Pro. This detector is designed to detect human body movements in buildings. The guaranteed detection coverage is 90° / 12 m. The gray lens option has a resistance to white light that is significantly higher than the values ​​prescribed in the standard. The detector meets the highest quality and design requirements, making it suitable even for luxurious interiors.

      White light resistance helps reduce false alarms caused by window illumination, lightning or reflective objects.

      The detector offers standard resistance to white light, which significantly exceeds the values ​​prescribed by the standard (up to 10,000 lux).

      The detector meets the highest quality and design requirements, making it suitable even for luxurious interiors in all installation versions. In addition to standard positioning in a corner of a room, it can be installed on a wall surface using an aesthetic mounting box JA-196PL-S, where the detector is partially recessed and forms an elegant whole with the wall. The hinge holder JA-191PL can be used for special applications such as ceiling mounting or oblique detection angle.

      The detector is equipped with impulse activation.

      The detector can be used to control programmable PG outputs.

      Compatible with F-Link 2.0.0 and higher
      Power source 1x lithium battery, CR123A (3 V / 1500 mAh)
      Typical lifespan 4 years (in Smartwatch mode)
      Communication frequency 868.1MHz
      Communication range approx. 300 m (free terrain)
      Recommended installation height 2.2 – 2.5 m above floor level
      Detection angle / detection range 90° / 12 m
      Sizes: 62 x 110 x 40mm
      Classification safety level 2/environmental class II, in accordance with EN 50131-1 ed. 2+A1+A2, EN 50131-2-2
      Environment according to EN 50131-1 II. indoor, general
      Operational temperature range -10 °C to +40 °C
      This also meets the requirements of EN 50131-5-3+A1, EN 50131-6 ed. 2+A1, ETSI EN 300 220-1,-2, EN 50130-4 ed. 2+A1, EN 55032, EN 62368-1, EN 50581
