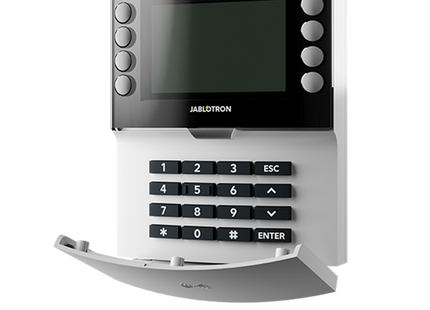

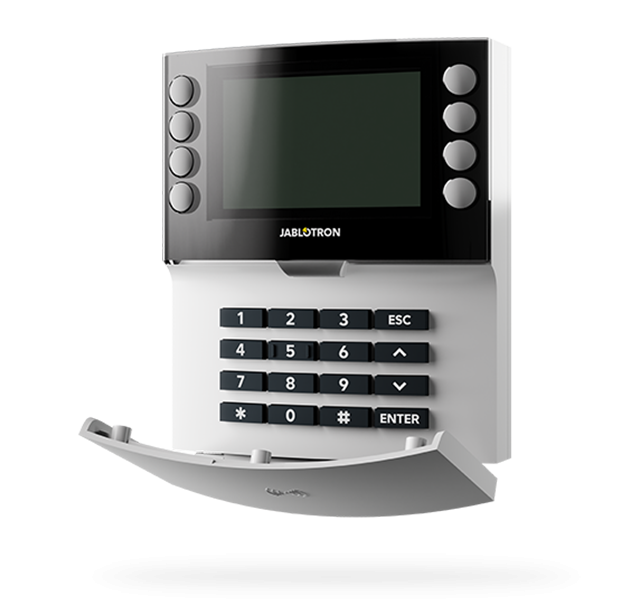

JA-155E Wireless keyboard with display and RFID reader WHITE

Description

JA-155E Wireless keyboard with display and RFID reader WHITE

The keypad is a wireless part of the JABLOTRON system. It serves to control and display the system status Indication. It is equipped with four segments whose description is displayed on the LCD screen. The device must be installed by a trained technician with a valid certificate issued by an authorized distributor. The keypad is compatible with the following control panels JA-103K and JA-107K.

Specifications:

Power supply 4 x alkaline batteries, type: AA (LR6) 1.5 V
Please note: Batteries are not included.
Typical lifetime of batteries 1–2 Years
LowBatt state <4.5V
Quiescent current consumption (6 V) 245 μA
Maximum current consumption (6 V) 115mA
External power supply 12 V +/-1 V type. 45 mA, max. 100 mA
Communication band 868.1 MHz, JABLOTRON protocol
Maximum radio frequency power (ERP) <25mW
Communication range approx 200 m (open area)
RFID frequency 125kHz
Dimensions 110 x 136 x 33mm
Weight (w/o batteries) 285g
Classification Security grade 2/Environmental class II (according to EN 50131-1)
Environment indoor general
Operating temperature range -10 °C to +40 °C
Average operating humidity 75% RH, w/o condensation
Certification body Trezor Test s.r.o. (no. 3025)
In compliance with ETSI EN 300 220-1,-2, ETSI EN 300 3300, EN 50130-4, EN 55032, EN 62368-1, EN 50581, EN 50131-1, EN 50131-3, EN 50131-5-3, EN 50131-6,
Operating conditions according to general authorization ERC REC 70-03
Recommended screw 4 x ø 3.5 x 40 mm (countersunk head)

JA-155E Wireless keyboard with display and RFID reader WHITE

Product form

In stock, delivery time 1 to 3 working days

€295,00 Incl. VAT

      • Free shipping from €99
      • Free returns within 30 days

      Associated products

      Description

      JA-155E Wireless keyboard with display and RFID reader WHITE

      The keypad is a wireless part of the JABLOTRON system. It serves to control and display the system status Indication. It is equipped with four segments whose description is displayed on the LCD screen. The device must be installed by a trained technician with a valid certificate issued by an authorized distributor. The keypad is compatible with the following control panels JA-103K and JA-107K.

      Specifications:

      Power supply 4 x alkaline batteries, type: AA (LR6) 1.5 V
      Please note: Batteries are not included.
      Typical lifetime of batteries 1–2 Years
      LowBatt state <4.5V
      Quiescent current consumption (6 V) 245 μA
      Maximum current consumption (6 V) 115mA
      External power supply 12 V +/-1 V type. 45 mA, max. 100 mA
      Communication band 868.1 MHz, JABLOTRON protocol
      Maximum radio frequency power (ERP) <25mW
      Communication range approx 200 m (open area)
      RFID frequency 125kHz
      Dimensions 110 x 136 x 33mm
      Weight (w/o batteries) 285g
      Classification Security grade 2/Environmental class II (according to EN 50131-1)
      Environment indoor general
      Operating temperature range -10 °C to +40 °C
      Average operating humidity 75% RH, w/o condensation
      Certification body Trezor Test s.r.o. (no. 3025)
      In compliance with ETSI EN 300 220-1,-2, ETSI EN 300 3300, EN 50130-4, EN 55032, EN 62368-1, EN 50581, EN 50131-1, EN 50131-3, EN 50131-5-3, EN 50131-6,
      Operating conditions according to general authorization ERC REC 70-03
      Recommended screw 4 x ø 3.5 x 40 mm (countersunk head)
