Hikvision outpost and modules

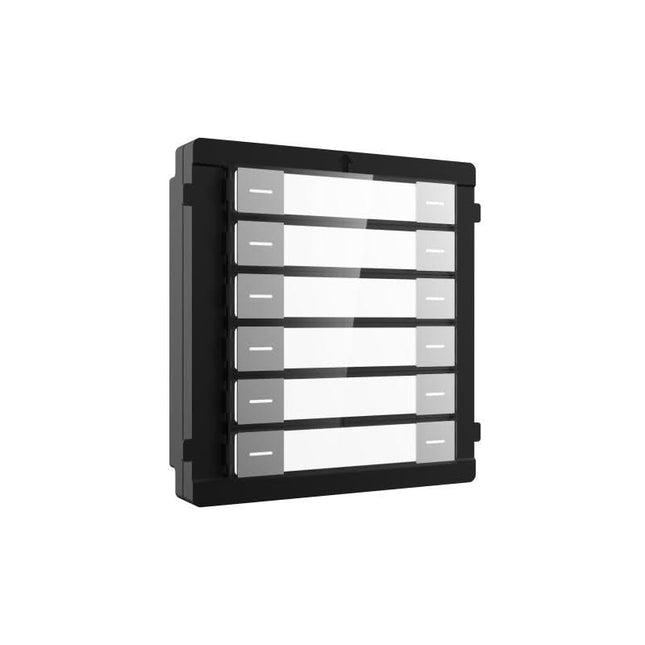

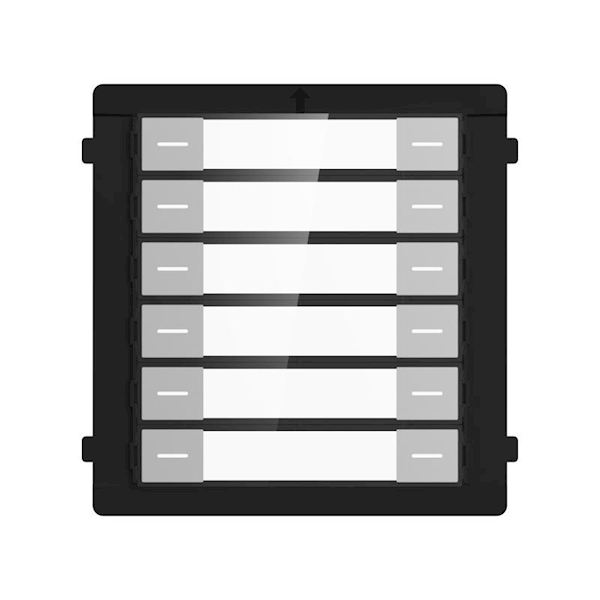

The DS-KD-K12 with 12 buttons module is intended for cooperation with the DS-KD8003-IME1 video intercom module. The modules of the DS-KD-xx series are mounted in special housings of the DS-KD-ACF (recessed housings) and DS-KD-ACW (surface-mounting housings) series. Aluminum masking frames are supplied with the housings from both series.Product info

Read more less

HikVision Blank module for video intercom Blank module, 98.21mmx100.21mm x33.7mm Product info

Read more less

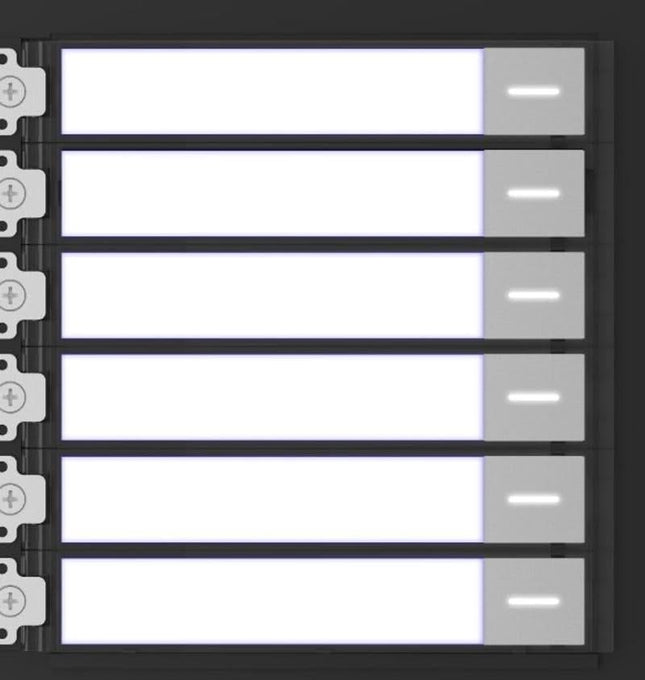

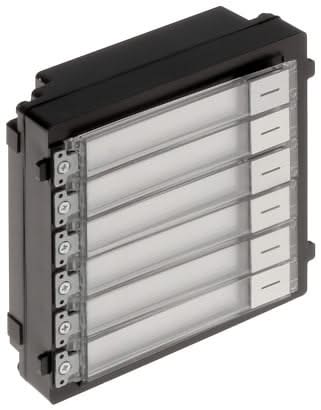

The DS-KD-KK module is intended for cooperation with the DS-KD8003-IME1 video intercom module. The modules of the DS-KD-xx series are mounted in special housings of the DS-KD-ACF (recessed housings) and DS-KD-ACW (surface-mounting housings) series. Aluminum masking frames are supplied with the housings from both series.Product info

Read more less

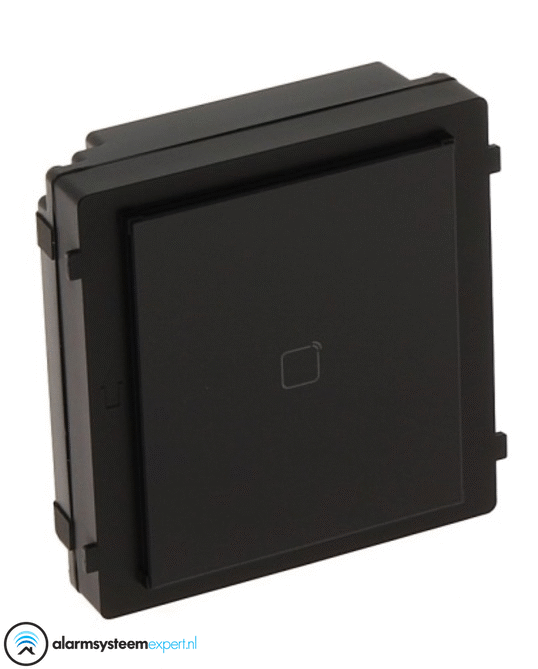

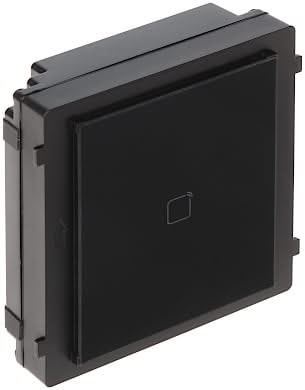

The DS-KD-M module is designed to work with the DS-KD8003-IME1 video intercom module.The modules of the DS-KD-xx series are mounted in special boxes of the DS-KD-ACF (integrated boxes) and DS-KD-ACW (surface-mounted boxes) series. The aluminum masking frames are supplied with the boxes of the two series.Product info

Read more less

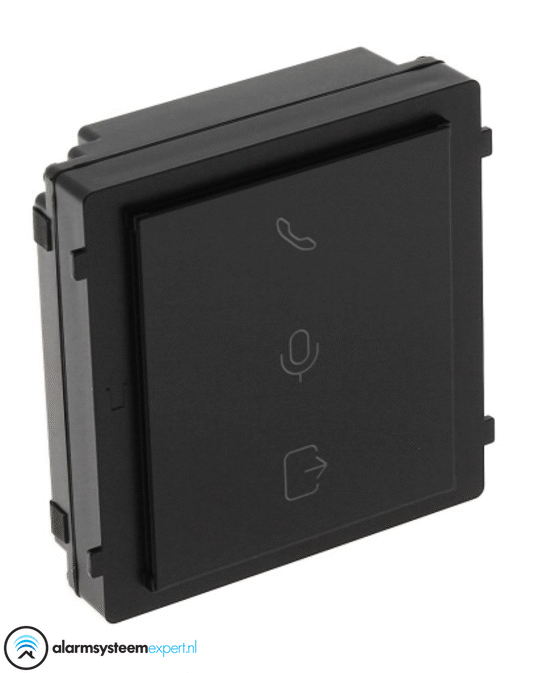

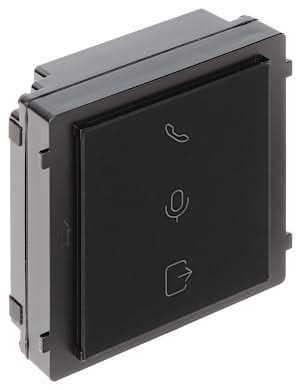

The DS-KD-IN module is intended for cooperation with the DS-KD8003-IME1 video intercom module. The device is used for visual signaling of the status of the voice connection of the video intercom to the indoor panel and the opening status of the gate.The modules of the DS-KD-xx series are mounted in special housings of the DS-KD-ACF (recessed housings) and DS-KD-ACW (surface-mounting housings) series. Aluminum masking frames are supplied with the housings from both series.Product info

Read more less

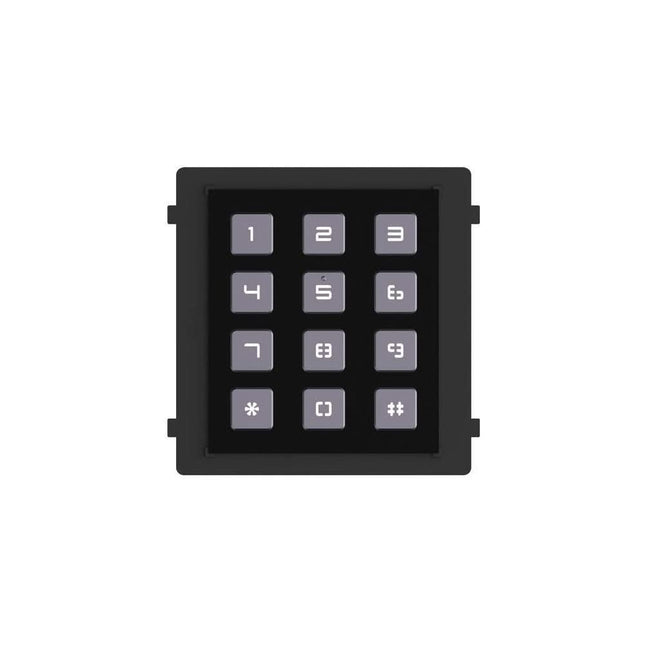

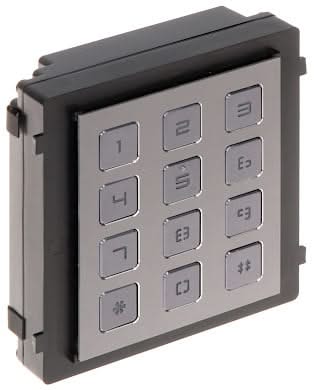

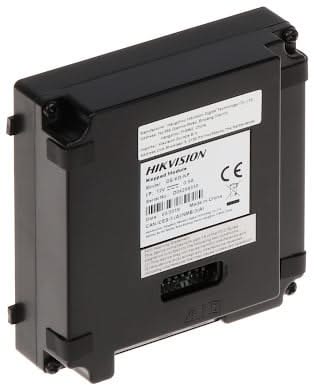

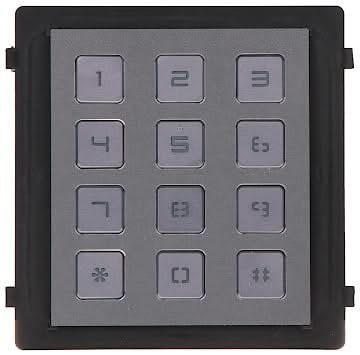

The DS-KD-KP module is intended for cooperation with the DS-KD8003-IME1 video intercom module.The modules of the DS-KD-xx series are mounted in special housings of the DS-KD-ACF (recessed housings) and DS-KD-ACW (surface-mounting housings) series. Aluminum masking frames are supplied with the housings from both series.Product info

Read more less

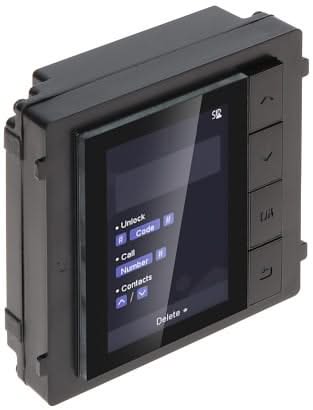

The Hikvision DS-KD-DIS module is designed to work with the DS-KD8003-IME1 or DS-KD8003-IME2 video intercom outpost. With this handy and professional display module, which contains a 3.5-inch LCD screen, an indoor station can be called from the contact list shown on the display.Product info

Read more less

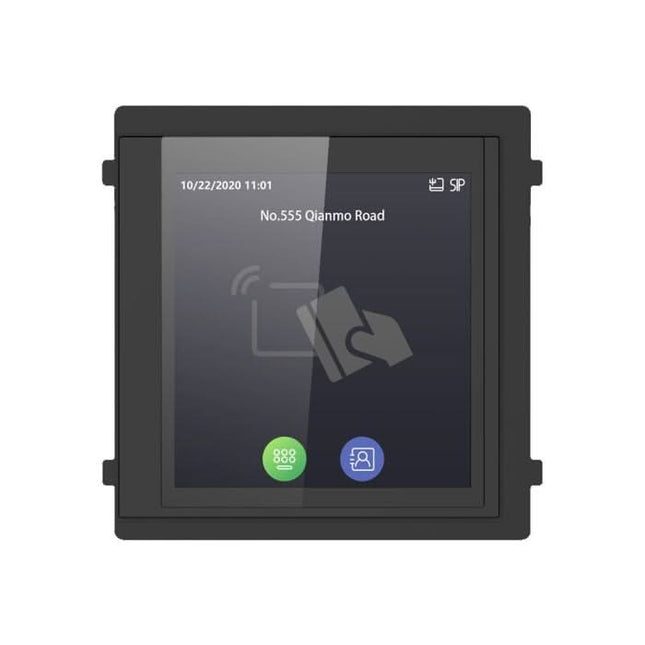

DS-KD-TDM multifunctional display/control module, suitable for multiple apartments or companies. Important features Modular door station Touch & Display module, mounting bracket required 4 inch touchscreen, IP65 (IK8) Choose caller ID, PIN and card unlock, contact list and ad display Stores and searches contact list Multiple languages Mifare card reader on board Adjustable with bell buttons or

Read more less

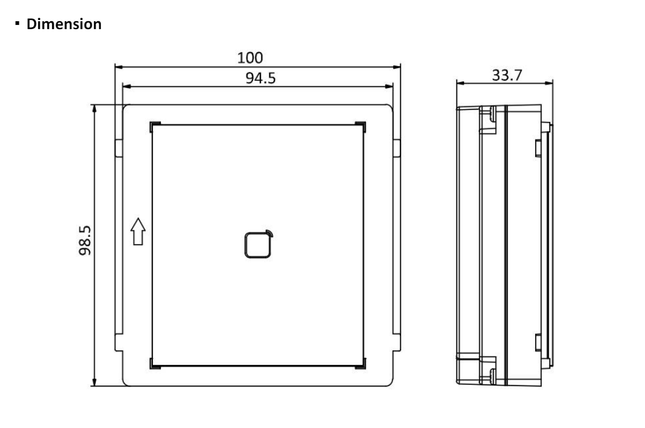

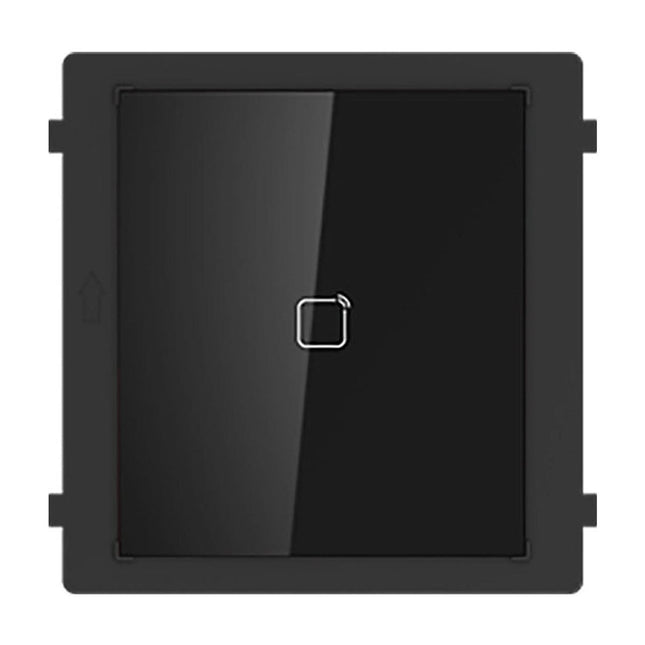

The Hikvision DS-KD-E is an IP video intercom outdoor station RFID EM card reading module for use in the Hikvision second generation IP intercom system. The module must be used together with the DS-KD8003-IME1 or DS-KD8003-IME2 camera main module. The modules must be built-in or assembled with the separately available housings. The module can be used to open a door or gate with an RFID proximity card or tag code. The module is connected and powered by the camera module. EM card reader module of modular door station Support door unlocking via card swipe, card issuing IP65 protection level Backlight compensation behind the module Easy to use and expandable Specifications: Installation: flush mounting, surface mounting Indicator: With packaging: 421 g, Without packaging: 160 g Protection level: IP65 Power supply method: 12 VDC (powered by the other module) Operating temperature: -40° C to +55° C (-40° F to 131° F) Operating humidity: 10% to 95% Dimensions: 98.5 mm × 100 mm × 33.7 mm (3.87" × 3.95" × 1.33") Battery: / Application environment: Outdoor Power consumption: ≤ 2 W

Read more less

The DS-KD-KP module is intended for cooperation with the DS-KD8003-IME1 video intercom module. The modules of the DS-KD-xx series are mounted in special housings of the DS-KD-ACF (recessed housings) and DS-KD-ACW (surface-mounting housings) series. Aluminum masking frames are supplied with the housings from both series.

Read more less

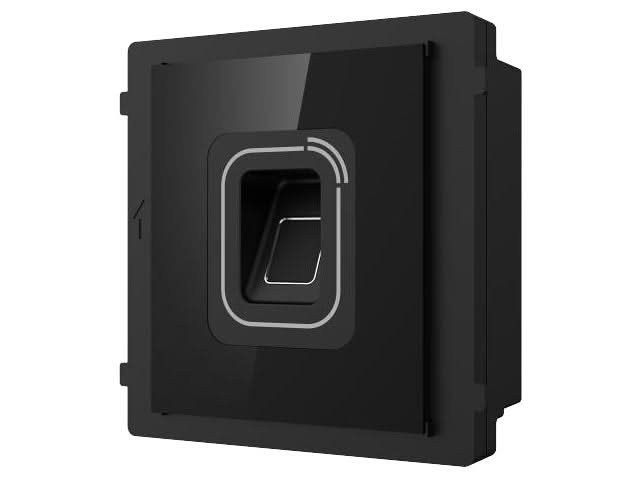

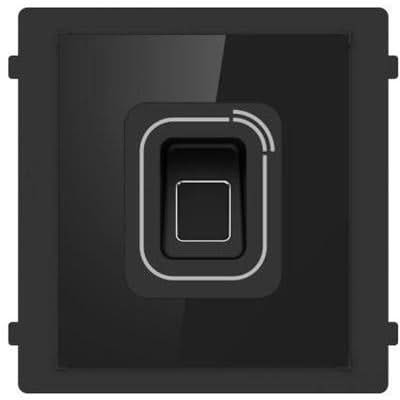

HikVision Video Intercom module, Sub-module fingerprint and card reader M1, Desfire card, powered via the main module, mounting accessories not included. Can be installed with accessories (not included) in or surface-mounted, power supply via main module, RS485 communication, IP65Specifications: Capacity Fingerprint capacity - 1000 Card capacity - 6000Authentication Card reading frequency - 13.56 MHz Card reading distance - 2 cm Card type M1, Desfire cardDevice interfaces DIP switch - 8 bits RS-485 - 1General Installation - Flush mounting, surface mounting Protective level - IP65 Working temperature - -30 °C to 60 °C Working humidity - 10% to 90% (no-condensing) Dimension  - (W × H × D) 100 mm × 100 mm × 35 mm (3.94" × 3.94" × 1.38") Power supply - 12 VDC, supplied by the main module Power consumption - ≤ 4 W

Read more less

The Hikvision DS-KD8003-IME1(B) is a modular door station from the KD8 Series, designed to combine video intercom functionality with access control. This model is equipped with a 2 MP fisheye camera with additional infrared illumination (IR), improving visibility in low light. The wide field of view, with a horizontal angle of 146° and a vertical angle of 82°, ensures wide coverage of the area in front of the door. The door station runs on an embedded Linux operating system and has 32 MB ROM and 256 MB RAM, powered by an embedded processor. This configuration underlines its ability to meet the demands of modern security and communications systems. The video compression standard used is H.264, which is effective in reducing file size and maintaining video quality. For audio, the DS-KD8003-IME1(B) has a built-in omnidirectional microphone and a speaker. The audio compression standards are G.711 U and G.711 A, with a bit rate of 64 Kbps. It also includes noise cancellation and echo cancellation functions, ensuring clear audio communication.   The device has a user capacity of 2000 and supports up to 6000 cards, making it suitable for environments with a large number of users. It can be linked to 500 indoor stations and supports up to 16 sub-door stations.   Designed for both flush and surface mounting, the DS-KD8003-IME1(B) offers installation flexibility. It has an IP65 protection level, which ensures durability in outdoor environments. The operating temperature range is from -40° C to 60° C and can operate in humidity from 10% to 95%. Power options include 12 VDC and PoE (IEEE 802.3af) and power consumption is less than 5 W. Specifications: Operating system - Linux ROM - 32 MB RAM - 256MB Processor - Built-in powerful processorVideo parameters Lens - 2 MP HD camera Resolution - 2 MP Field of view - Horizontal: 146°, Vertical: 82° Dynamic Range (WDR) - Support Additional light - Low lighting, IR supplement lighting Video compression standard - H.264Audio parameters Audio input - 1 built-in omnidirectional microphone Audio compression standard - G.711 U/G.711 A Audio output - 1 built-in speaker Audio compression bit rate - 64 Kbps Audio quality - Noise reduction and echo cancellation Volume control - AdjustableCapacity User capacity - 2000 Card capacity - 6000 Capacity linked indoor station - 500 Sub door station capacity - 16Network parameters Network protocol - TCP/IP, RTSPDevice interfaces Alarm input - 4 (standard 2 output buttons and 2 door contacts) Network interface - 1 RJ-45, 10/100 Mbps self-adaptive SABOTAGE - 1 Exit button - 2 (2 for lock control) RS-485 - 1 (1 for Hikvision's sub-module communications) Lock control - 2 relays, Max. 30V DC, 2AGeneral Button - 1 Installation - Surface mounting, flush mounting Weight -- Net weight: 380g- Gross weight: 541 grams Protection level - IP65 Operating temperature - -40°C to 60°C (-40°F to 140°F) Power supply - 12 VDC, 500 mA, IEEE 802.3af, PoE Application environment - Outdoor Power consumption - ≤ 5 W Language -- English, French, Portuguese, Brazilian Portuguese, Spanish, - Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, - Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, - Serbian, Greek, Slovak
